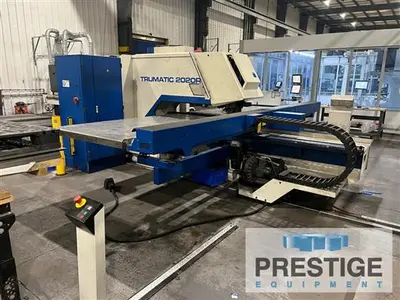

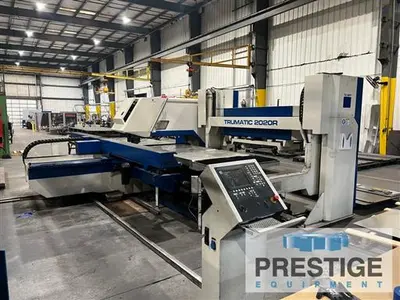

USED 2005 TRUMPF TRUMATIC 2020R

CAPACITY:
Tonnage Capacity: 22 Tons
Maximum Sheet Thickness: 1/4"
Maximum Punch Diameter: 3"
Y-Axis Table Travel: 50"
X-Axis Table Travel: 100"
Maximum Workpiece Weight: 330 Lbs
Maximum Hit Rate: 420 SPM
Maximum Positioning Speed (Y-Axis)..... 2400 IPM: 2400 IPM
Maximum Positioning Speed (X-Axis)..... 3600 IPM: 3600 IPM
Machine Electrics: 460/3/60 35 Amps

Equipped With:
Bosch Type 3 CNC Control
19 Station Tool Changer
SheetMaster Compact Load UnLoad
Remote Start Pedestal

NOTE:
Inspect In Plant Under Power

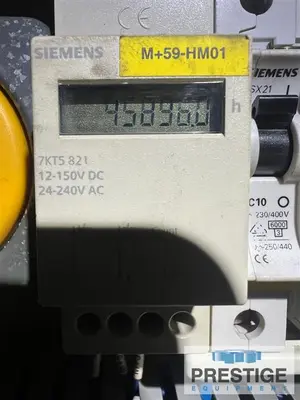

HOURS:
45,896

Features:
Bosch Type 3 CNC Control
19 Station Tool Changer
SheetMaster Compact Load UnLoad
Remote Start Pedestal
