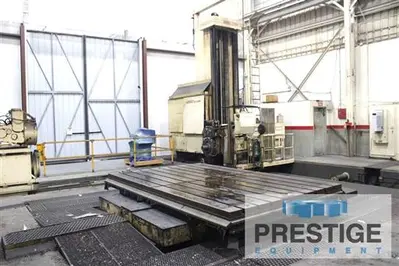

USED 1992 GIDDINGS & LEWIS H70-FX

SPECIFICATIONS:
Spindle Diameter: 7"
Spindle Taper: #50 ANSI B5.50
Automatic Tool Changer: 60 Station
Vertical Headstock Travel, Y-Axis: 144"
Column Travel, X-Axis: 336"
Spindle Travel, Z-Axis: 60"
Spindle Speeds, Variable: 12-1800 RPM
Spindle Motor: 75 HP
Machine Electrics: 460/3/60

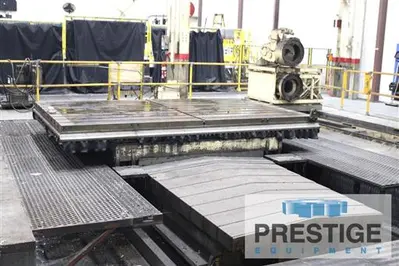

GIDDINGS & LEWIS B-AXIS ROTARY TABLE:
Table Size: 98" x 157"
Table Infeed on Auxiliary Slide: 83"
Table Weight Capacity: 88,000 lbs
Table B-Axis Rotation, Power Milling: .001 degrees
Rotary Table Positioning: 360,000
Shot Pin Locations: (4) 90 degrees

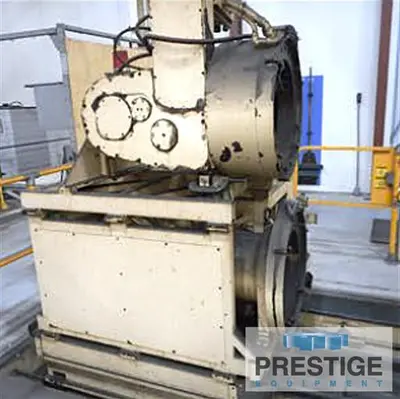

CNC 2-AXIS MILLING ATTACHMENT:
A-Axis Tilt Spindle: +/- 120 Degrees
C-Axis Rotation: +/- 180 Degrees
Spindle Speeds, Max: 1800 RPM
Horse Power Rating of Gearing: 30 HP
Sliding Attachment Storage Rack: For A-Axis

Equipped With:

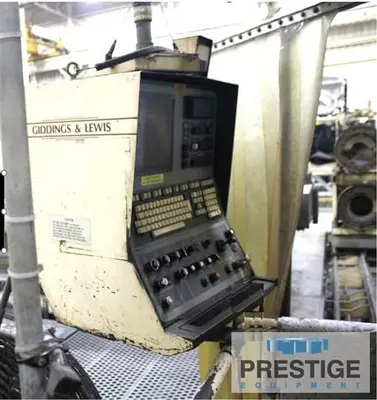

Giddings & Lewis 8000M CNC Control
60-Station Automatic Tool Changer
2-Axis CNC Milling Attachment
Model A Angular Milling Attachment w/42" Reach
98" x 157" B-Axis Rotary table
In-feeding Auxiliary Slide
High Pressure Thru-Spindle Coolant (60 PSI)
External Flood Coolant
Replaceable Hardened Column Ways
Roll-Up Way Covers for X-Axis Ways
Ballscrews on Y & Z Axis
Double Anti-Backlash Rack And Pinion On X Axis
3-Way Column with Hardened Replaceable Ways
Full Length Chip Conveyor
460V, 3-Phase, 60 Cycle

NOTE:
Inspect in Plant Under Power

Features:
Giddings & Lewis 8000M CNC Control
60-Station Automatic Tool Changer
2-Axis CNC Milling Attachment
98" x 157" B-Axis Rotary Table with Power Milling
In-feeding Auxiliary Slide
High Pressure Thru-Spindle Coolant (60 PSI)
