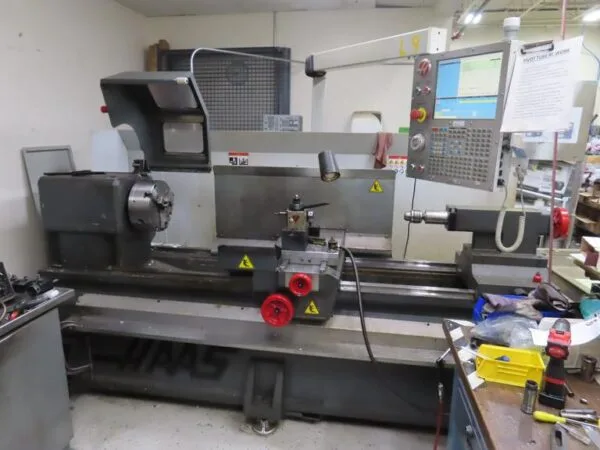

Haas TL-3 CNC Flat-Bed Lathe – 2016

Haas TL3 CNC Tool Room Lathe
Specification:

Control Haas Maincon CNC Control

Chuck Size 12″

Max Swing 20″

Max Swing Over Cross Slide 13″

Max Turning Diameter 20″

Max Between Centers 60″

Max Cutting Length 60″

X-Axis Travel 12″

Z-Axis Travel 60″

Max Spindle Speed 1800 RPM

Spindle Nose A2-6

Rapids X/Z 75 IPM/ 150 IPM

Spindle Drive 18 HP

Spindle Bore 3.50″

Approximate Machine Dimensions: 122.00″L x 87.00″W x 82.00″H

Approximate Weight: 6500.00 lbs.

Haas Maincon CNC Control, 12″ 3-Jaw Manual Chuck, Manual Tailstock (MT5), Rigid Tapping, Quick

Change Tool Post, Coolant Pump Kit, Work Light, Keys, Manuals and Documentation
