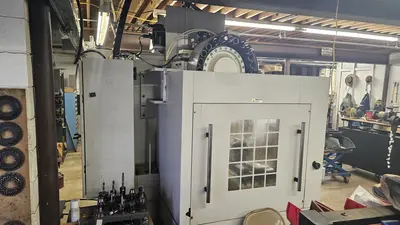

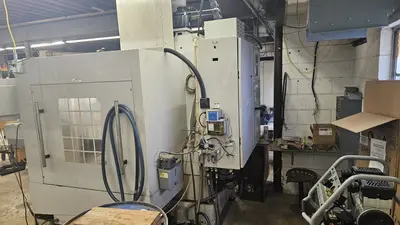

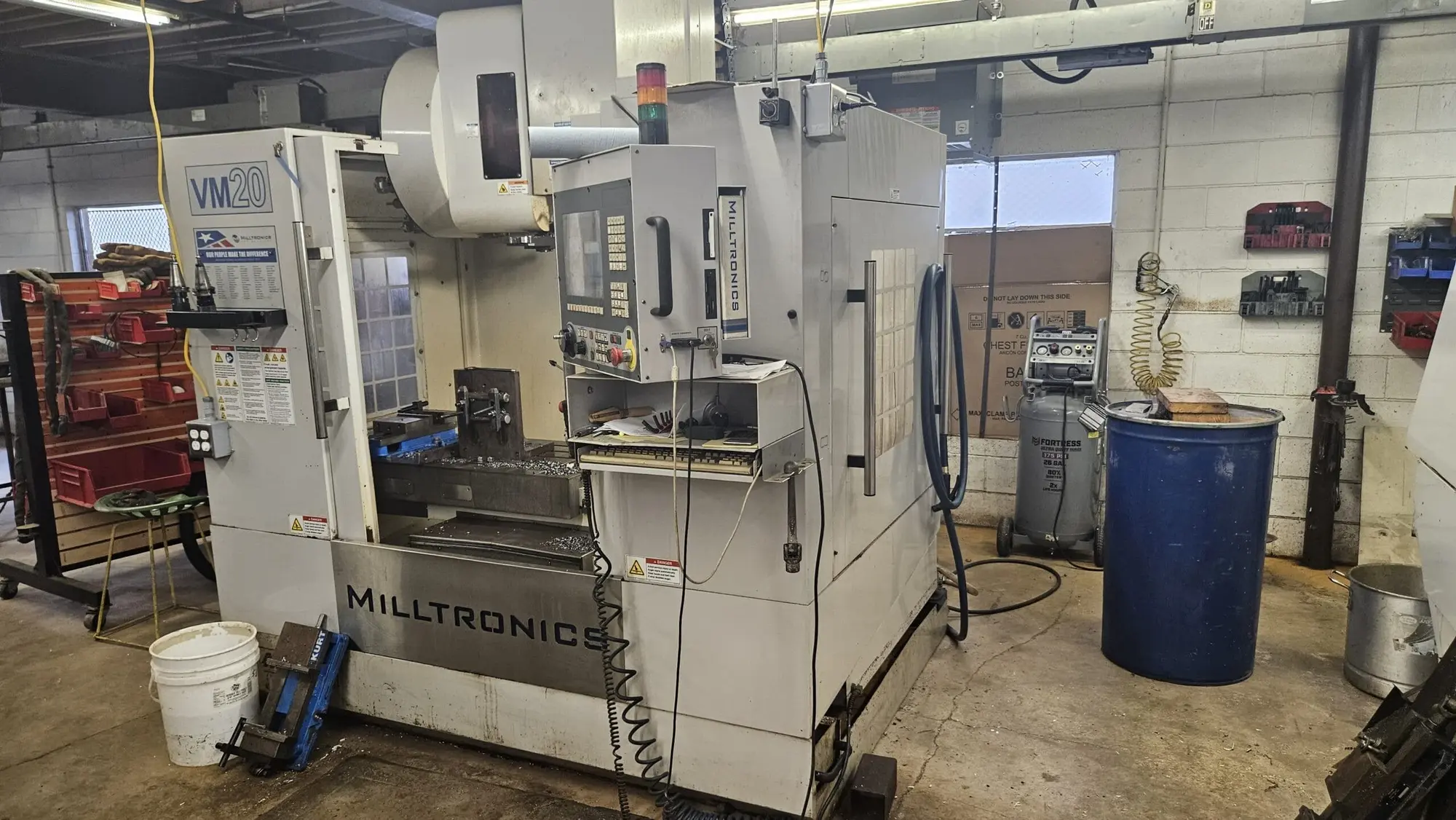

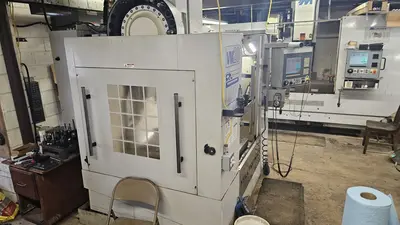

The Milltronics VM20 is a robust 3-axis CNC vertical machining center designed for shops requiring a 40″ × 20″ work envelope and high flexibility. Equipped with an ISO-40 taper spindle capable of up to 8,000 rpm, a 24-station automatic tool changer, and a rigid cast-iron frame with full enclosure, this machine offers precision and production capability. The CNC control system is the Milltronics 8200 series and supports standard G-code programming with advanced features.
The VM20 provides a 40″ (1,016 mm) X-axis travel, 20″ (508 mm) Y-axis travel and 26″ (660 mm) Z-axis travel, with a 34″ × 20″ table size and approximately 2,000 lb (≈ 900 kg) table load capacity. The machine typically includes rapid traverse rates up to 1,000 ipm and a spindle motor rated at 24 hp (17.9 kW). With its combination of size, speed and flexibility, the VM20 is suitable for tooling, prototype work, and moderate volume production.
Features & Options
40″ × 20″ × 26″ travels for medium-sized workpieces
ISO-40 (CAT-40) spindle taper rated up to 8,000 rpm
24-station automatic tool changer for multiple tooling setups
High rapid traverse (up to ~1,000 ipm) for reduced cycle time
Full enclosure and chip conveyor for clean and safe operation
Rigid cast-iron structure for accurate and stable machining
CNC control with advanced programming and memory capabilities
Specifications are typical for the Milltronics VM20. Actual configuration may vary depending on year, build, and options. Always verify with the machine’s nameplate or factory documentation.
Year: 2010
Manufacturer: Milltronics
Model: VM20
Axis Count: 3-Axis (X, Y, Z)
Chuck / Spindle Nose: ISO-40 / CAT-40
Spindle Speed: Up to 8,000 rpm
Spindle Motor: 24 hp
Table Size: 34″ × 20″
X-Axis Travel: 40″
Y-Axis Travel: 20″
Z-Axis Travel: 26″
Tool Capacity: 24-station automatic tool changer

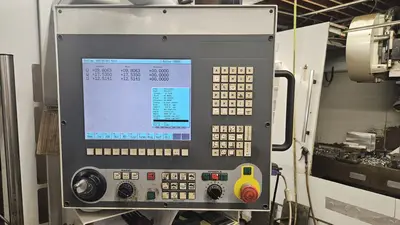

Control System: Milltronics 8200 Series / Centurion 7 CNC
Machine Weight: ~10,000 lb (4,540 kg)
Final Listing Price: Request Quote
