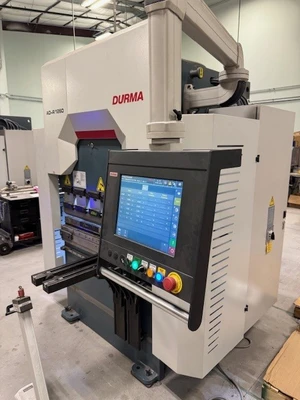

USED 2023 DURMA AD-R 1260

The 2023 Durma AD-R 1260 is a high-performance CNC hydraulic press brake engineered for precision sheet metal forming. With a 66-ton (60 metric ton) bending capacity and 49″ (1,260 mm) bending length, it’s optimized for small to medium-sized parts requiring tight tolerances and repeatable accuracy. Designed with synchronized hydraulic cylinders and linear encoders, the AD-R 1260 ensures even bending pressure across the full width of the machine.
The AD-R series combines a rigid welded steel frame with modern CNC control for dependable long-term accuracy. The integrated Delem DA-58T touchscreen controller provides 2D graphical programming, bend simulation, and automatic backgauge adjustment. With European-style tooling, quick clamping, and a compact footprint, this press brake is an excellent choice for precision fabrication, prototyping, and production shops seeking reliability and speed in everyday bending operations.
Features & Options
Compact 4′ bending length with 66-ton forming capacity
Dual synchronized hydraulic cylinders for precision bending
Delem DA-58T CNC touchscreen control with 2D programming
Automatic backgauge with ball screw drive
European-style quick-change punch and die system
Hardened, precision-ground tooling for long life
Side and rear light curtains for operator safety
Rigid welded frame for high accuracy and durability
Compact design suited for fabrication and job shop use
Specifications are based on the standard 2023 Durma AD-R 1260 configuration. Verify actual details with the machine nameplate or manufacturer documentation.

Manufacturer: Durma
Model: AD-R 1260
Year: 2023
Machine Type: CNC Hydraulic Press Brake
Bending Length: 49″ (1,260 mm)
Bending Force: 66 tons (60 metric tons)
Between Frames: 43″ (1,100 mm)
Throat Depth: 16″ (410 mm)
Stroke Length: 6.3″ (160 mm)
Open Height: 15.7″ (400 mm)
Approach Speed: ~190 ipm (4.8 m/min)
Bending Speed: ~18 ipm (0.5 m/min)
Return Speed: ~197 ipm (5.0 m/min)
Backgauge Range: ~24″ (600 mm)
Control: Delem DA-58T 2D CNC Control
Main Motor Power: 7.5 hp (5.5 kW)
Machine Weight: ~7,700 lb (3,500 kg)
Final Listing Price: Request Quote
