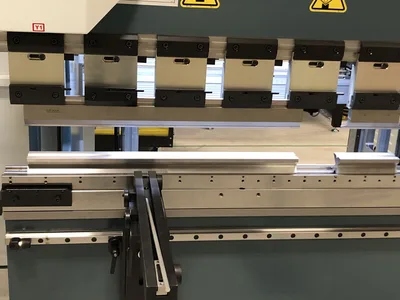

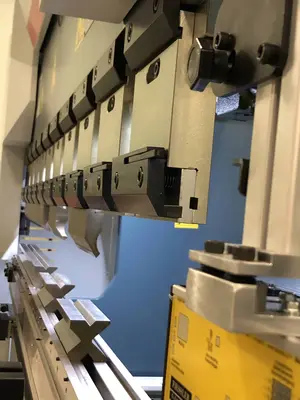

USED 2023 DURMA AD-R 2060

The 2023 Durma AD-R 2060 is a high-precision CNC hydraulic press brake engineered for sheet metal fabrication requiring consistent bending accuracy and efficient operation. With a 66-ton (60 metric ton) forming capacity and 6.5′ (2,060 mm) bending length, the AD-R 2060 combines a compact footprint with robust performance. Designed for small to medium-sized parts, it features synchronized hydraulic cylinders and precision linear encoders to ensure uniform bending across the full working width.
Constructed with a rigid welded steel frame, the Durma AD-R series delivers outstanding repeatability and durability under continuous use. Its Delem DA-58T CNC control provides a user-friendly touch interface for programming multi-bend operations, material compensation, and automatic backgauge positioning. This modern press brake is ideal for job shops, metal fabrication, and production environments needing flexibility, precision, and speed in everyday bending tasks.
Features & Options
High-accuracy synchronized hydraulic cylinders with proportional valve control
6.5′ bending length with 66-ton capacity for small to medium workpieces
Delem DA-58T CNC touch control with 2D graphical programming
Automatic backgauge with ball screw drive for precision positioning
European-style quick-change punch and die system
Hardened precision-ground tooling for consistent results
Side and rear safety light curtains for operator protection
Rigid welded frame ensures accuracy and repeatability
Compact footprint suitable for fabrication and production shops
Specifications are based on standard 2023 Durma AD-R 2060 configuration. Always verify actual specs with factory documentation or machine nameplate.

Manufacturer: Durma
Model: AD-R 2060
Year: 2023
Machine Type: CNC Hydraulic Press Brake
Bending Length: 81″ (2,060 mm)
Bending Force: 66 tons (60 metric tons)
Between Frames: 70″ (1,780 mm)
Throat Depth: 16″ (410 mm)
Stroke Length: 6.3″ (160 mm)
Open Height: 15.7″ (400 mm)
Approach Speed: ~190 ipm (4.8 m/min)
Bending Speed: ~18 ipm (0.5 m/min)
Return Speed: ~197 ipm (5.0 m/min)
Backgauge Range: ~24″ (600 mm)
Control: Delem DA-58T 2D CNC Control
Main Motor Power: 7.5 hp (5.5 kW)
Machine Weight: ~8,800 lb (4,000 kg)
Final Listing Price: Request Quote
