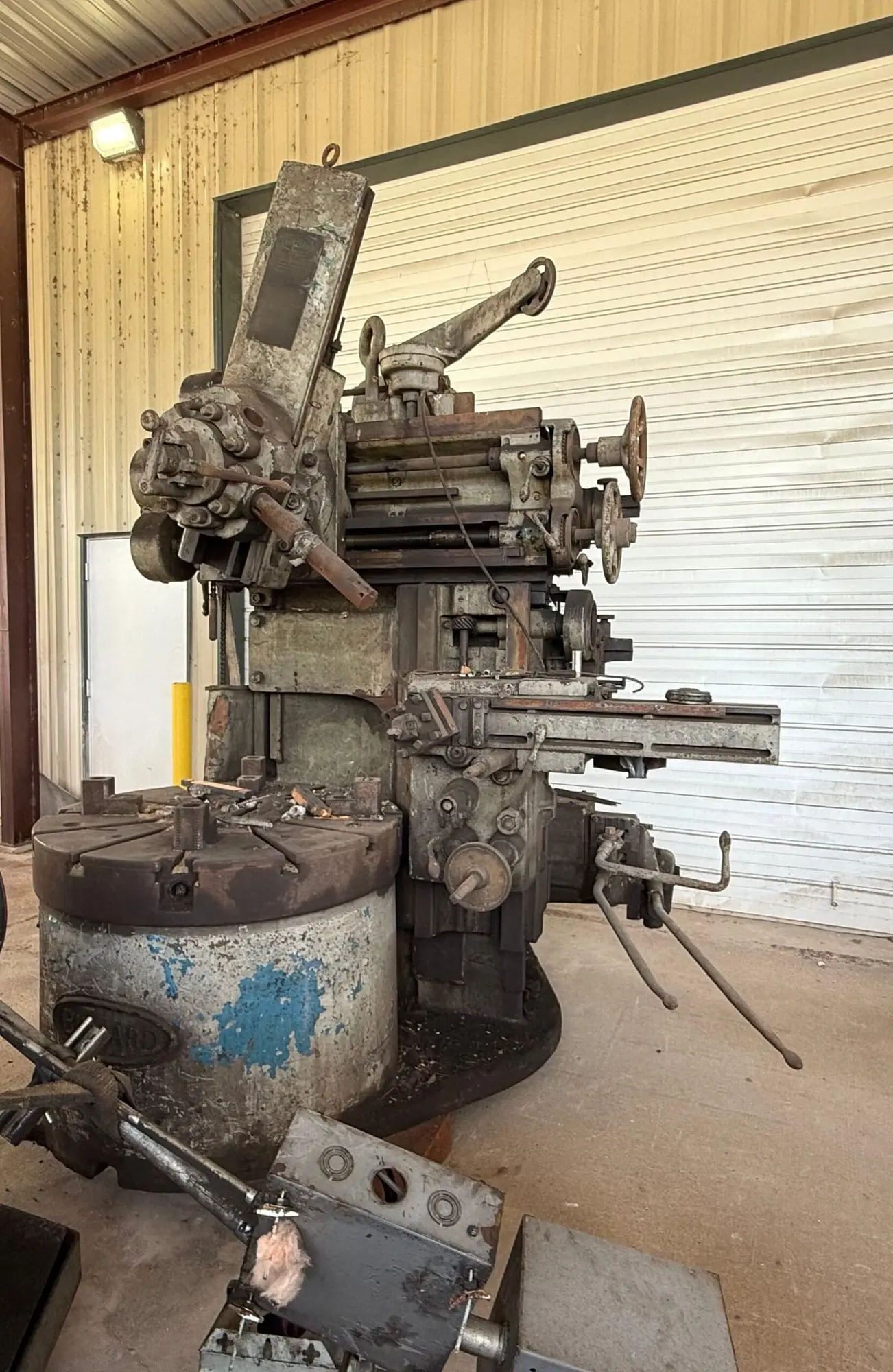

USED 1936 BULLARD CUTMASTER

The 1936 Bullard Cutmaster VTL is an early-generation vertical turret lathe designed for handling large-diameter components in industries such as shipbuilding, energy, and heavy manufacturing. Featuring a 54″ table and 58″ swing, it combines strength and precision with a 5-station turret and side head for versatile operations. Powered by a 30 hp motor with spindle speeds from 4.4 to 160 rpm, this machine was engineered to withstand decades of service. The heavy cast-iron base provides rigidity, while the side head and turret arrangement allow for flexible tooling configurations.
Features & Options
5-station turret for multiple tool setups
Side head for cross machining operations
Heavy cast-iron frame for rigidity
Rapid traverse and power feeds
Large 54″ independent jaw chuck
Manual controls
Coolant system with piping
Requires bearing pit for installation
Specifications may vary by configuration. Verify with manufacturer or machine nameplate.

Year: 1936
Manufacturer: Bullard
Model: Cutmaster
Machine Type: Vertical Turret Lathe (VTL)
Chuck / Table Diameter: 54″
Maximum Swing: 58″
Distance Under Rail: 44″
Main Motor: 30 hp
Spindle Speed Range: 4.4 – 160 rpm
Turret / Tool Stations: 5-station turret
Table Load Capacity: ~26,000 lb
Machine Weight: ~44,000 lb
Final Listing Price: Request Quote
