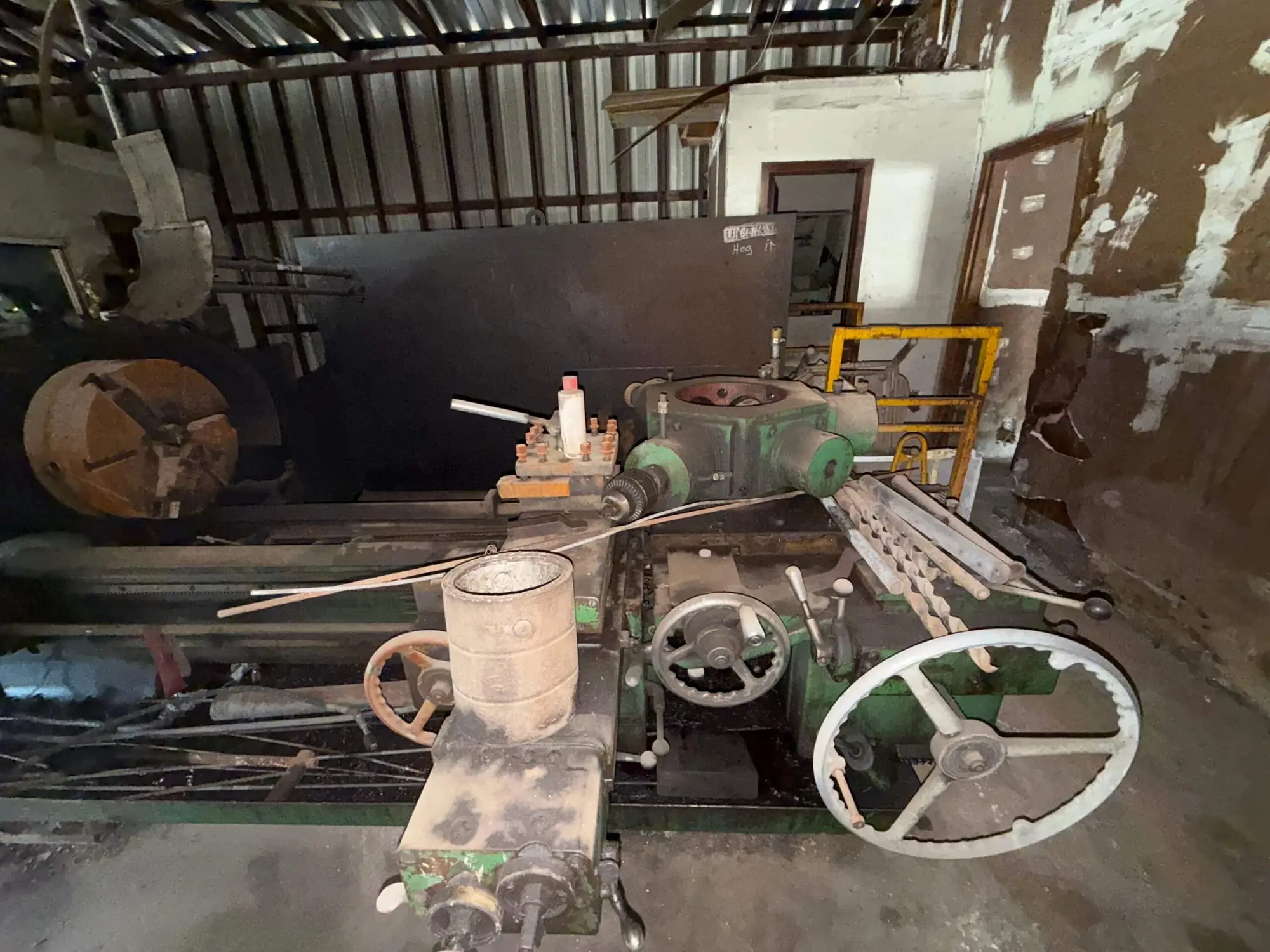

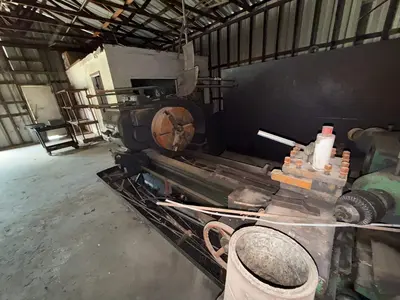

USED WARNER & SWASEY 5A

The Warner & Swasey 5A turret lathe is a robust and proven production lathe designed for heavy-duty metal cutting applications. Built for sustained operation in toolrooms and manufacturing environments, the 5A combines strength, precision, and versatility. Featuring a six-station turret, large through-spindle bore, and a wide speed range, it handles both bar work and chucking operations with efficiency and accuracy.
Known for its cast-iron construction and massive headstock, the Warner & Swasey 5A provides exceptional rigidity for large-diameter and deep-hole turning. Its mechanical speed control and feed gearbox offer repeatable operation across a wide range of materials. The 5A’s straightforward design and rugged components make it a shop favorite for maintenance, repair, and production work.
Features & Options
Six-position turret for multi-tool turning operations
Heavy-duty cast-iron base and headstock for stability
Large spindle bore for bar or shaft work
Mechanical variable-speed drive system
Power longitudinal and cross feed with thread cutting
Ideal for repetitive production turning and facing
Reliable, low-maintenance mechanical construction
Optional collet chuck, steady rest, or tracer attachment
Specifications are typical for Warner & Swasey 5A models. Actual details may vary by year or configuration. Always verify with the machine’s nameplate or manual.

Manufacturer: Warner & Swasey
Model: 5A
Machine Type: Manual Turret Lathe
Swing Over Bed: 28″
Swing Over Cross Slide: 18″
Distance Between Centers: ~36″
Spindle Bore: 3.0″
Spindle Nose: Warner & Swasey Type “A”
Spindle Speeds: Variable, approx. 25–1,200 rpm
Motor Power: 15 hp
Turret Stations: 6-position manual turret
Feed Range: Power longitudinal & cross feed (gear-driven)
Machine Weight: ~9,000 lb
Final Listing Price: Request Quote
