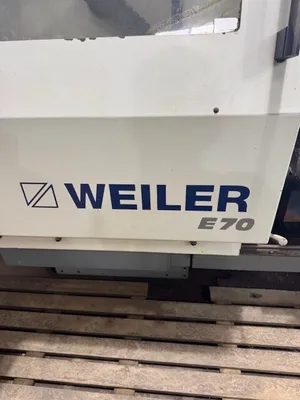

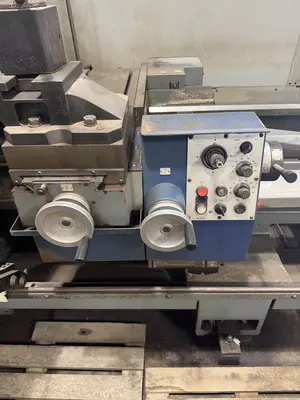

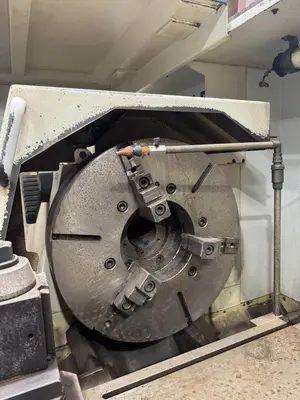

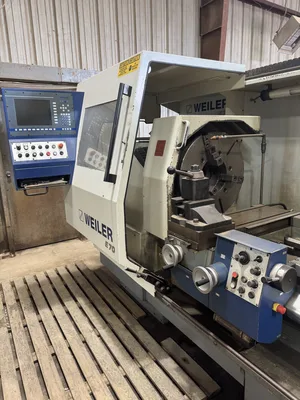

The 2008 Weiler E70 is a heavy-duty CNC precision lathe built for large workpieces requiring tight tolerances and superior surface finishes. With a swing over bed of 27.5″ (700 mm) and 120″ (3,000 mm) between centers, the E70 combines massive cutting capacity with the precision and control of Weiler’s German engineering. Its slant-bed design and hardened guideways ensure smooth operation and vibration-free machining under heavy loads.
The machine is powered by a robust 40 hpspindle motor delivering speeds up to 1,600 rpm through a precision gearbox. Equipped with a Fanuc or Siemens CNC control, it provides easy programming, repeatability, and efficient setup for both small runs and full production cycles. The E70’s programmable tailstock, powerful spindle, and wide carriage make it ideal for industries like energy, oilfield, and heavy machinery manufacturing.
Features & Options
27.5″ swing with 120″ between centers for large workpieces
High-rigidity cast-iron construction for vibration-free machining
6.5″ spindle bore with up to 1,600 rpm
40 hp spindle drive for heavy-duty cuts
Fanuc or Siemens CNC control for ease of operation
Programmable tailstock for long part support
Hardened and ground guideways for accuracy and longevity
Ideal for oilfield, energy, and heavy manufacturing applications
Specifications are based on typical 2008 Weiler E70 configurations. Always confirm with the machine’s nameplate or factory documentation.
Year: 2008
Manufacturer: Weiler
Model: E70
Machine Type: CNC Precision Lathe
Swing Over Bed: 27.5″ (700 mm)
Swing Over Cross Slide: 15.7″ (400 mm)
Distance Between Centers: 78.4″ (2,000 mm)
X-Axis Travel: 14″ (360 mm)
Z-Axis Travel: 120″ (3,000 mm)
Spindle Bore: 6.5″ (165 mm)
Spindle Speed: Up to 1,600 rpm
Spindle Motor: ~40 hp
Tailstock Quill Diameter / Travel: 7.0″ / 10″ (180 / 250 mm)
Control: Fanuc
Machine Dimensions: ~260″ × 100″ × 95″
Machine Weight: ~28,000 lb (12,700 kg)
Final Listing Price: Request Quote
