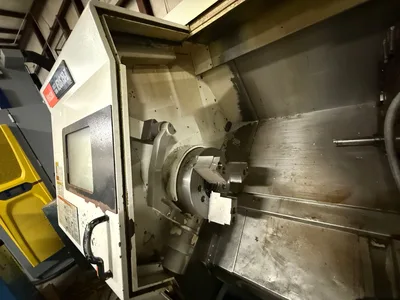

USED MAZAK QUICK TURN NEXUS 350-II

The Mazak Quick Turn Nexus 350-II (QTN 350-II) is a powerful, large-capacity CNC turning center engineered for productivity and accuracy. Built with Mazak’s slant-bed construction and Mazatrol CNC control, it delivers high torque and rigidity for precision turning of large workpieces. The QTN 350-II offers a maximum swing of 27.95″, a machining diameter of 16.14″, and a turning length of 60″ . Its high-output 40 hp spindle motor and 3,300 rpm spindle speed provide strong performance across a wide range of materials.
This model supports bar work up to 4.0″ through the spindle, and features a 12-position turret for fast tool indexing. The Mazatrol CNC control simplifies programming and setup, while optional tailstock, chip conveyor, and tool probe enhance versatility for production environments. Designed for durability and precision, the QTN 350-II is a proven choice for job shops and production lines handling medium-to-heavy workpieces.
Features & Options
Heavy-duty slant-bed design for stability and precision
14″ hydraulic chuck with 4.0″ bar capacity
40 hp spindle motor, 3,300 rpm maximum
12-position turret for flexible tooling
Mazatrol conversational CNC control for easy setup
Optional programmable tailstock and tool setter
Chip conveyor and coolant system
Ideal for large-diameter or long-part production
Specifications may vary by configuration. Always confirm with Mazak nameplate or factory documentation.

Manufacturer: Mazak
Model: Quick Turn Nexus 350-II
Machine Type: CNC Turning Center
Max Swing: 27.95″
Max Cutting Diameter: 16.14″
Max Cutting Length: 60″
Chuck Size: 14″
Bar Capacity: 4.0″
Spindle Nose: A2-8
Spindle Speed: 3,300 rpm
Spindle Motor: 40 hp
Turret Stations: 12
X-Axis Travel: 10.43″
Z-Axis Travel: 60.04″

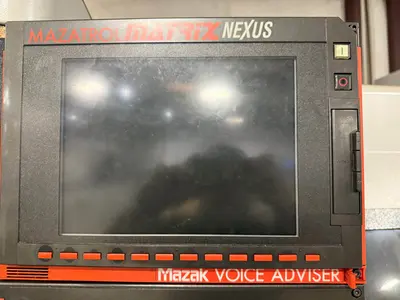

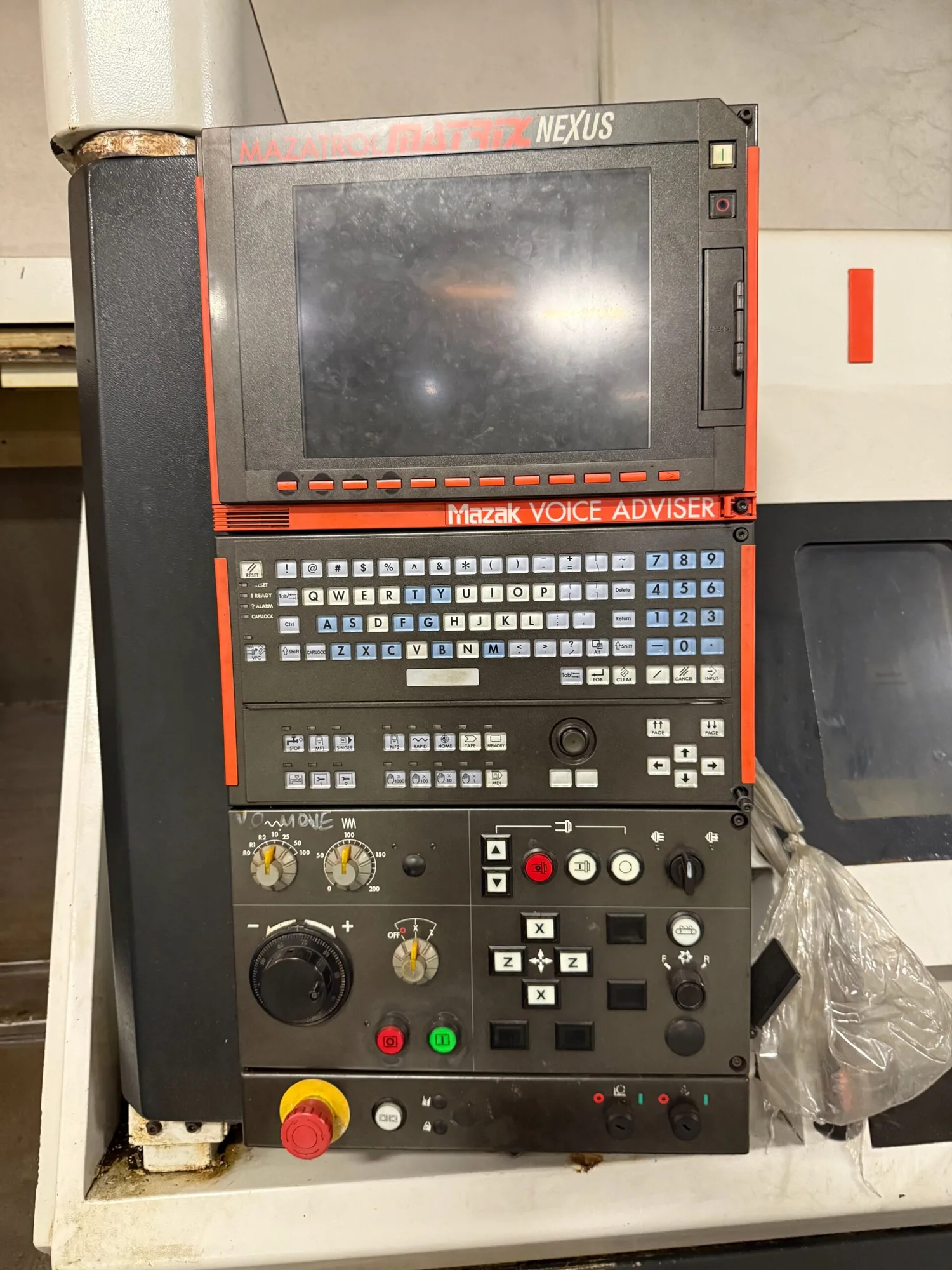

Control: Mazatrol CNC Control
Machine Weight: ~17,500 lb
Final Listing Price: Request Quote
