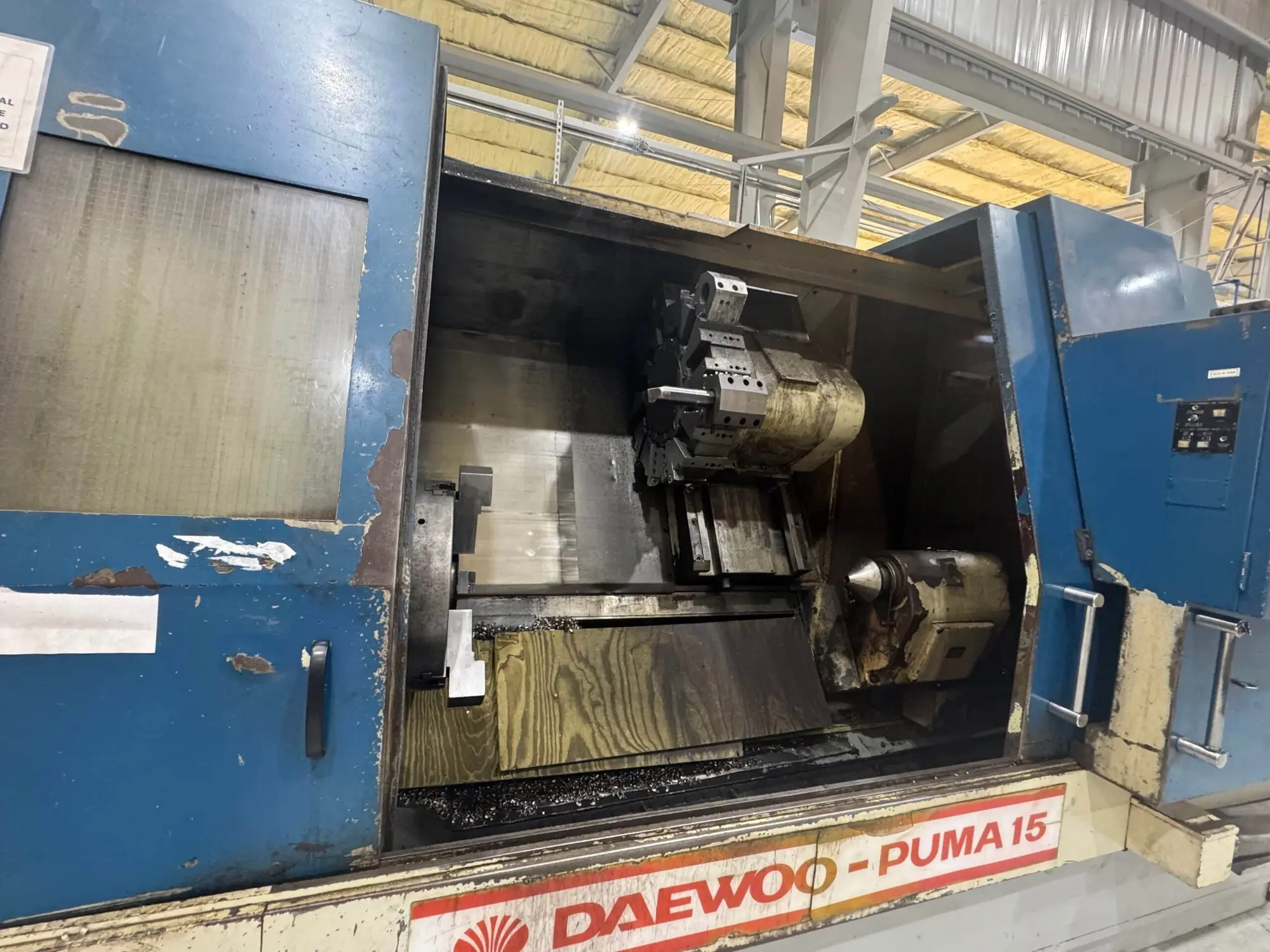

USED DAEWOO PUMA 15

The Daewoo Puma 15 is a proven slant-bed CNC lathe designed for small to medium-sized part production. With a swing of 17.7″ over bed, a max cutting diameter of 9.8″, and a 20″ max cutting length, it provides an efficient balance between capacity and compact footprint. Its 20 hp spindle motor delivers speeds up to 3,500 rpm, while the 10-station turret supports versatile setups. Equipped with a Fanuc CNC control, hydraulic chuck, and programmable tailstock, the Puma 15 is built for precision, speed, and repeatability in production environments.
Features & Options
17.7″ swing with 20″ cutting length capacity
20 hp spindle motor, 3,500 rpm
8″ hydraulic chuck, 2.0″ bar capacity
10-station turret for flexible tooling setups
Rigid slant-bed construction for accuracy
Fanuc CNC control for dependable performance
Hydraulic tailstock with quill feed
Chip conveyor and coolant system
Compact footprint for shop versatility
Specifications may vary depending on year and configuration. Always confirm with Daewoo nameplate or factory build sheet.

Manufacturer: Daewoo
Model: Puma 15
Machine Type: CNC Turning Center
Swing Over Bed: 17.7″
Swing Over Cross Slide: 11.8″
Max Cutting Diameter: 9.8″
Max Cutting Length: 20″
Bar Capacity: 2.0″
Chuck Size: 8″ hydraulic
Spindle Nose: A2-6
Spindle Speed: Up to 3,500 rpm
Spindle Motor: 20 hp
Turret Stations: 10
X-Axis Travel: 7.9″
Z-Axis Travel: 20″
Tailstock Quill Diameter / Stroke: 3.9″ / 4.7″
Control: Fanuc CNC
Machine Dimensions: ~110″ × 65″ × 65″
Machine Weight: ~11,000 lb
Final Listing Price: Request Quote
