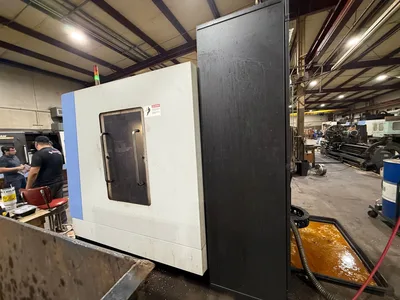

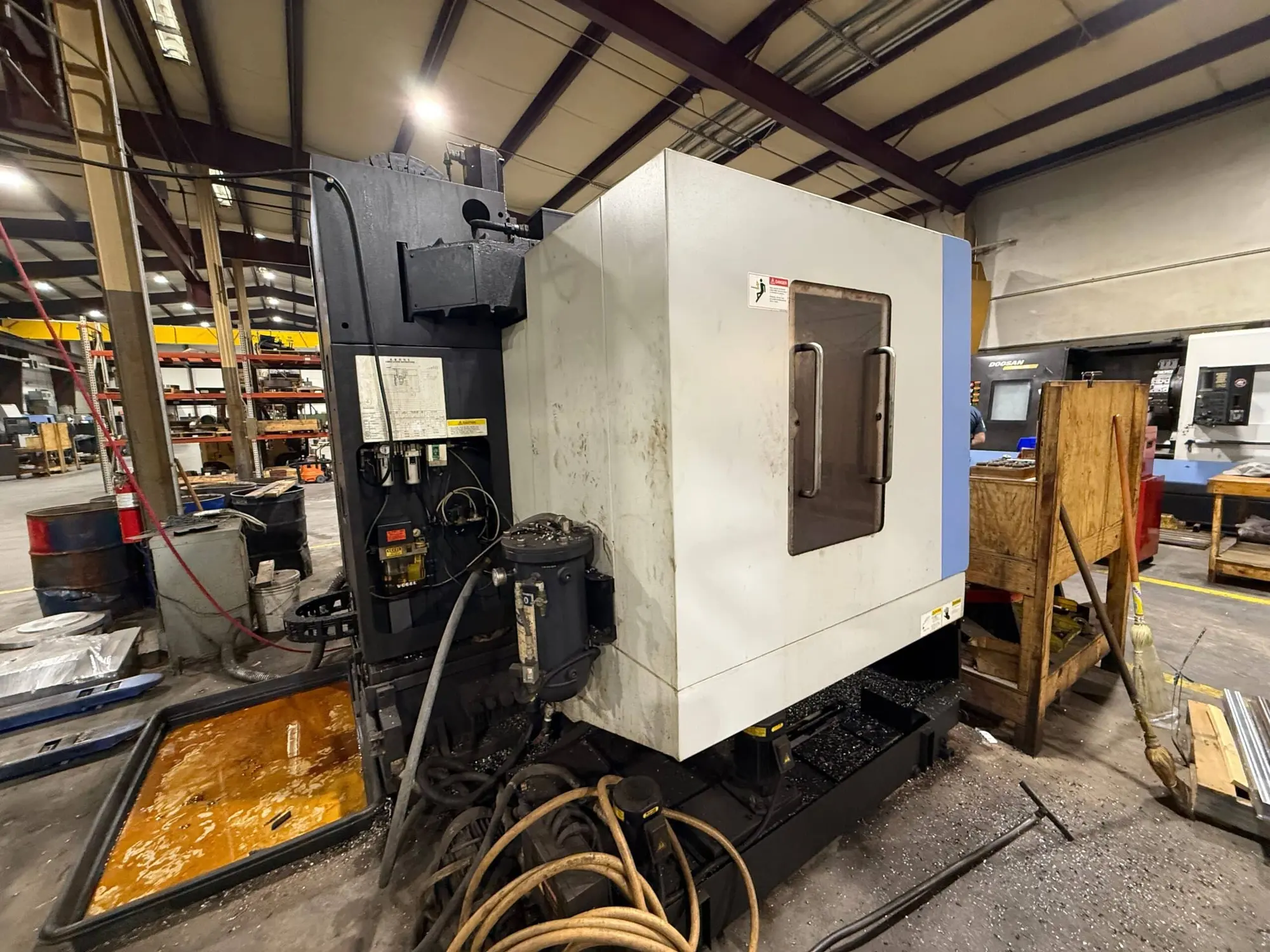

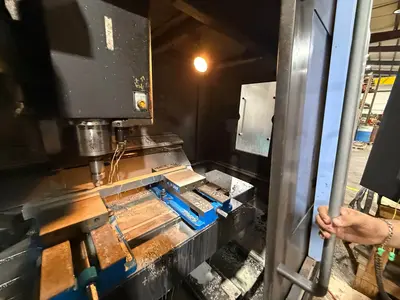

USED 2008 DOOSAN MV-4020D

This MV-4020D delivers precision, rigidity, and speed. Equipped with thru-spindle coolant, high rapid traverse rates, and a large capacity tool changer, it is ready for medium to large scale parts. Below are typical specifications for units of this model.
Features & Options

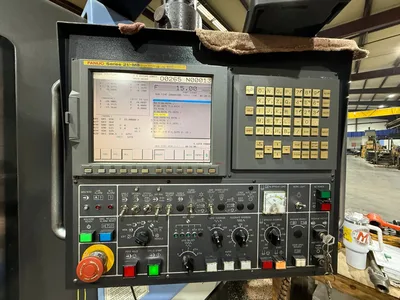

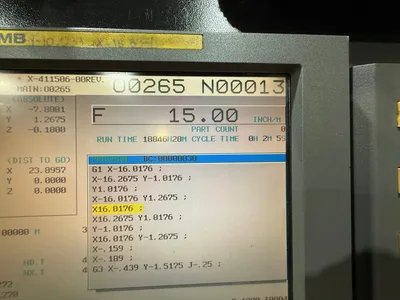

Fanuc 21i-MB CNC control
Through-spindle coolant with ~290 PSI capacity
12,000 RPM high-speed spindle

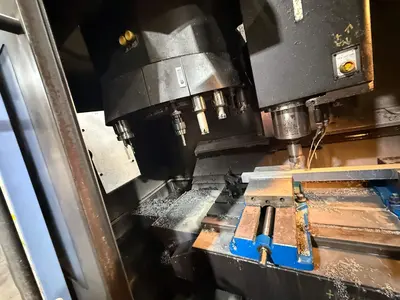

Large capacity tool changer (24 tools)
Rapid traverse rates up to ~1,181 IPM in X and Y; ~945 IPM in Z
Rigid design with heavy table capacity (~1,760 lbs)
Work ready with chip conveyor, coolant tank, and necessary fixtures
Specifications may vary by configuration. Verify with manufacturer or inspect the actual machine.
::contentReference[oaicite:0]{index=0}

Year: 2008
Model: MV-4020D
Manufacturer: Doosan
Machine Type: Vertical Machining Center
X Travel: 40.2″
Y Travel: 21.1″
Z Travel: 24.6″
Table Size: 47.2″ × 19.7″
Max Table Load: 1,764 lbs
Spindle Taper: CAT-40
Spindle Speed: 12,000 RPM
Main Spindle Motor Power: 20 HP
Tool Changer Capacity: 24 tools
Coolant Thru Spindle: Yes
CNC Control: Fanuc 21i-MB
Rapid Traverse Rates (X/Y/Z): 1,181 / 1,181 / 945 IPM
Spindle Nose to Table (Min – Max): ~5.9″ – ~30.5″
Spindle Center to Column: ~20.5″
Machine Weight: ~16,000 lbs
Overall Dimensions: ~130″ × 105″ × 110″ high
Final Listing Price: Request Quote
