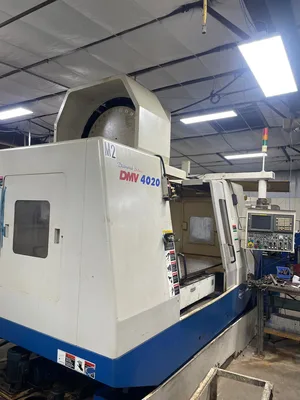

USED 2006 DAEWOO DMV 4020

The 2006 Daewoo DMV 4020 is a high-performance vertical machining center built for precision, rigidity, and productivity. Featuring travels of 40″ × 20″ × 20″, a 25 hp spindle motor, and a 20-tool automatic tool changer, it is ideal for a wide range of milling applications. Equipped with an 8,000 rpm CAT-40 spindle and Fanuc CNC control, the DMV 4020 delivers accuracy, repeatability, and reliability in demanding machining operations.
Features & Options
40″ × 20″ × 20″ travel capacity
CAT-40 8,000 rpm spindle
25 hp spindle motor
20-tool automatic tool changer
Fanuc CNC control
High-speed rapid traverse at 945 ipm
Heavy-duty table with 1,760 lb capacity
Rigid construction for high accuracy

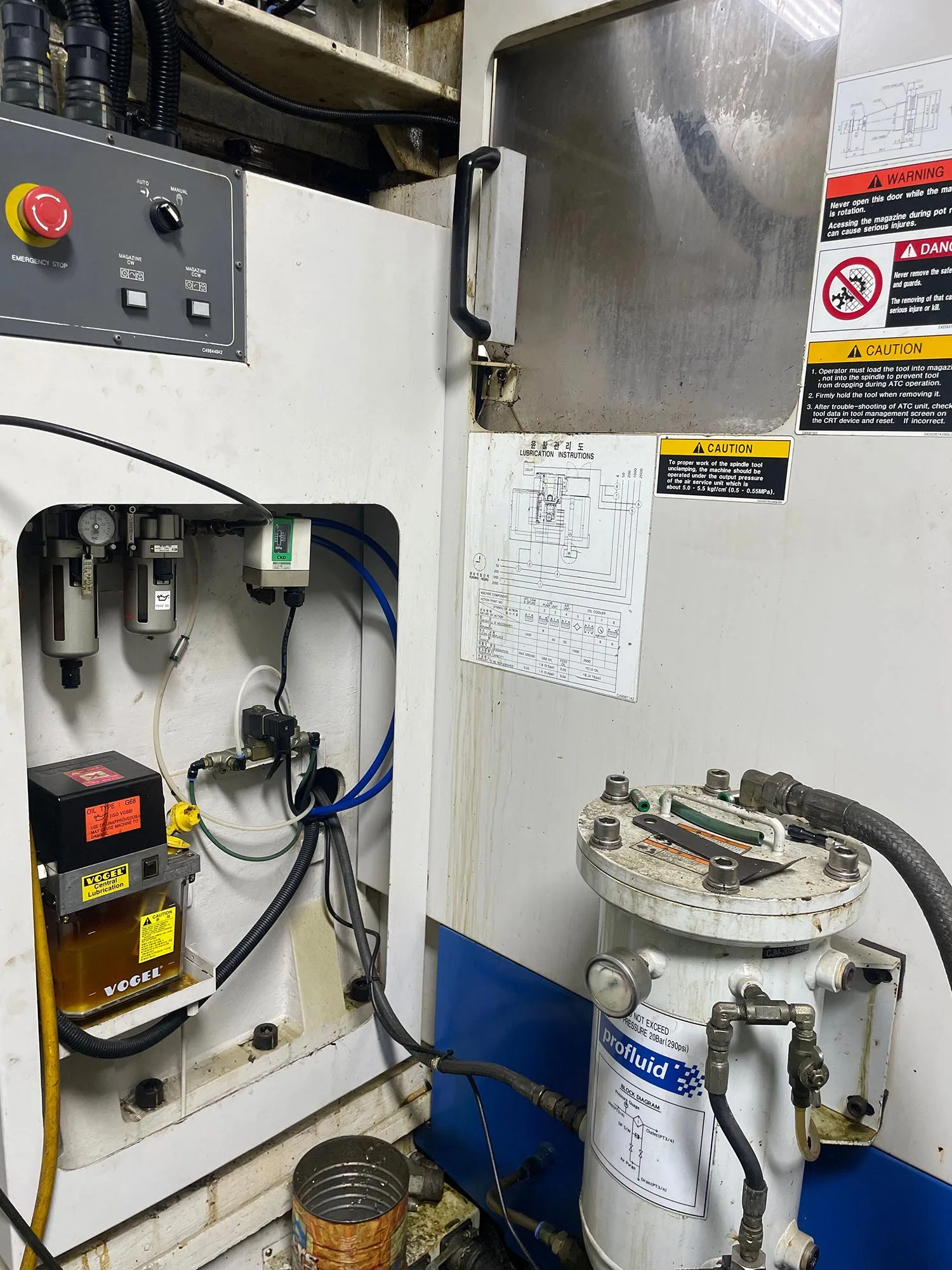

Chip auger and coolant system (if equipped)
Specifications may vary depending on machine configuration. Verify with Daewoo nameplate or manual.

Year: 2006
Manufacturer: Daewoo
Model: DMV 4020
Machine Type: Vertical Machining Center
X-Axis Travel: 40″
Y-Axis Travel: 20″
Z-Axis Travel: 20″
Table Size: 47″ × 20″
Table Load Capacity: 1,760 lb
Spindle Speed: 8,000 rpm
Spindle Taper: CAT-40
Spindle Motor: 25 hp
Tool Changer: 20 ATC
Rapid Traverse (X/Y/Z): 945 ipm
Control: Fanuc CNC
Machine Dimensions: ~116″ × 98″ × 100″
Machine Weight: ~14,300 lb
Final Listing Price: Request Quote
