USED 1942 BULLARD CUTMASTER

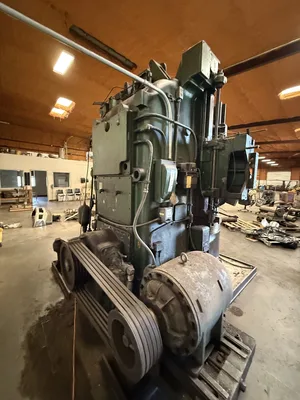

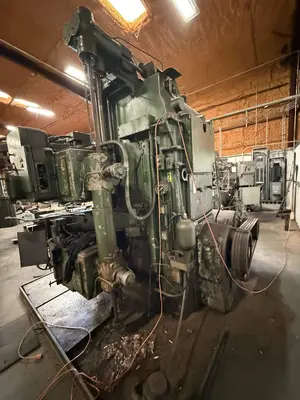

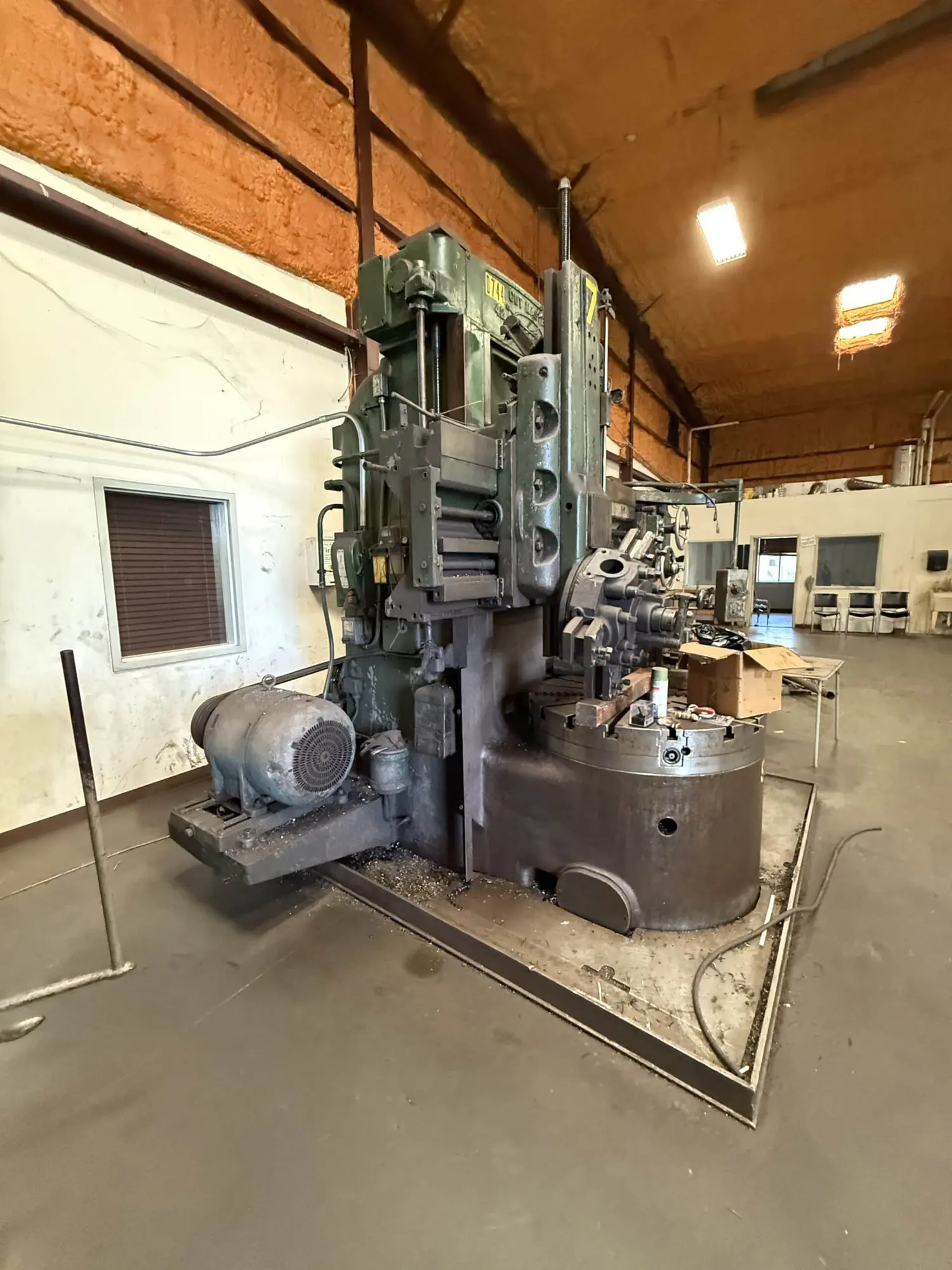

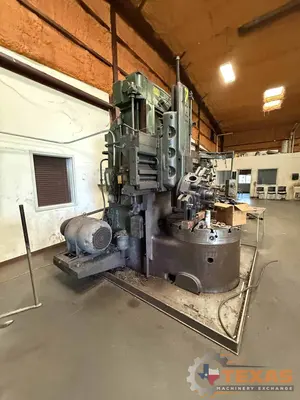

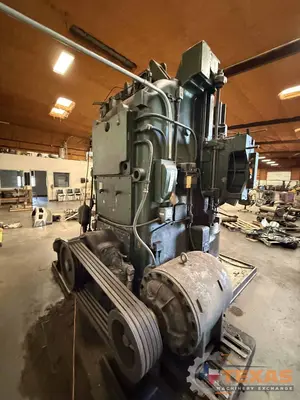

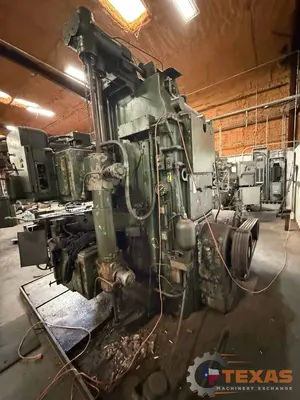

The 1942 Bullard Cutmaster VTL is a robust vertical turret lathe built for heavy industry applications such as energy, aerospace, and large-scale manufacturing. With a 54″ table, 58″ maximum swing, and a 30 hp motor, it is capable of handling large, heavy parts with precision. Its 5-station turret and side head provide flexibility for multiple tooling operations, while the cast-iron frame and stable base ensure rigidity and accuracy. This machine is a classic example of American manufacturing strength and remains a trusted solution for heavy turning work.
Features & Options
5-station vertical turret for multiple tooling setups
Side head for cross machining
Rapid traverse and power feeds
Large 54″ independent jaw chuck
2-axis DRO retrofit (common on rebuilt machines)
Heavy cast-iron construction for stability
Coolant system with pump and piping
Bearing pit required for installation
Specifications may vary by configuration. Verify with manufacturer or machine nameplate.

Year: 1942
Manufacturer: Bullard
Model: Cutmaster
Machine Type: Vertical Turret Lathe (VTL)
Chuck / Table Diameter: 54″
Maximum Swing: 58″
Distance Under Rail: 44″
Main Motor: 30 hp
Spindle Speed Range: 4.4 – 160 rpm
Turret / Tool Stations: 5-station turret
Table Load Capacity: ~26,000 lb
Machine Weight: ~44,000 lb
Final Listing Price: Request Quote
