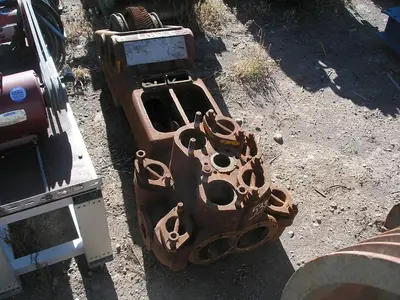

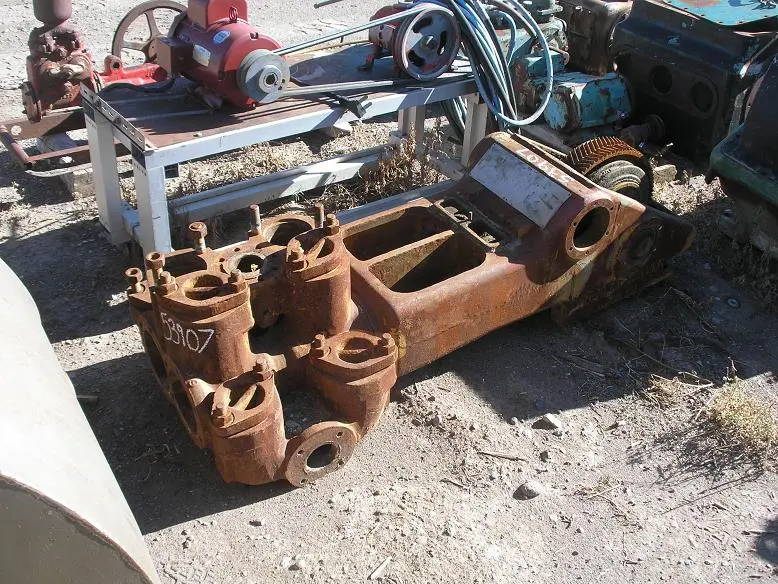

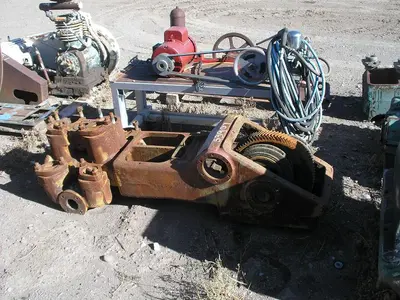

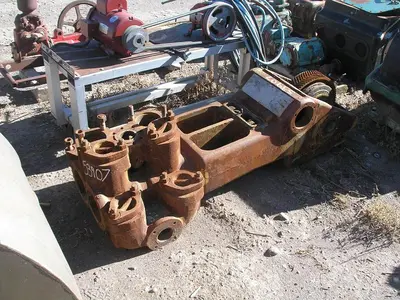

Used Gardner Denver FF-FXF duplex production pump with the following features:
• 5" stroke
• 19 HP
• Ductile iron fluid end
• capable of 149 gpm @ 197 psi with 4 1/2" pistons or 43 gpm @ 639 psi with 2 1/2" pistons
• 2.5" 125# NPT suction connection
• 2" 300# NPT discharge connection
• Weight 1,495 lbs
• Dims (67.4”L x 30.1”W x 13.5” H)
Applications: Mud Pump, Oil Transfer Pump, Oil & Gas Pipeline Pump, Production Pump, Oil Well Drilling Pump, Gas Well Drilling Pump, Water Well Drilling Pump, Barge Loading Pump, Loading Arm Pump, Midstream Pipeline Pump, Oil Pipeline Pump, Gas Pipeline Pump, Mainline Booster Pump, Gathering Pump
HP: 19
RPM: 110
PSI: 197
GPM: 149
Ratio: 4.8800
BPD: 5109
BPD: 5109
BPH: 212.9
BPM: 3.55
L/SEC: 9.4
L/MIN: 564
M3/SEC: 0.0094
M3/HR: 33.84
M3/DAY: 812
