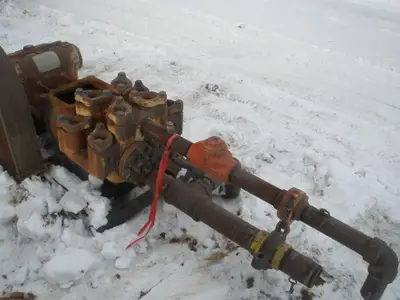

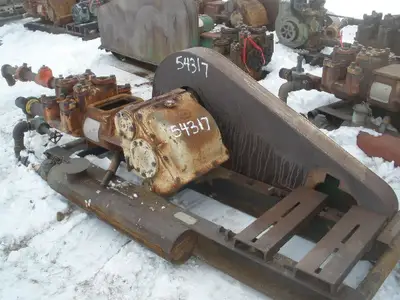

Used Wheatley 333 duplex pump with the following features:
• 3" stroke
• 10 HP
• Ductile iron fluid end
• Capable of 14 gpm @ 1000 psi @ 129 psi with 1 3/2" pistons or 43 gpm @ 340 psi @ 124 rpm with 3" pistons
• 2.5" NPT suction connection
• 2" NPT discharge connection
• 6.857 gear ratio
• 3 x 3 skid mounted, complete pump with belt guard
• Weight 700 lbs
• Dims
Applications: Mud Pump, Oil Transfer Pump, Oil & Gas Pipeline Pump, Production Pump, Oil Well Drilling Pump, Gas Well Drilling Pump, Water Well Drilling Pump, Barge Loading Pump, Loading Arm Pump, Midstream Pipeline Pump, Oil Pipeline Pump, Gas Pipeline Pump, Mainline Booster Pump, Gathering Pump
HP: 10
RPM: 125
PSI: 340
GPM: 43
Ratio: 6.8570
BPD: 1474
BPD: 1474
BPH: 61.4
BPM: 1.02
L/SEC: 2.71
L/MIN: 163
M3/SEC: 0.0027
M3/HR: 9.77
M3/DAY: 234
