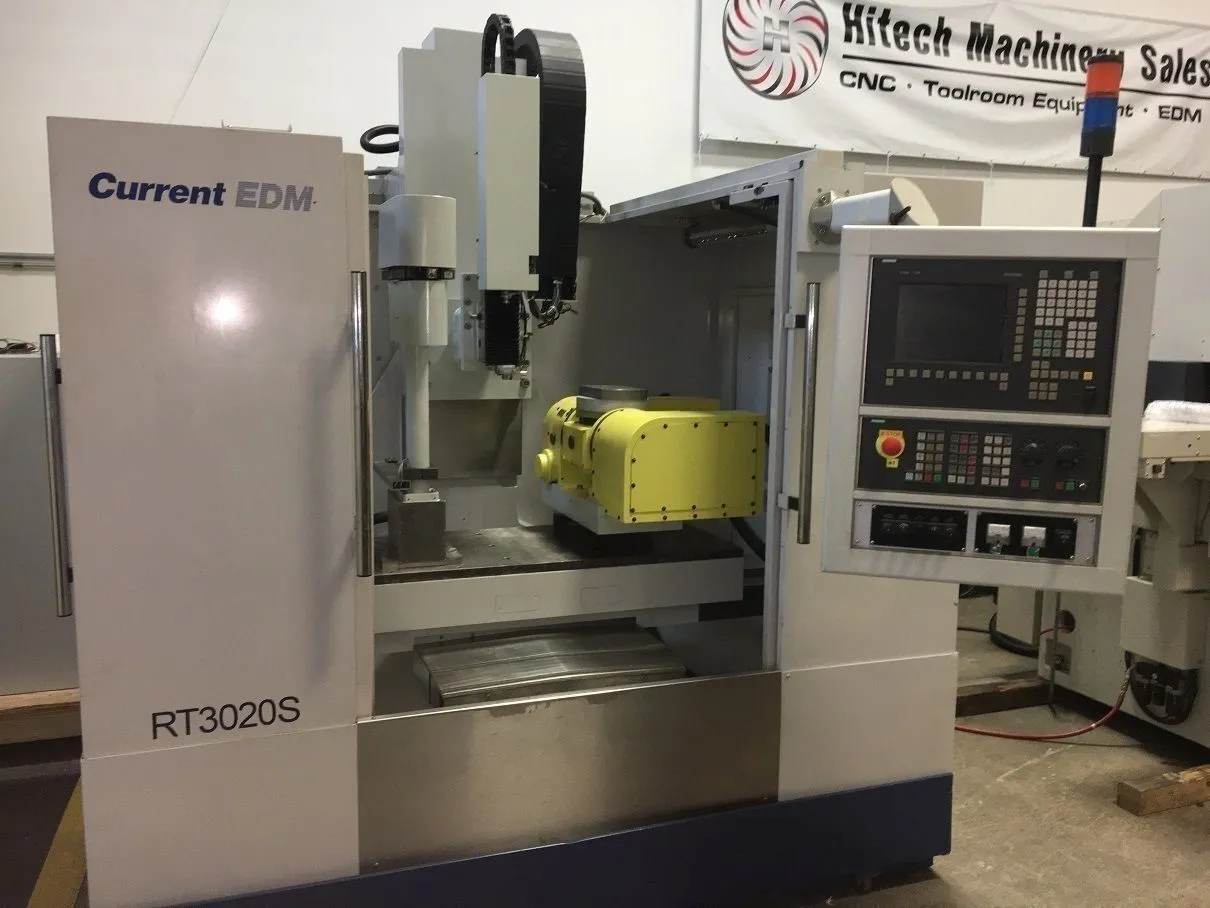

Current EDM manufactures the finest EDM hole drillers in the world. Used in applications such as aerospace, medical, aircraft and automotive, they are known for excellent build quality combined with the best in EDM technology to drill in the most demanding applications.
| Hole-Dia. (Min) | 0.004" | 0.1016 mm |
| Hole-Dia. (Max) | 0.256" | 6.5024 mm |
X-Axis Travel 30"
Y-Axis Travel 20"
Z-Axis Travel 16"
G-Axis Travel (Guide) 22"
Table Dimensions 45" x 20"
Table Resolution 0.0000390"
Max. Workpiece Weight 1,000 lbs
Rotary Table Faceplate 8" Dia.
Rotary Table Max Weight Capacity 220 lbs
Machining Amps 57 Peak
Auto Electrode Changer 24 Positions
Max. Flo Rate 1.0 Gal/min
Electrode Diameter Range w/o AEC .004" - .256"
Electrode Diameter Range w/AEC .012" - .120"
Max. Electrode Length 17.7"
Min. Electrode Length 2.75"
Electrical Requirement 208VAC, 3 Phase, 50/60Hz
Machine Dimensions 90" x 69" x 100"H
Machine Weight 9,000 lbs
Control/Power Supply Dimensions 32" x 40" x 76" H
Control/Power Supply Weight 875 lbs
Dielectric System Dimensions 62" x 36" x 71" H
Dielectric System Weight 320 lbs

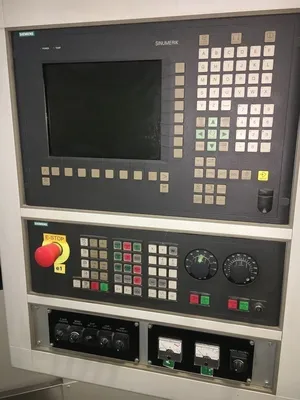

* Siemens 840DI CNC Controller

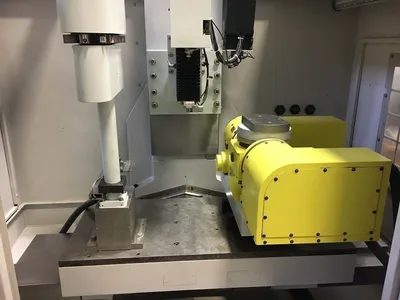

* Nikken 5AX-200II 4th & 5th Axis Rotary Table
* Programmable Guide Axis-Programmable Height Adjustment of Spindle
* AEC 24 Position Automatic Electrode Changer
* Full Machine Tool Guarding
* Stainless Steel Riser Support for Rotary Table
* High Pressure Flushing Pump

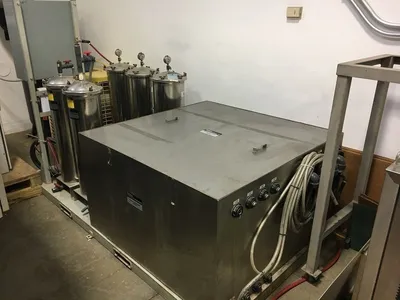

* Ebbco 200 Gallon Water Dielectric Unit
* Ozone Generator
* Auxillary Dielectric Tank

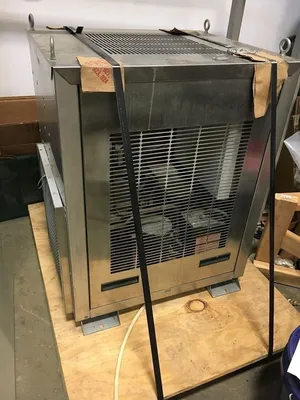

* Electric Chiller
* All Available Manuals and Accessories
