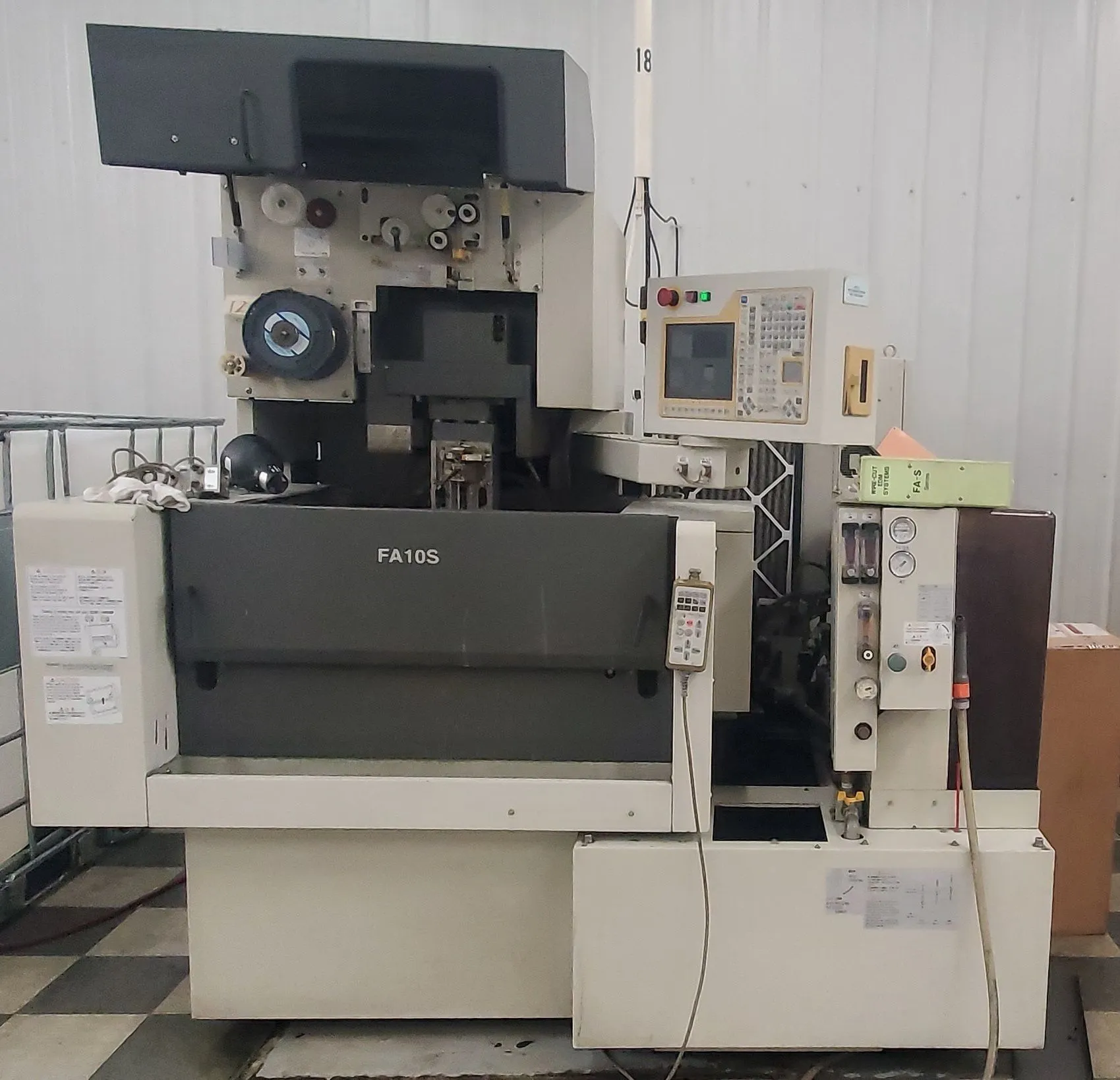

USED 2005 MITSUBISHI EDM FA10S
Overview
The FA Series showcases Mitsubishi's continuous dedication to high precision. Die machining has never been as simple as it is now, with the FA Series' anti-electrolysis technology. Power Master makes parts with varying thicknesses and shapes faster and easier, saving up to 50% machining time over previous models.
Specs
Machining Stroke ( X x Y x Z ) 13.8" x 9.8" x 8.6"
Table Size 23.2" x 20.2"
Maximum Workpiece Size 31.5" x 23.6" x 8.5"
Maximum Workpiece Weight 1,105 lbs
Machining Stroke (U x V) ą1.25" x ą1.25"
Taper Capacity +-30 deg max / +-15deg @ 4"
Wire Diameter Range Possible 0.004"~0.012"
Wire Guides Included .012"
Min Hole Diameter for Autothread .020"
Max Wire Spool Size 22 lbs
Filter Tank Capacity 116 gal
Machine Shipping Dimensions 62" x 66" x 76"H
Machine Weight 4,400 lbs
Overall Dimensions 78" x 82" x 81"H
Overall Shipping Weight 5,544 lbs
Equipped With

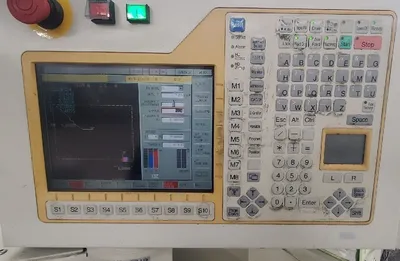

* Mitsubishi 64 Bit PC Based CNC Control
* Submerged Machining Capability
* Automatic Wire Threader (AT)
* Automatic Fluid Level Control
* Auto-Lock Vertical Tank Door Mechanism
* Full 4-Sided Work Table
* Color CRT With 3D Graphics
* Power Master Control (Automatically Adjusts Power Settings)
* Inverter Controlled Flushing
* Advanced Pendant Control
* Fine-Grain Dianite Casting Material
* Moving Column Design
* Auto Lube System
* Wire Chopper

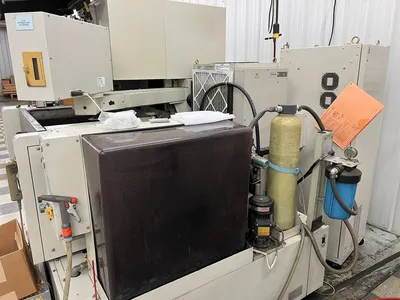

* Filtration System
* Electric Chiller
System:
* Direct Drive 25mm Ball Screws
* Linear Motion Guide Ways
* Dual feedback with Glass Scales (X&Y)
* Fine Resolution Encoder Feedback
* AC Servo Drives
* All Available Manuals, Disks, and Accessories
