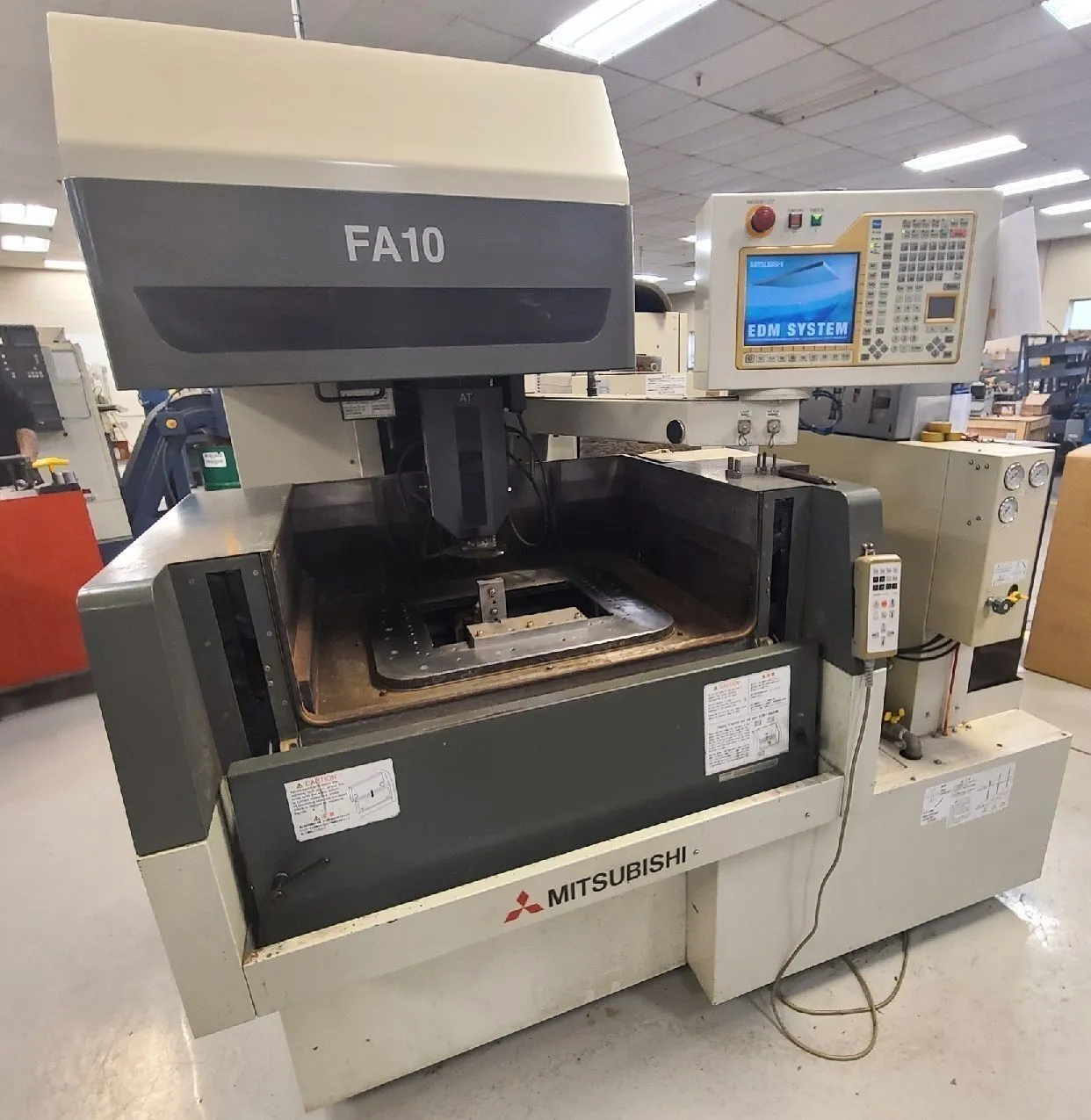

The FA Series showcases Mitsubishi's continuous dedication to high precision. Die machining has never been as simple as it is now, with the FA Series' anti-electrolysis technology. Power Master makes parts with varying thicknesses and shapes faster and easier, saving up to 50% machining time over previous models.
| Auto Threading (Yes/No) | 'Yes' | 'Yes' |
| Submerged (Yes/No) | 'Yes' | 'Yes' |
Machining Stroke (X x Y x Z) 13.8" x 9.8" x 8.6"
Table Size 23.2" x 20.2"
Maximum Workpiece Size 31.5" x 23.6" x 8.5"
Maximum Workpiece Weight 1,105 lbs
Machining Stroke (U x V) 1.25" x 1.25"
Taper Capacity +-30 deg max / +-15deg @ 4"
Wire Diameter Range Possible 0.006"~ 0.012"
Wire Guides Included .010"
Min Hole Diameter for Autothread .020"
Max Wire Spool Size 22 lbs
Filter Tank Capacity 116 gal
Approximate Overall Dimensions 77.7" x 81.6" x 80.71"
Approximate Machine Weight 4,400 lbs

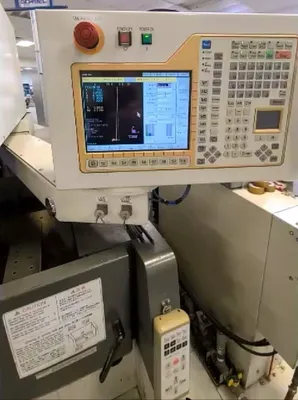

* Mitsubishi 64 Bit PC Based CNC Control
* Submerged Machining Capability

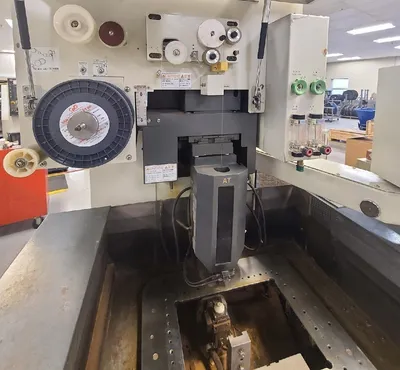

* Automatic Wire Threader (AT)
* Wire Chopper
* Automatic Fluid Level Control
* Auto-Lock Vertical Tank Door Mechanism
* Full 4-Sided Work Table
* Color CRT With 3D Graphics
* Power Master Control (Automatically Adjusts Power Settings)
* Standard Hand Pendant Control
* Fine-Grain Dianite Casting Material
* Moving Column Design
* Auto Lube System
* Filtration System
* Electric Chiller
System:
* Direct Drive 25mm Ball Screws
* Linear Motion Guide Ways
* AC Servo Drives
* Fine Resolution Encoder Feedback
* All Available Manuals and Accessories
