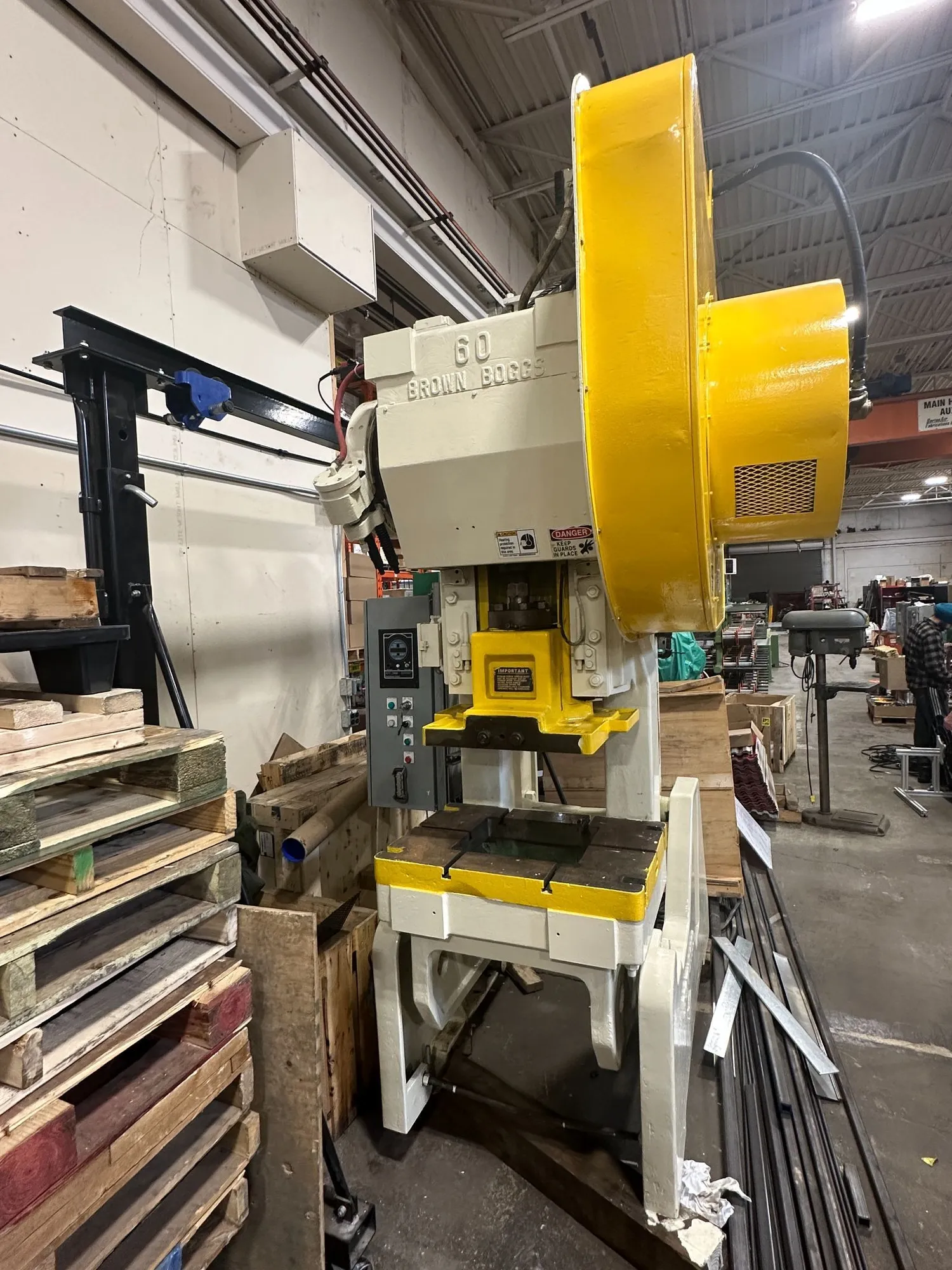

USED BROWN & BOGGS 60

BROWN & BOGGS 60 TON PRESS WITH WINTRISS WPC 2000

BRAND:BROWN & BOGGS
MODEL: 60
S/N: 84225

POWER: 575V 60HZ 3PH

TOTAL HP: 5 HP
TONNAGE: 60T
STROKE : 5
SHUT HEIGHT: 9.5
ADJUSTMENT: 3
BED AREA L-R, F-B: 32 X 22.5
RAM AREA L-R, F-B: 21 X 16
STROKES/MIN: 90
BRAKE AIR PRESSURE: 80
CLUTCH AIR PRESSURE: 80

CLUTCH/BRAKE CONTROL: WINTRISS WPC 2000
MODEL NO. 22-112
SERIAL NO. 22112-1
SUPPLY VOLTAGE: 600 VAC 60HZ 3PH
CONTROL VOLTAGE: 110VAC/24VDC
SHORT CIRCUIT RATING: 5KA
FULL LOAD AMPS: 7.5A

WEIGHT: 12500 LBS
MACHINE DIMENSIONS: 61'' X 86'' X 130''
