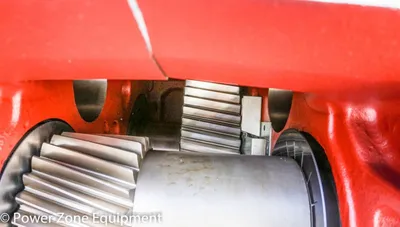

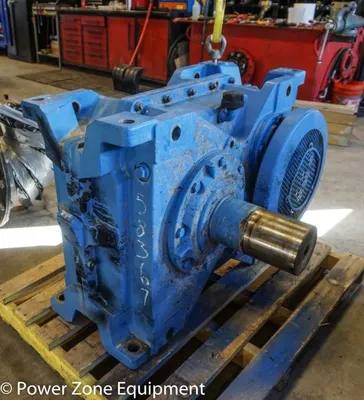

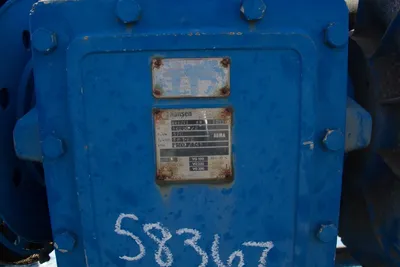

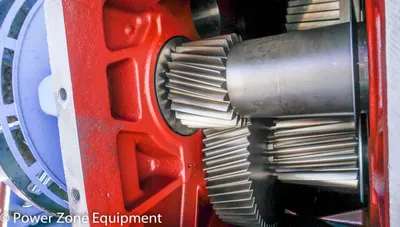

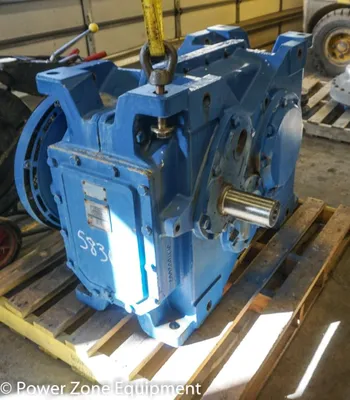

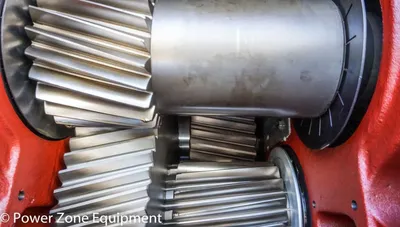

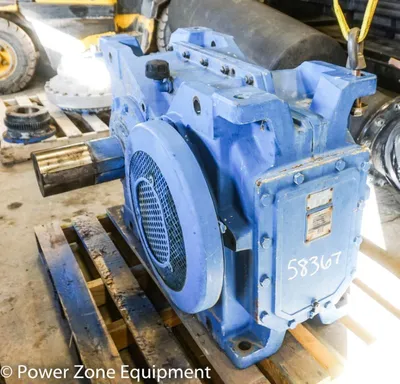

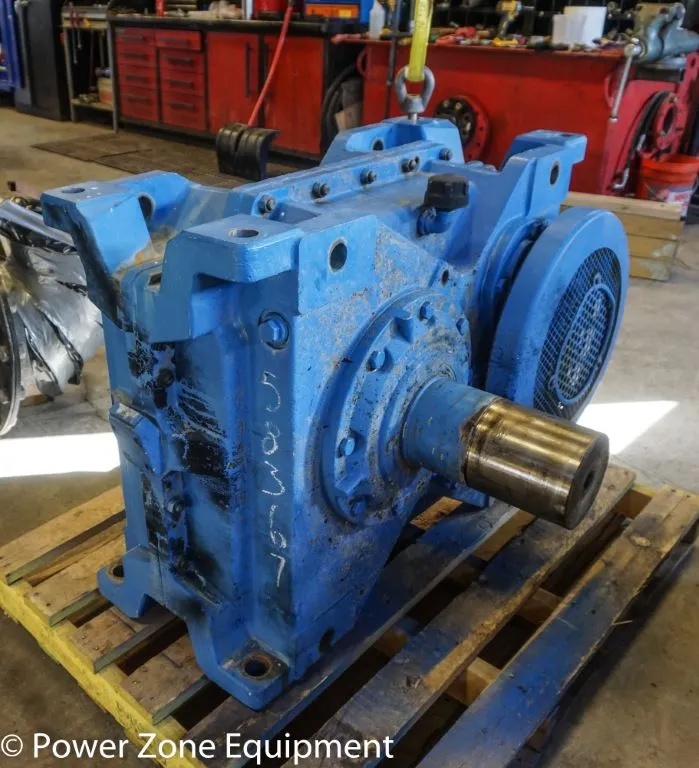

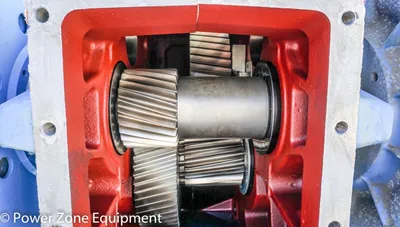

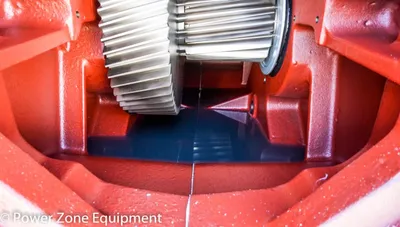

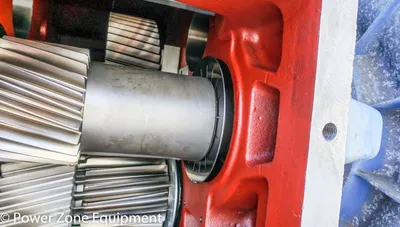

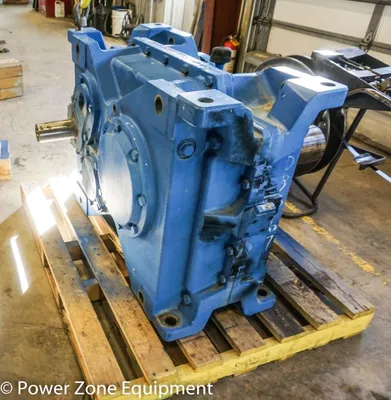

Used Hansen RNF21F parallel shaft gear reducer gearbox with following features:
• 764 HP Service Rating
• 10.3:1 Ratio
• 1500 Input Speed
• 145 Output Speed
• 1.62 Service Factor
• Weight 2320 lbs
• Dims 42"Lx48"Wx38"H
The dimensions are below.
Front to back mounting bolts is 35” center bolt hole to center bolt hole.
Across mounting bolts is 14” center bolt hole to center bolt hole.
Center of shaft to center of shaft is 17 ½”.
Bottom of gear box to center of shafts is 17 ½” high.
Input shaft diameter is 3 1/8”
Output shaft diameter is 5 ½”
Length of shafts approximately 9 ¼” long. Will not know the exact length until the couplings are removed from the gearbox which we will do if you purchase it.

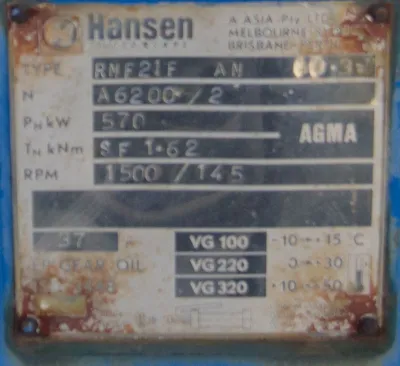

HP: 764
RPM: 1500/145
KW: 570
Ratio: 10.3000
