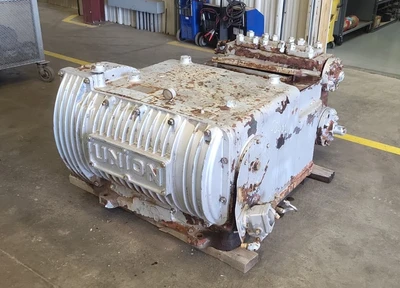

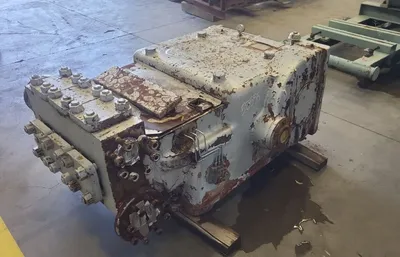

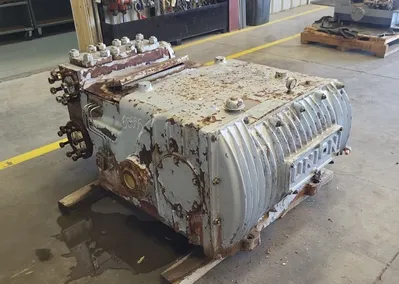

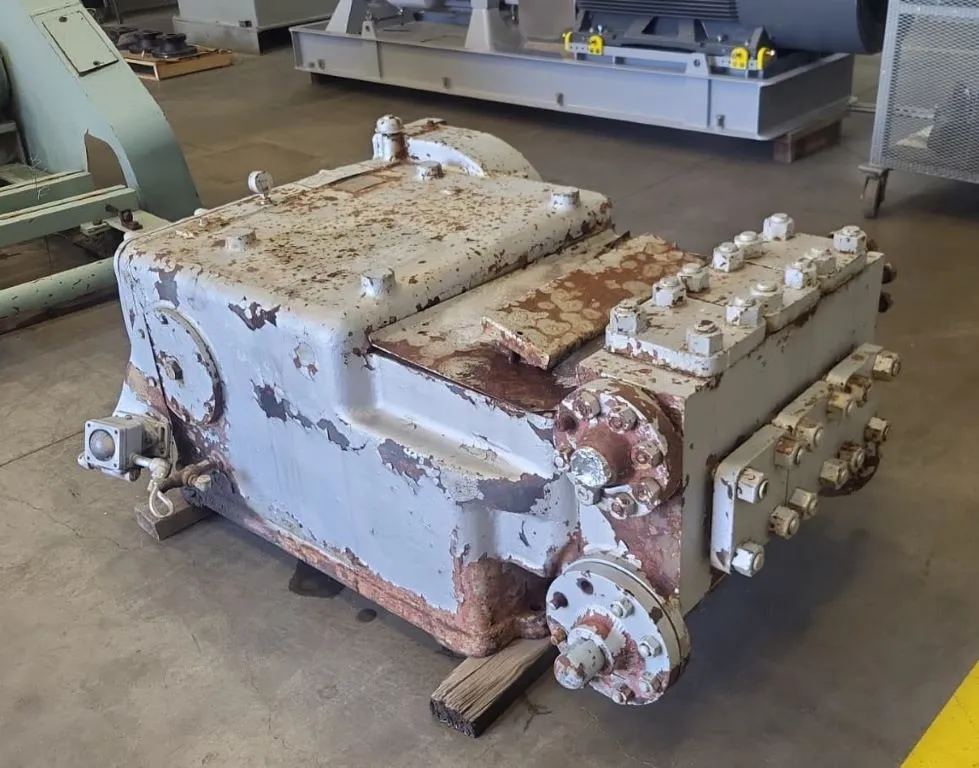

Used Union TX-125 triplex pump with the following features:
• 5" stroke
• 125 HP

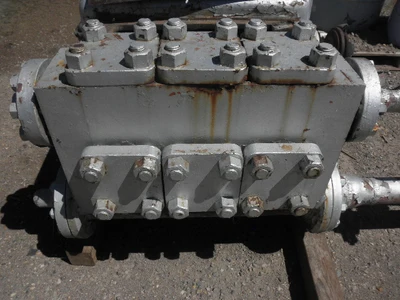

• Steel billet #3 fluid end
• 3" tungsten plungers
• 4"600# RF suction connection
• 2"1500# RF discharge connection
• Weight 5,600 lbs
• Dims 64"L x 55"W x 29"H
Applications: Well Service Pump, Water Transfer Pump, Production Pump, Mud Pump, Kill Truck Pump, Lift Station Pump, Condensate Pump, Cooling Tower Pump, Geothermal Pump, Gathering Pump
HP: 125
RPM: 303
PSI: 1415
GPM: 139
Ratio: 8.2000
BPD: 4766
BPD: 4766
BPH: 198.6
BPM: 3.31
L/SEC: 8.77
L/MIN: 526
M3/SEC: 0.0088
M3/HR: 31.57
M3/DAY: 758
