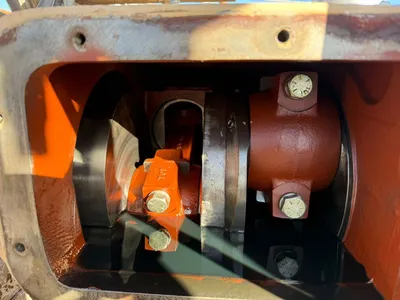

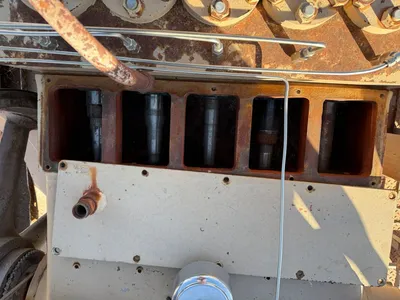

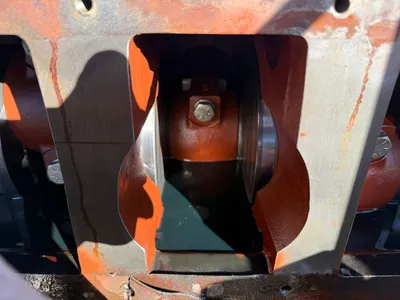

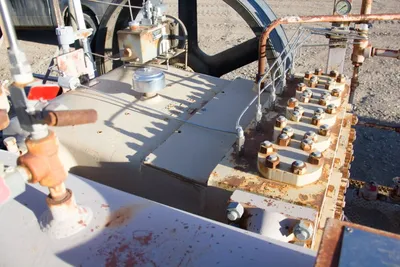

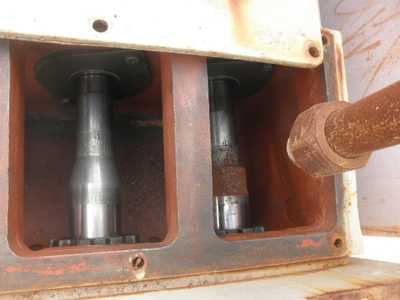

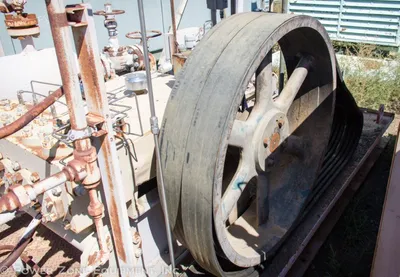

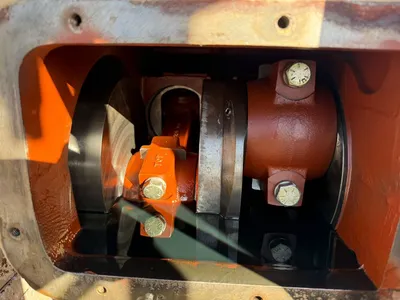

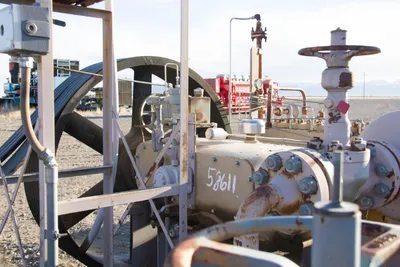

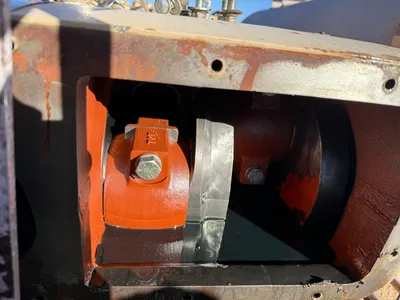

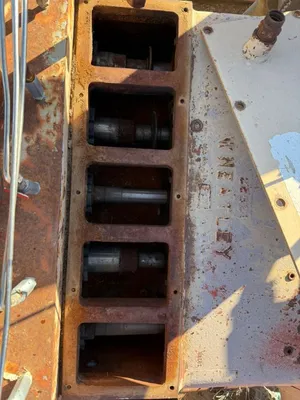

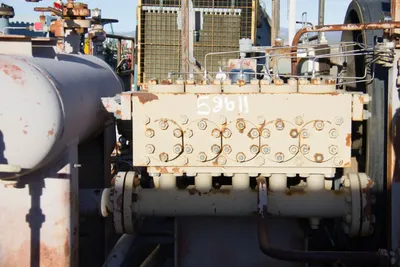

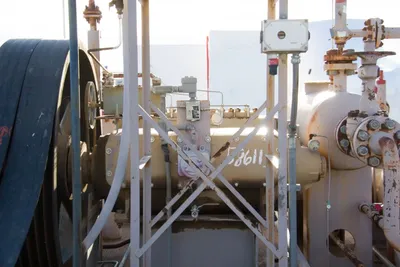

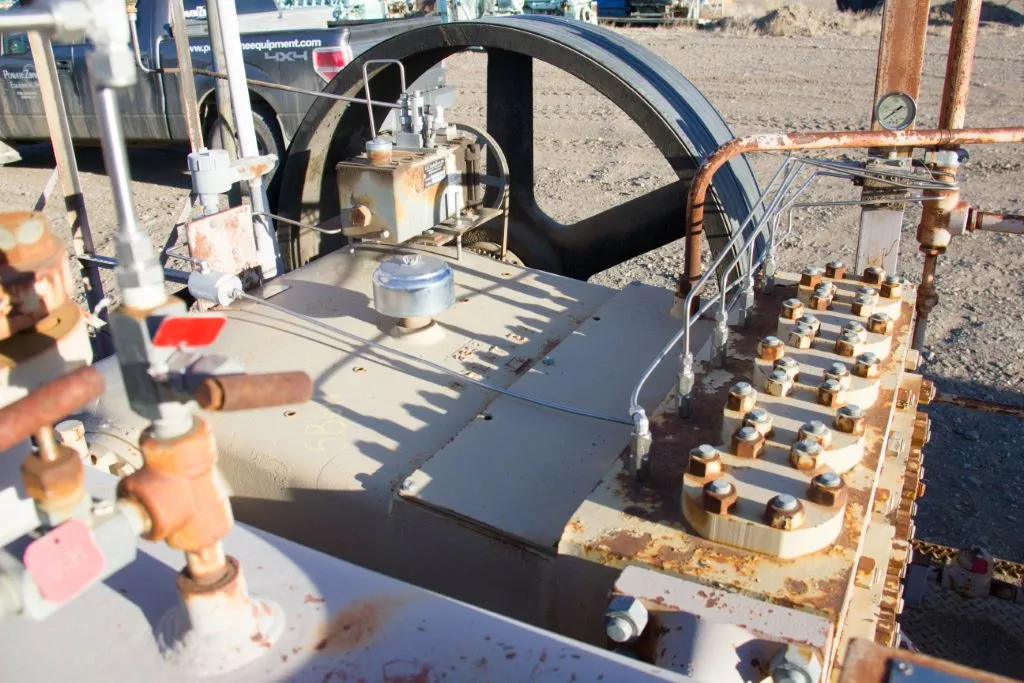

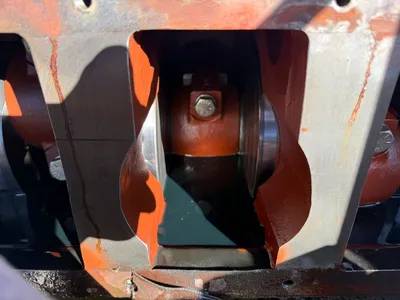

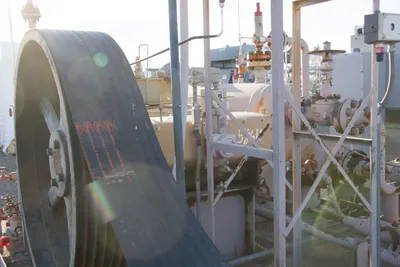

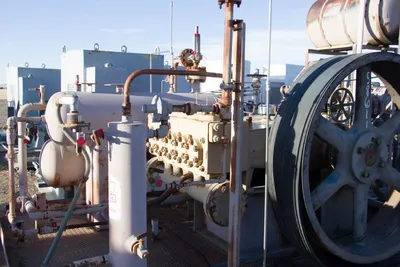

Used Wheatley HP-200-AM, same as NOV 217Q-4M quintuplex production pump only with the following features:
• 4.5" stroke
• 217 HP
• Steel billet fluid end

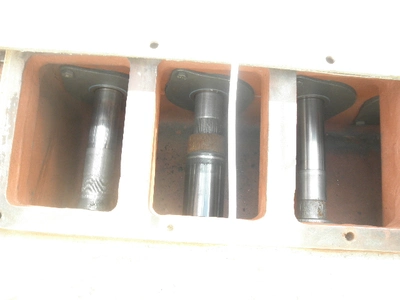

• 2 1/4 plungers
• 4"300# RF suction connection
• 2"1500# RF discharge connection
• Weight 2,948 lbs
• Dims 52"L x 48"W x 32"H
Applications: Well Service Pump, Water Transfer Pump, Production Pump, Mud Pump, Kill Truck Pump, Lift Station Pump, Condensate Pump, Cooling Tower Pump, Geothermal Pump, Gathering Pump
HP: 217
RPM: 390
PSI: 2213
GPM: 151
BPD: 5177
BPD: 5177
BPH: 215.7
BPM: 3.6
L/SEC: 9.53
L/MIN: 572
M3/SEC: 0.0095
M3/HR: 34.3
M3/DAY: 823
