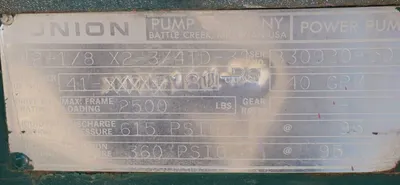

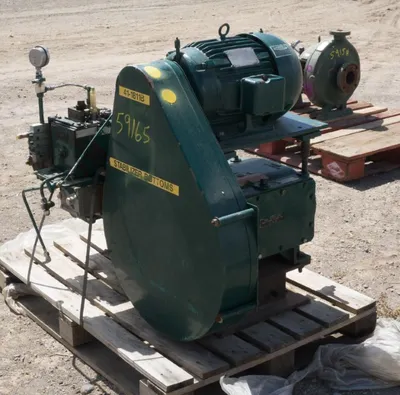

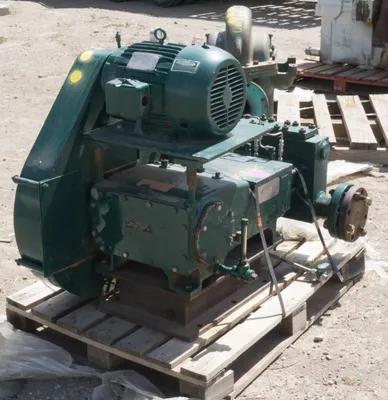

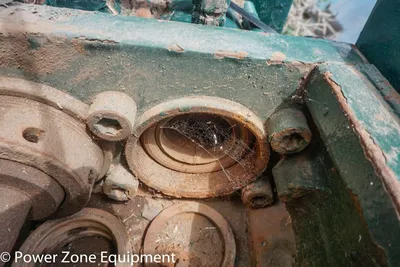

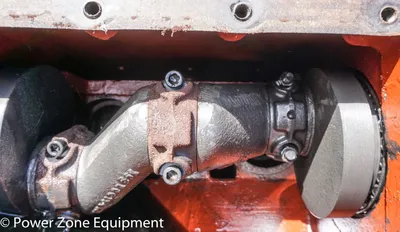

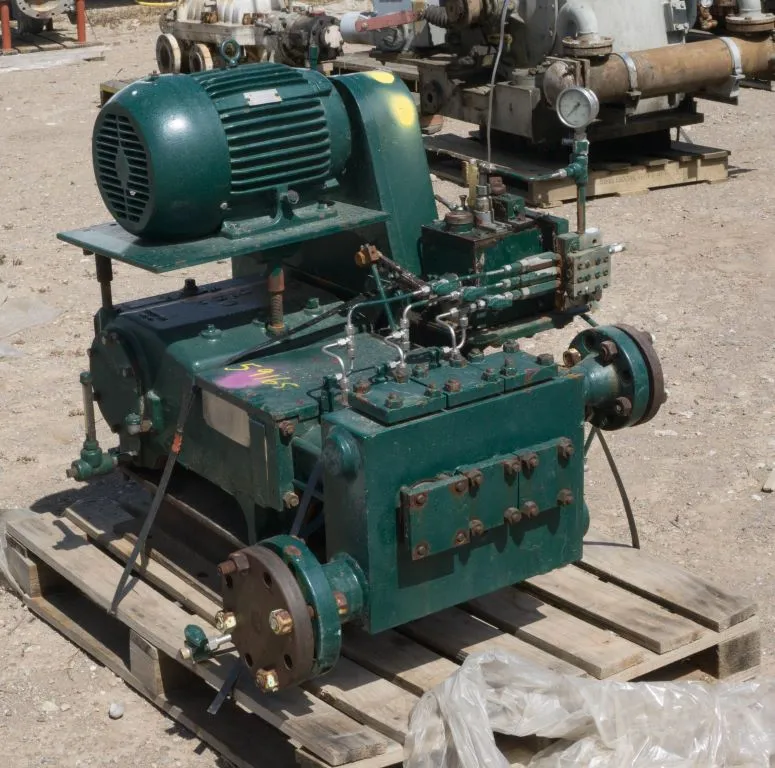

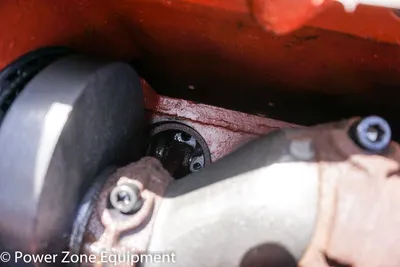

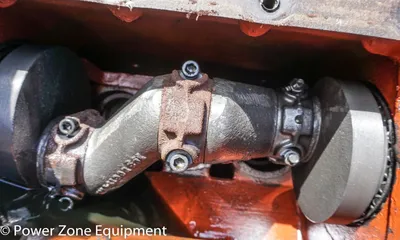

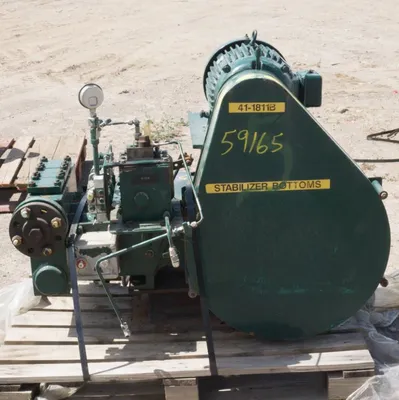

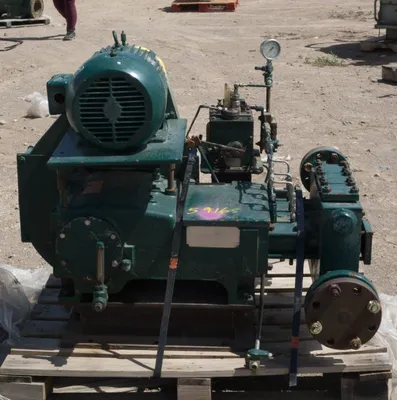

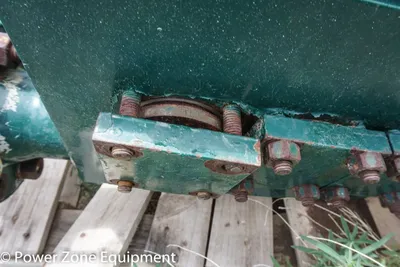

Used Union TD-30 triplex production pump package with the following features:
• 2.75" stroke
• 30 HP
• Steel fluid end

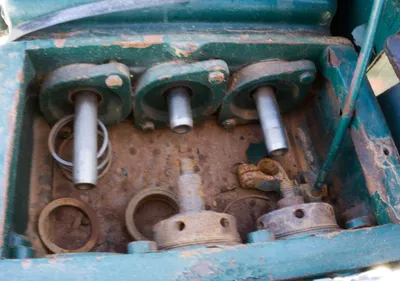

• 2" plungers

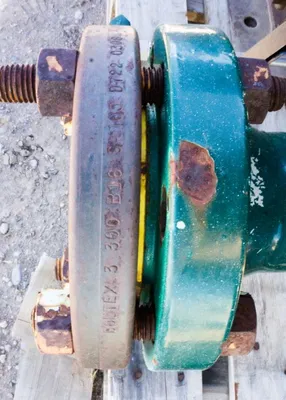

• 3" 300# NPT suction connection
• 2" 300# NPT discharge connection
• 3.44 gear ratio

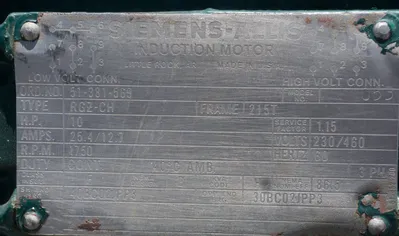

• Packaged with motor Siemens Allis, RG2-ch, 10 hp, SF-1.5, 230/460 volts, 178 rpm, model 053
• Weight 1,280 lbs
• Dims 40"Lx36"Wx36"H
Applications: Well Service Pump, Water Transfer Pump, Mud Pump, Kill Truck Pump, Lift Station Pump, Condensate Pump, Cooling Tower Pump, Geothermal Pump
HP: 30
RPM: 520
GPM: 40
Ratio: 3.4400
BPD: 1371
BPD: 1371
BPH: 57.1
BPM: 0.95
L/SEC: 2.52
L/MIN: 151
M3/SEC: 0.0025
M3/HR: 9.08
M3/DAY: 218
