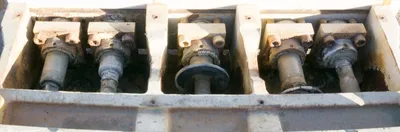

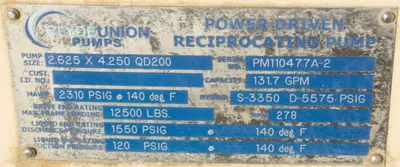

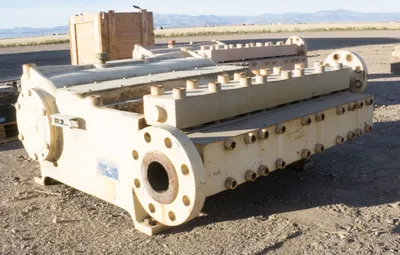

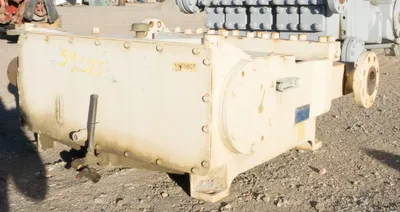

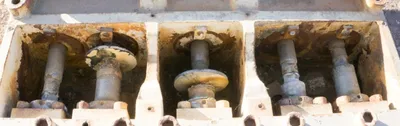

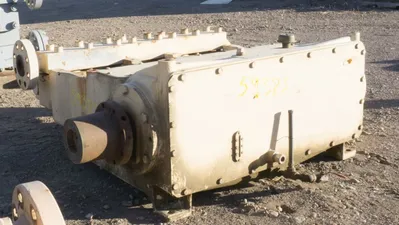

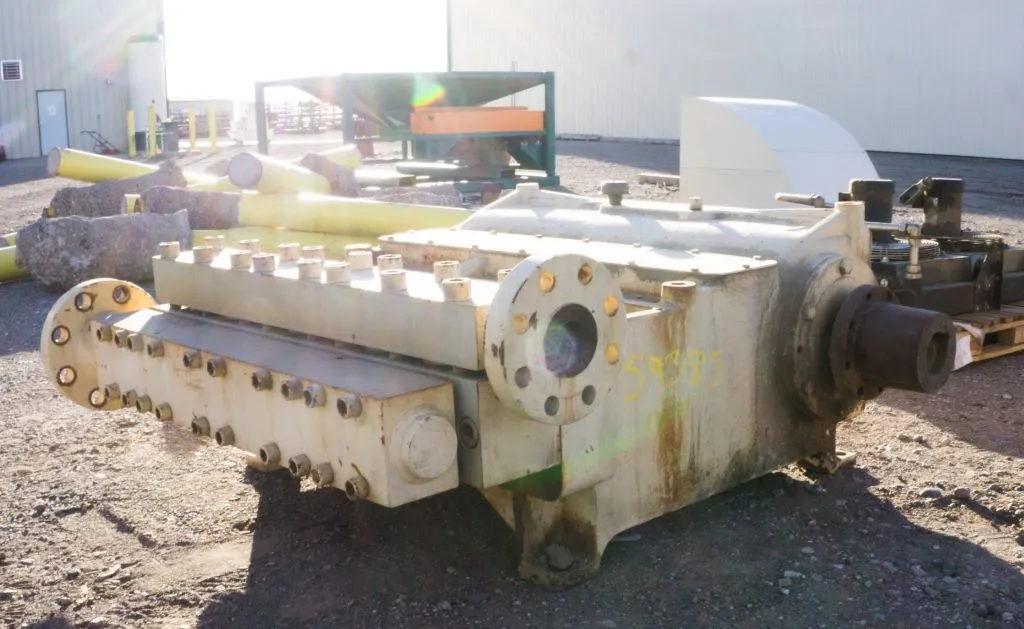

Used Union QD-200 quintuplex production pump with the following features:
• 4.25" stroke
• 240 HP
• Steel fluid end
• 2.625” plungers
• 4" ANSI 600# RF suction connection
• 2" ANSI 600# RF discharge connection
• Weight 6,350 lbs
• Dims(4'L x 4.5'W x 2'H)
Applications: Well Service Pump, Water Transfer Pump, Production Pump, Mud Pump, Kill Truck Pump, Lift Station Pump, Condensate Pump, Cooling Tower Pump, Geothermal Pump, Gathering Pump
HP: 240
RPM: 278
PSI: 2310
GPM: 131
BPD: 4491
BPD: 4491
BPH: 187.1
BPM: 3.12
L/SEC: 8.26
L/MIN: 496
M3/SEC: 0.0083
M3/HR: 29.75
M3/DAY: 714
