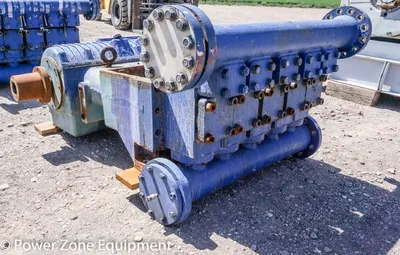

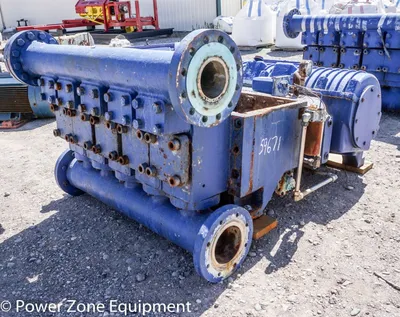

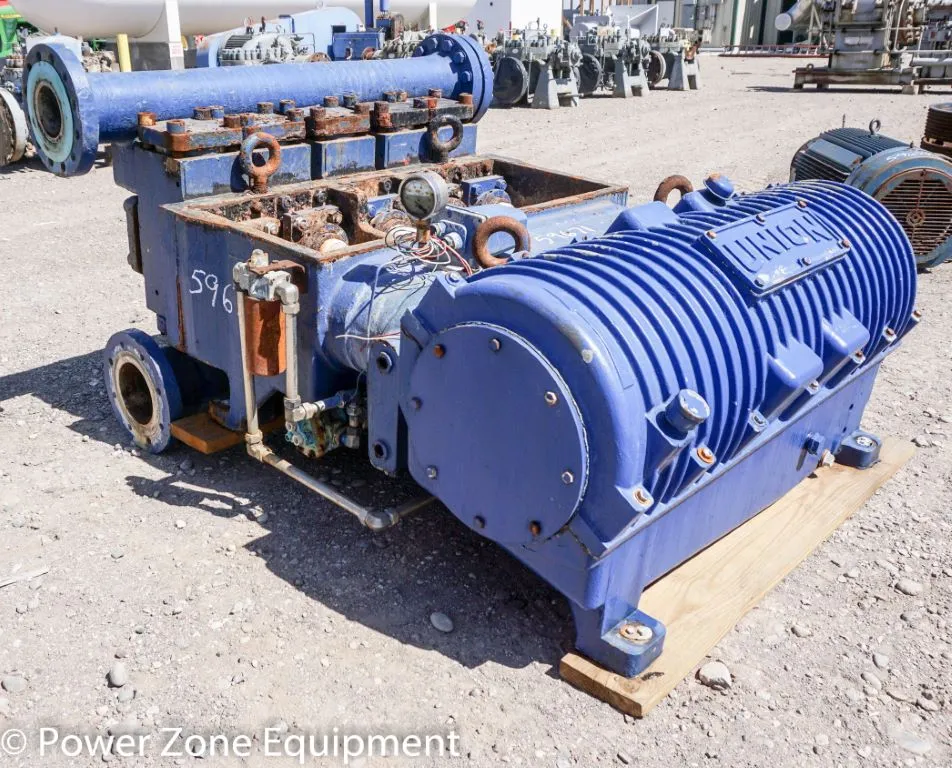

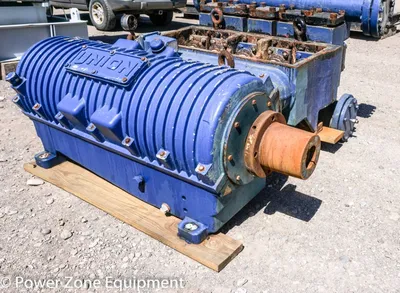

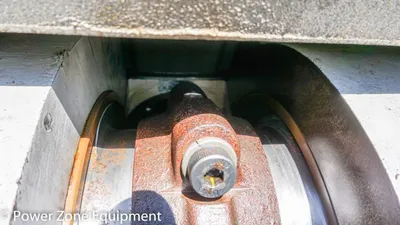

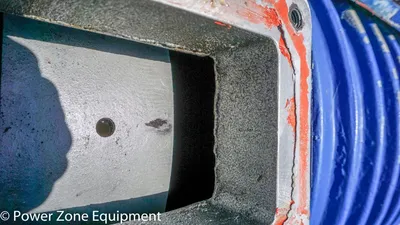

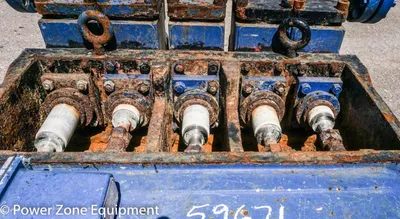

Used Union QD-400 quintuplex production pump package with the following features:
• 5.5" stroke
• 440 HP
• Duplex stainless steel fluid end
• 4” plungers
• 8" ANSI 300# RF suction connection
• 6" ANSI 1500# RF discharge connection
• 4.6:1 gear ratio
• Weight 12,300 lbs
• Dims (84”L x 66”W x 48” H)
Applications: Saltwater Disposal Pump, Well Service Pump, Water Transfer Pump, Steel Mill Descaling Pump, Production Pump, SWD Pump, Brine Water Injection Pump, Produced Water Injection Pump, Salt Water Injection Pump, Mud Pump, Kill Truck Pump, Lift Station Pump, Condensate Pump, Cooling Tower Pump, Geothermal Pump, Steel Mill Pump, Gathering Pump
HP: 440
RPM: 290
PSI: 1830
GPM: 432
Ratio: 4.6000
BPD: 14811
BPD: 14811
BPH: 617.1
BPM: 10.29
L/SEC: 27.25
L/MIN: 1635
M3/SEC: 0.0273
M3/HR: 98.12
M3/DAY: 2355
