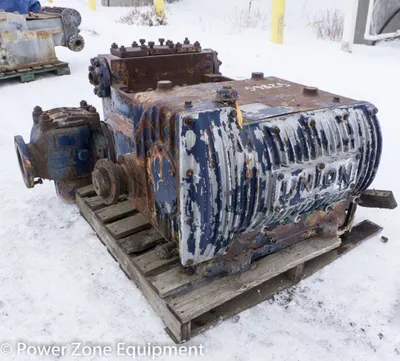

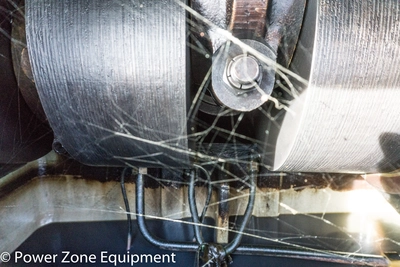

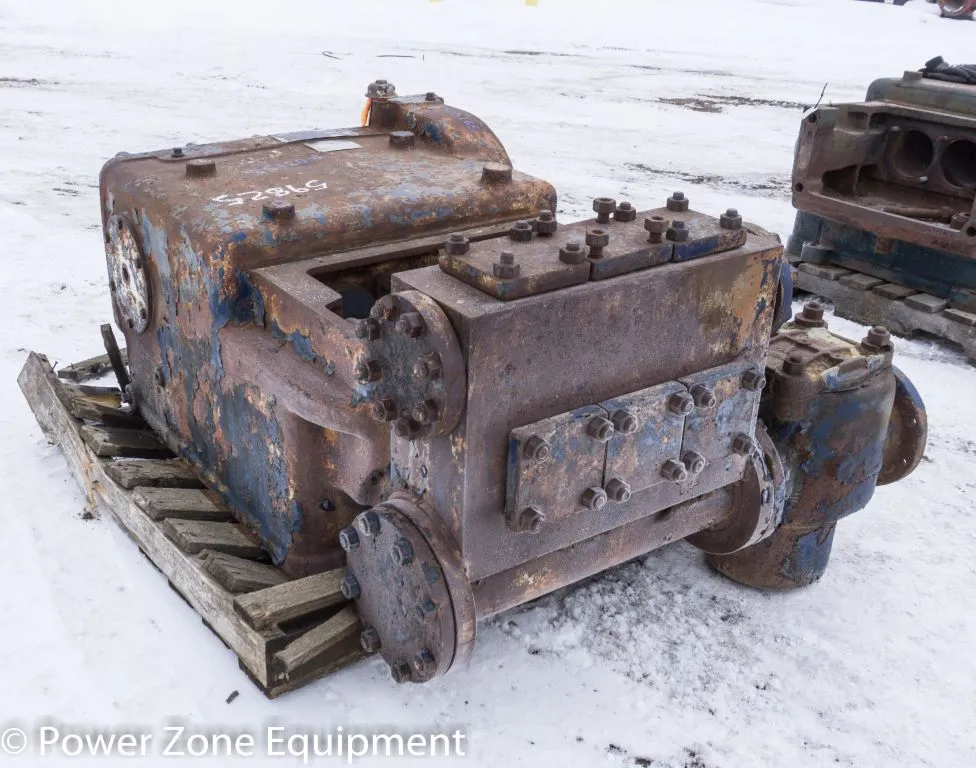

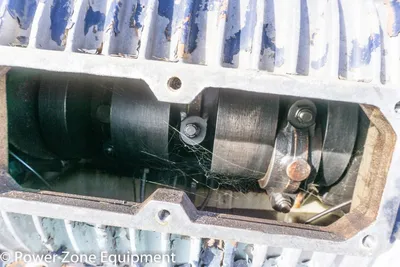

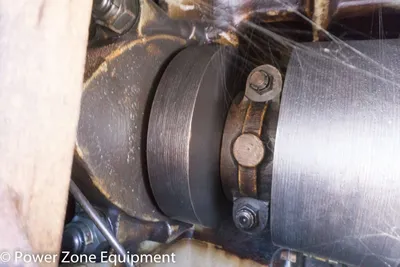

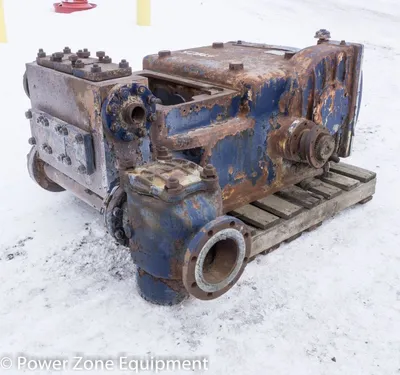

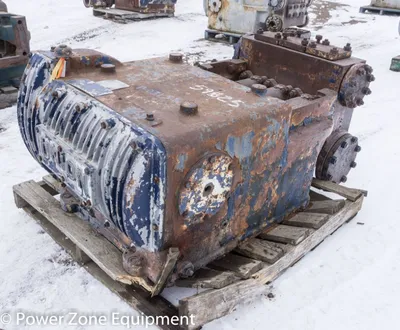

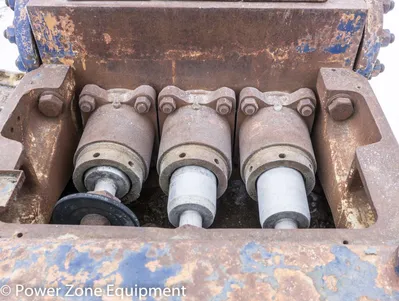

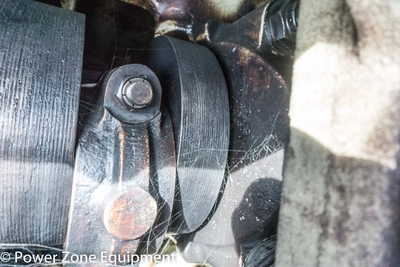

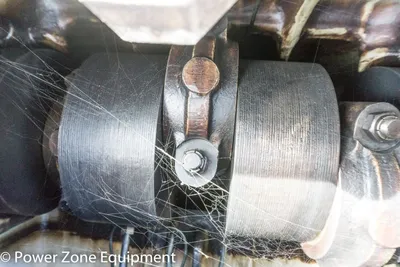

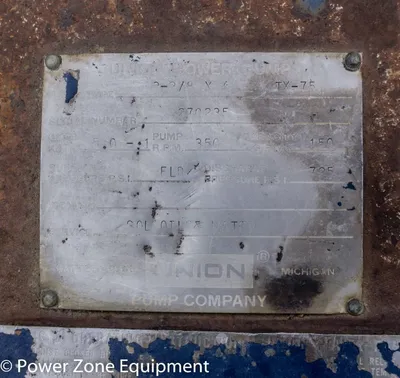

Used Union TX-75 triplex production pump package with the following features:
• 4" stroke
• 75 HP
• #3 Steel billet fluid end

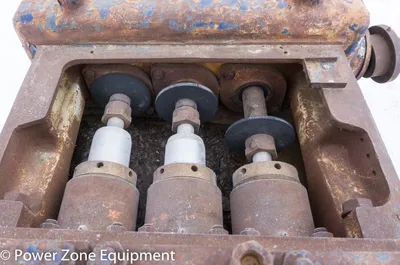

• 2 3/8” plungers
• 6" ANSI 150# FF suction connection
• 3" ANSI 600# FF discharge connection
• 5.0 gear ratio
• Weight 3,000 lbs
• Dims 59"Lx50"Wx36"H
Applications: Well Service Pump, Water Transfer Pump, Snowmaking Pump, Oil Transfer Pump, Production Pump, Mud Pump, Kill Truck Pump, Lift Station Pump, Condensate Pump, Cooling Tower Pump, Geothermal Pump, Ski Resort Pump, Barge Loading Pump, Loading Arm Pump, Gathering Pump
HP: 75
RPM: 350
PSI: 725
GPM: 150
Ratio: 5.0000
BPD: 5143
BPD: 5143
BPH: 214.3
BPM: 3.57
L/SEC: 9.46
L/MIN: 568
M3/SEC: 0.0095
M3/HR: 34.07
M3/DAY: 818
