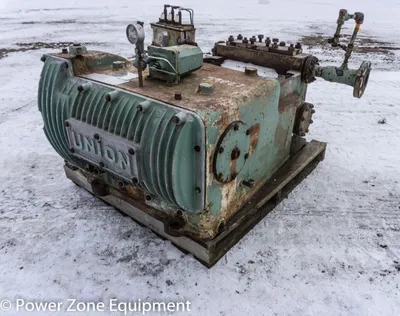

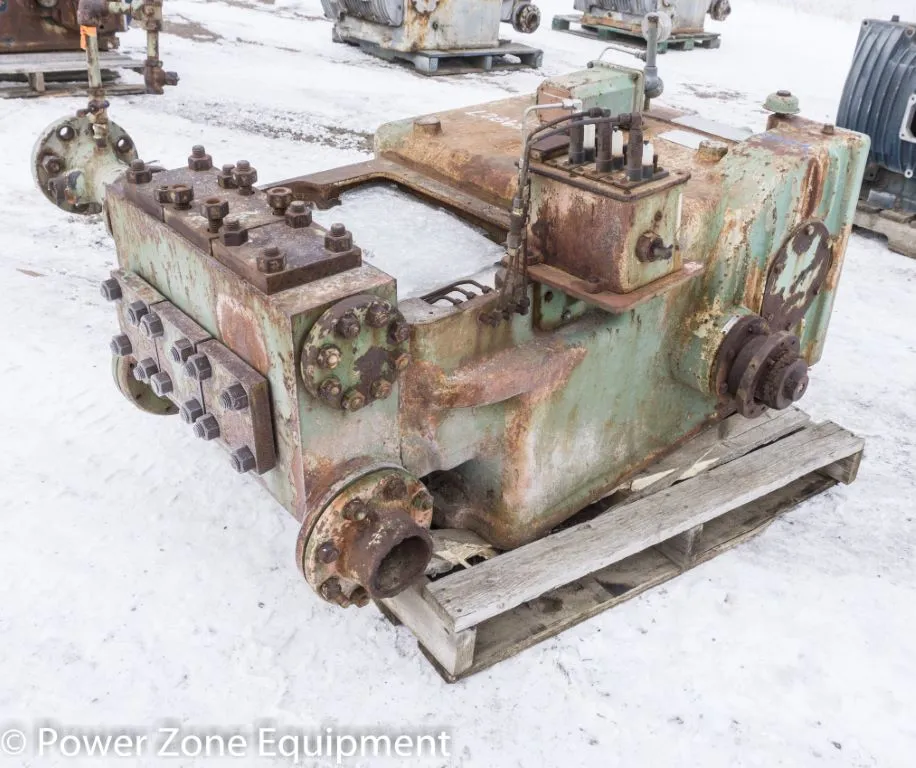

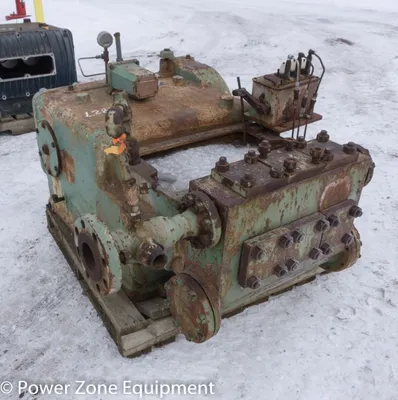

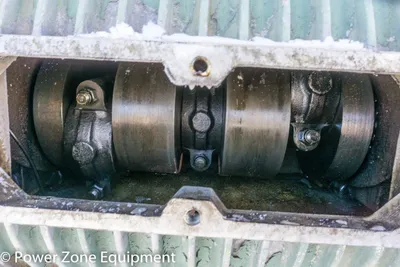

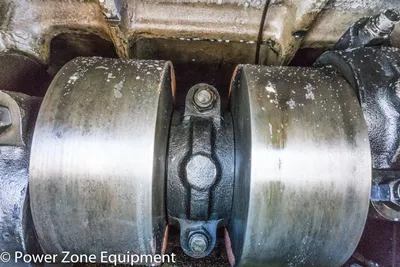

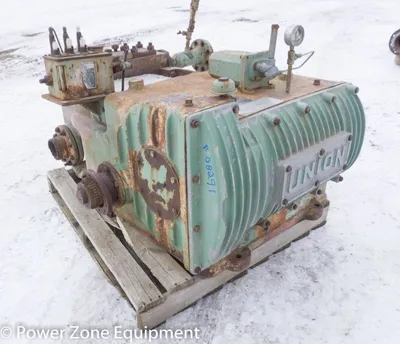

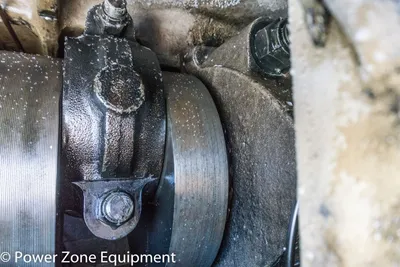

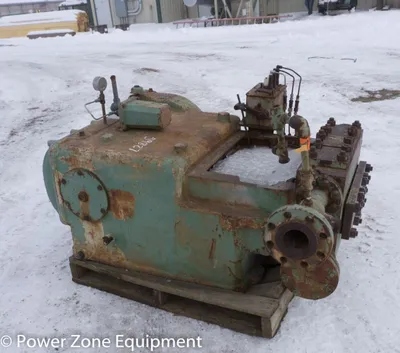

Used Union TX-90 triplex production pump package with the following features:
• 4" stroke
• 90 HP
• #2 steel billet fluid end
• 2 5/16” plungers
• 4" ANSI 150# suction connection
• 2" ANSI 600# discharge connection
• 5.0 gear ratio
• Weight 3,300 lbs
• Dims 56"Lx50"Wx36"H
Applications: Well Service Pump, Water Transfer Pump, Production Pump, Mud Pump, Kill Truck Pump, Lift Station Pump, Condensate Pump, Cooling Tower Pump, Geothermal Pump, Gathering Pump
HP: 90
RPM: 232
PSI: 1200
GPM: 45
Ratio: 5.0000
BPD: 1543
BPD: 1543
BPH: 64.3
BPM: 1.07
L/SEC: 2.84
L/MIN: 170
M3/SEC: 0.0028
M3/HR: 10.22
M3/DAY: 245
