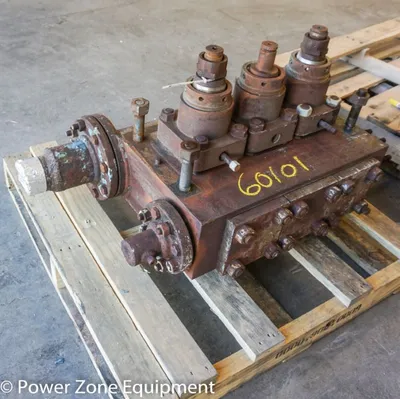

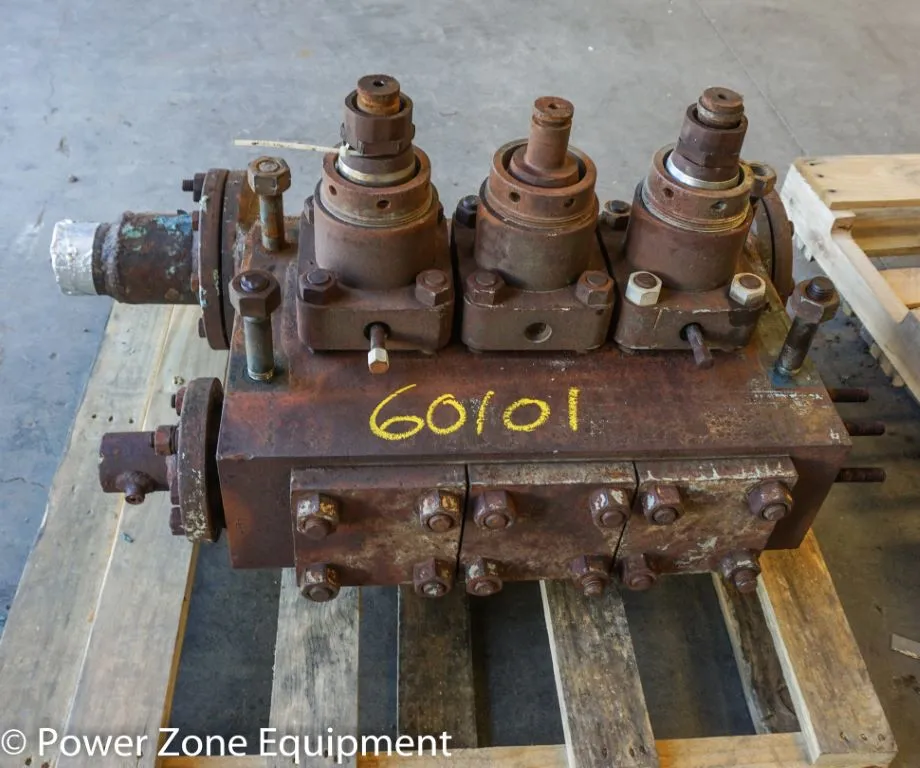

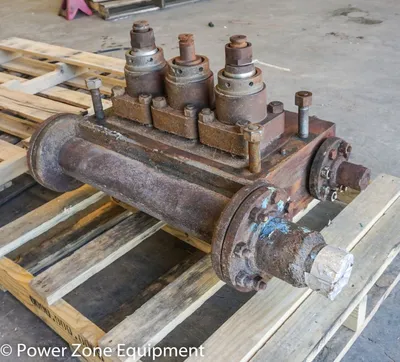

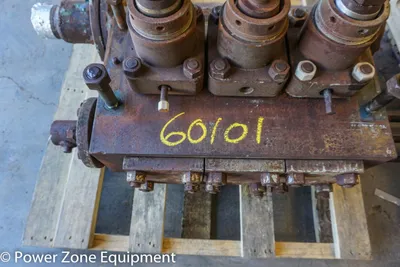

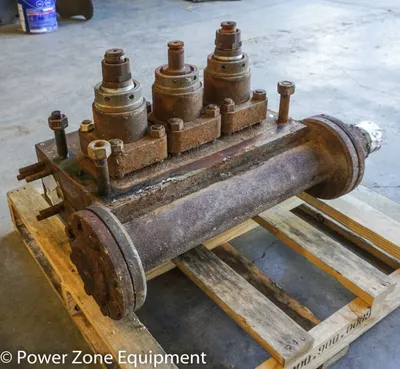

Used Union TX-90 triplex production pump fluid end with the following features:
• 4" stroke
• 90HP
• Steel billet fluid end
• 2 7/8" plungers
• Wing guided metal valves
• 4" 150# RF suction connection
• 2" 600# RTJ discharge connection
• Last used in soluble oil service
• Weight
• Dims 37"Lx24"Wx21"H
Applications: Well Service Pump, Water Transfer Pump, Oil Transfer Pump, Production Pump, Mud Pump, Kill Truck Pump, Lift Station Pump, Condensate Pump, Cooling Tower Pump, Geothermal Pump, Barge Loading Pump, Loading Arm Pump, Gathering Pump
HP: 90
PSI: 1000
GPM: 134
BPD: 4594
BPD: 4594
BPH: 191.4
BPM: 3.19
L/SEC: 8.45
L/MIN: 507
M3/SEC: 0.0085
M3/HR: 30.43
M3/DAY: 730
