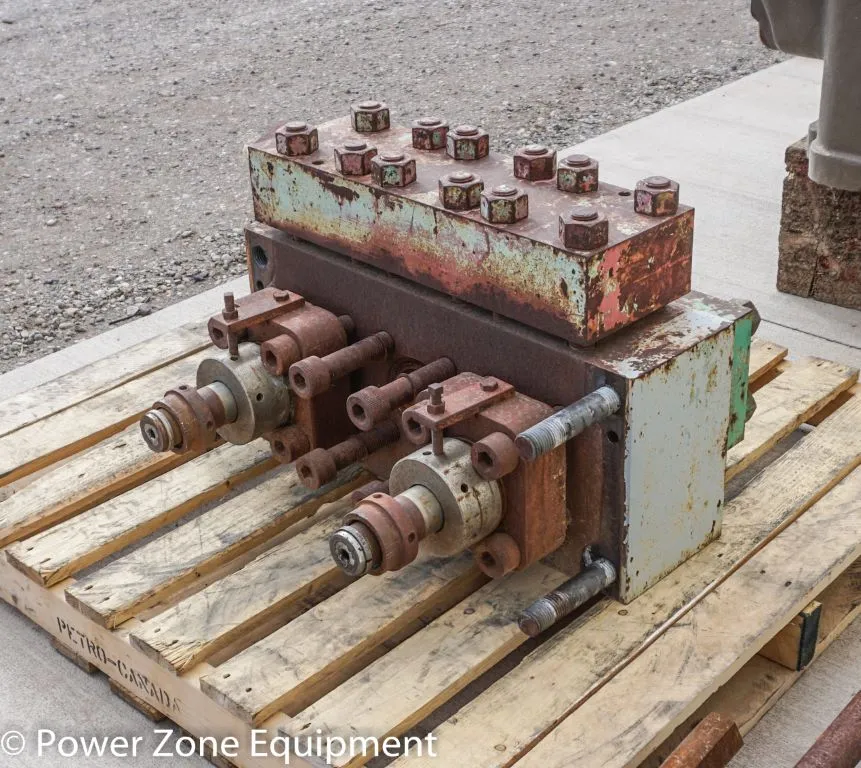

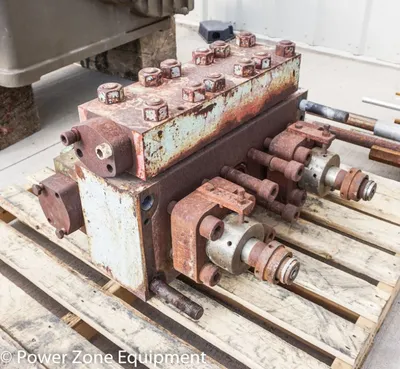

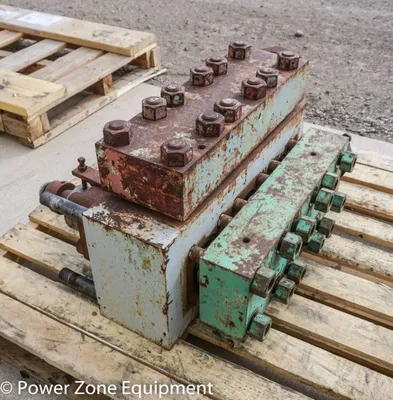

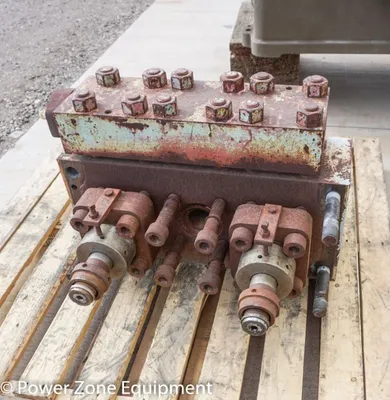

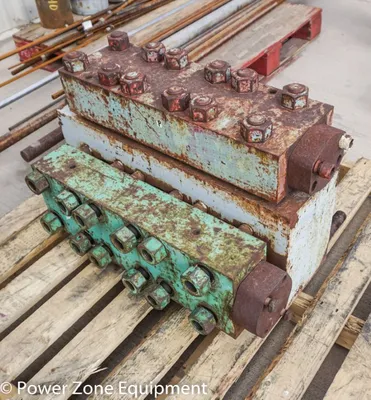

Used Union TX-200 Triplex production pump fluid end only with the following features:
• 5" stroke
• 200 HP
• Steel billet fluid end
• 2.25" plungers
• 3" FF suction connection
• 2" FF discharge connection
• Weight
• Dims 29"Lx26"Wx19"H
Applications: Pressure Testing Pump, Well Service Pump, Water Transfer Pump, Production Pump, Hydrotesting Pump, Hydrostatic Testing Pump, Mud Pump, Kill Truck Pump, Lift Station Pump, Condensate Pump, Cooling Tower Pump, Geothermal Pump, Gathering Pump
HP: 200
RPM: 369
PSI: 3018
GPM: 95
BPD: 3257
BPD: 3257
BPH: 135.7
BPM: 2.26
L/SEC: 5.99
L/MIN: 360
M3/SEC: 0.006
M3/HR: 21.58
M3/DAY: 518
