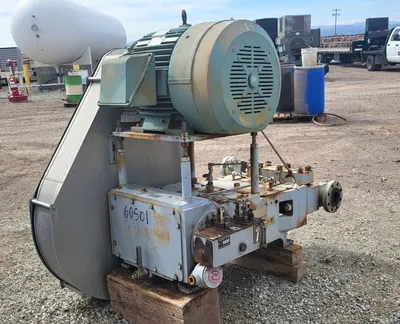

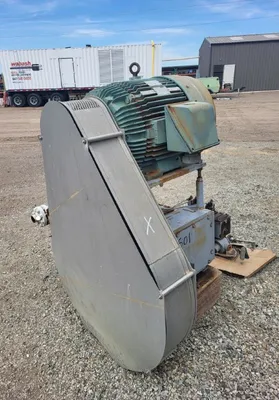

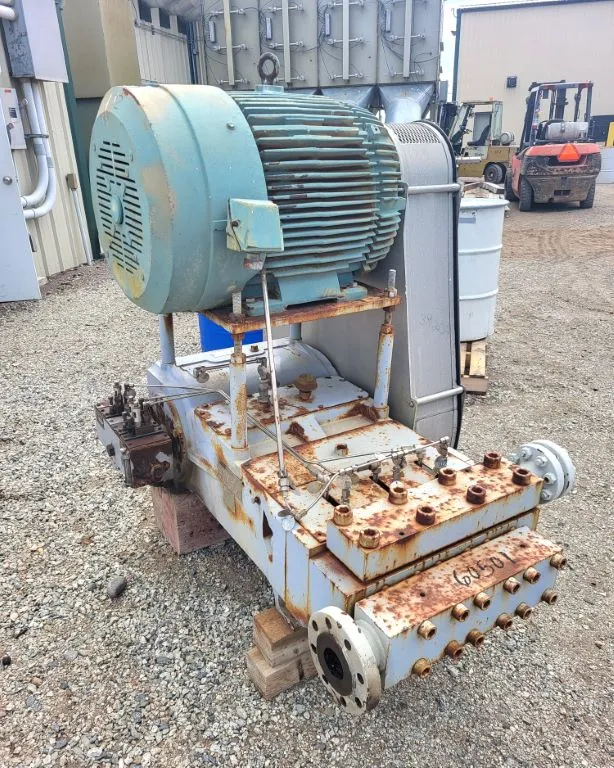

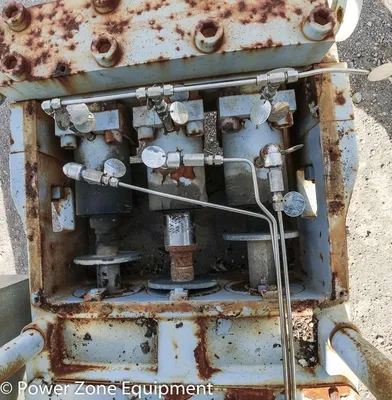

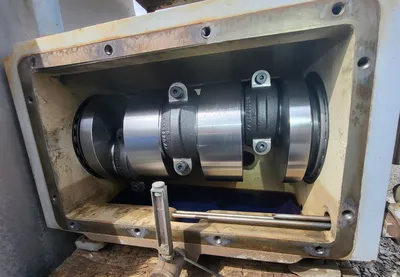

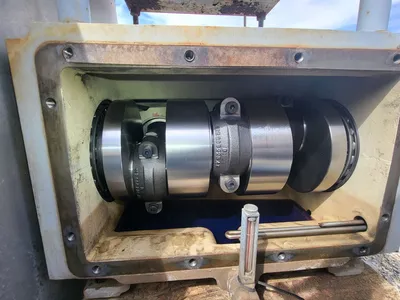

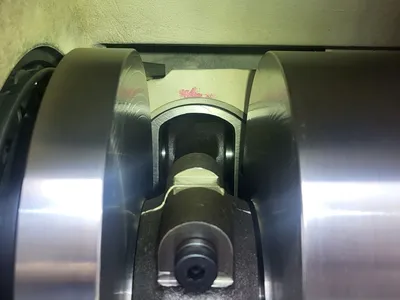

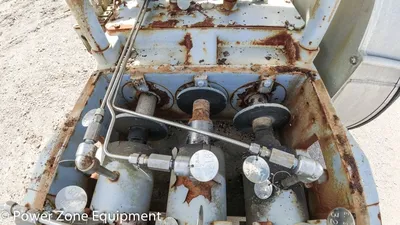

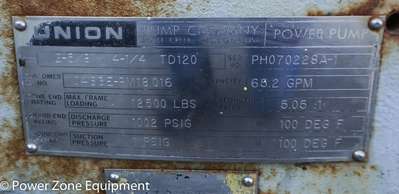

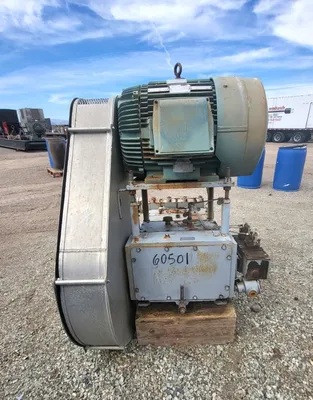

Used Union TD-120 triplex pump with the following features:
• 4.25" stroke
• Steel fluid end
• 2.625" plungers
• 3" 600# RF suction connection
• 2" 600# RF discharge connection

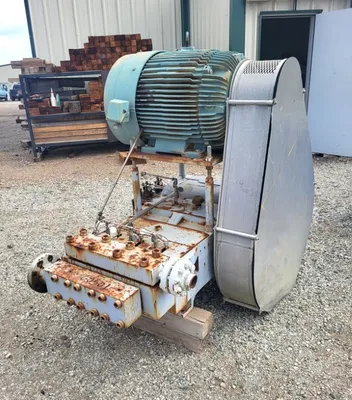

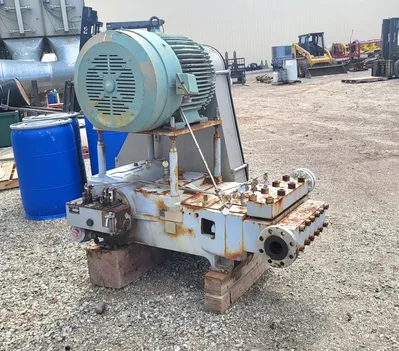

• Packaged with Reliance 60 HP electric motor
• Weight: 2,080 lbs
• Skid Weight: 3,920 lbs
• Dims 56"L x 44"W x 18" H
• Skid Dims 67"L x 50"W x 59" H
Applications: Well Service Pump, Water Transfer Pump, Production Pump, Mud Pump, Kill Truck Pump, Lift Station Pump, Condensate Pump, Cooling Tower Pump, Geothermal Pump, Gathering Pump
HP: 120
RPM: 200
PSI: 1002
GPM: 65
BPD: 2229
BPD: 2229
BPH: 92.9
BPM: 1.55
L/SEC: 4.1
L/MIN: 246
M3/SEC: 0.0041
M3/HR: 14.76
M3/DAY: 354
