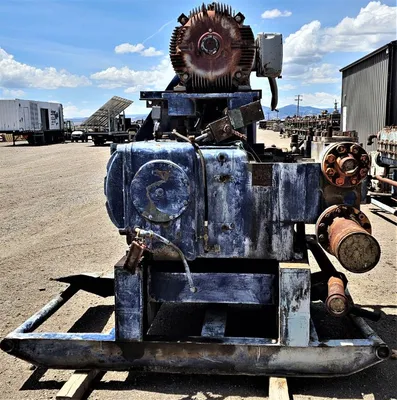

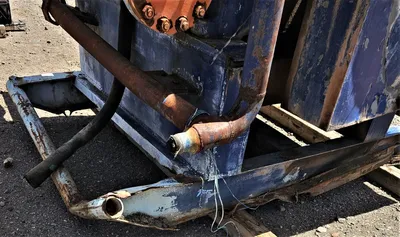

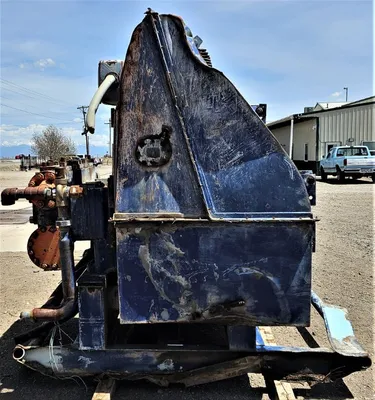

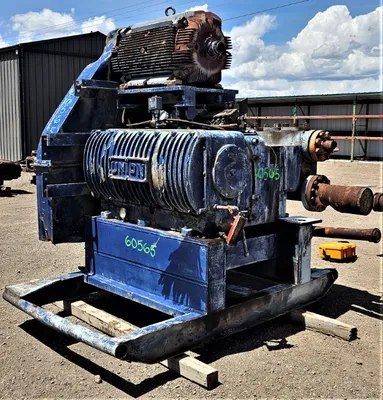

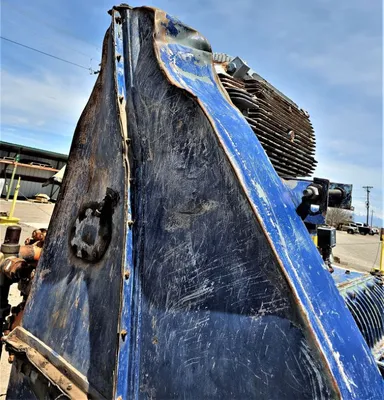

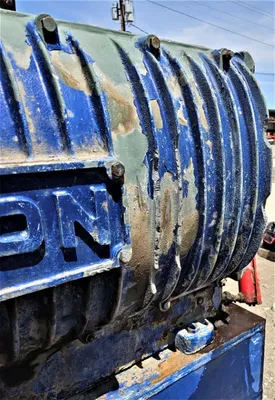

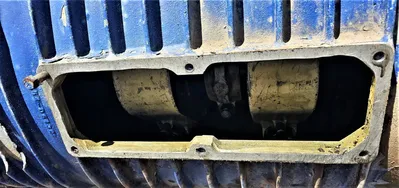

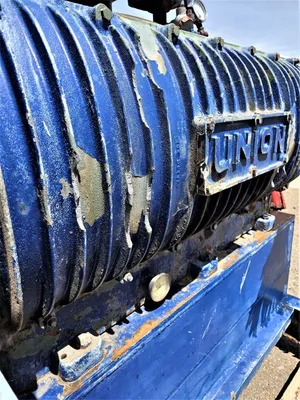

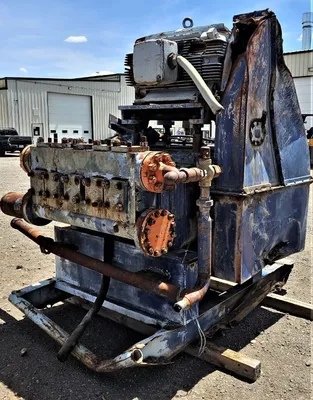

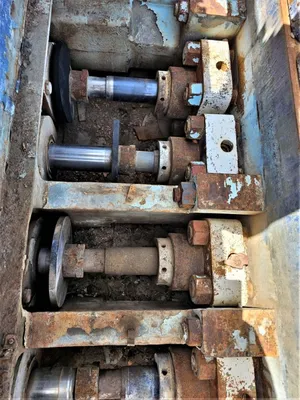

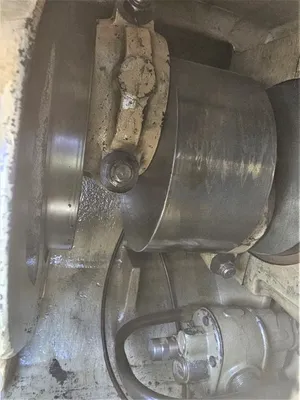

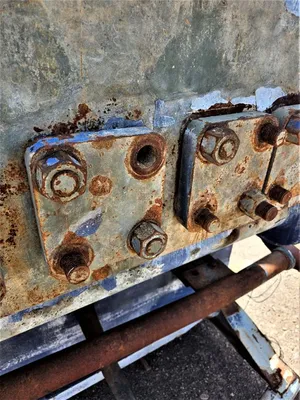

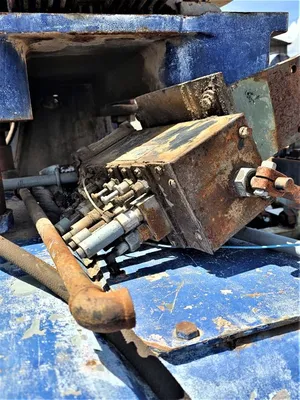

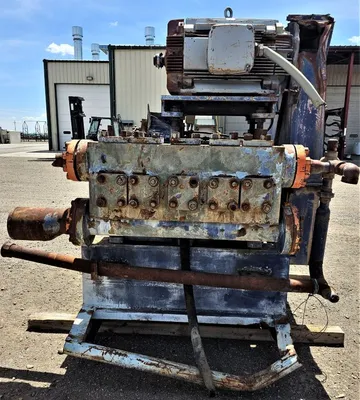

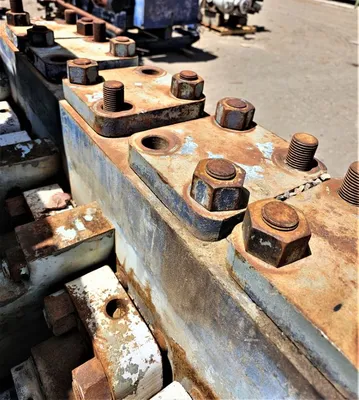

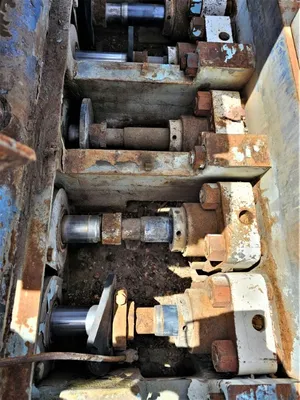

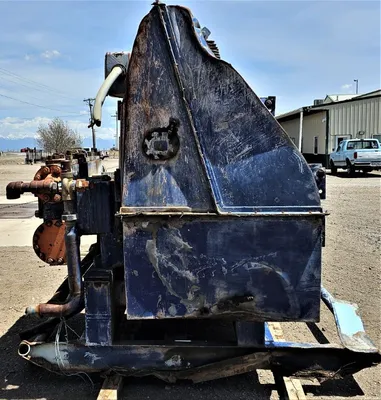

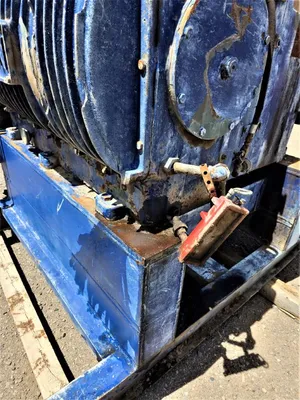

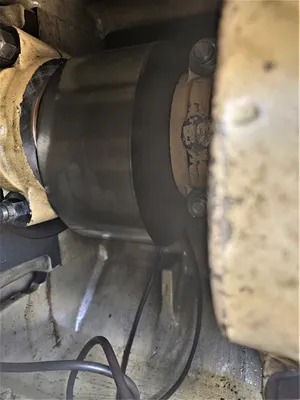

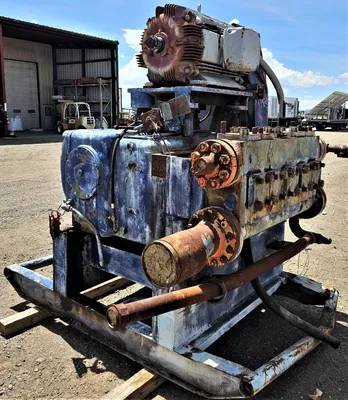

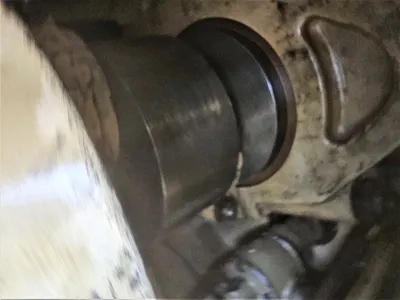

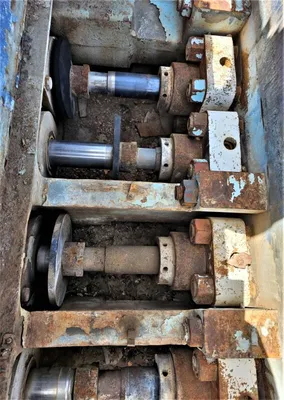

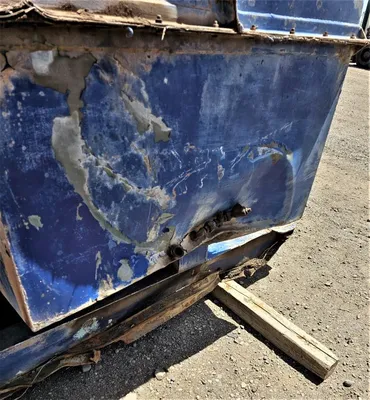

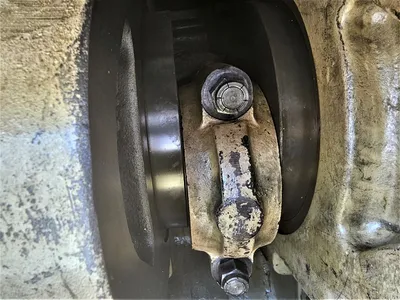

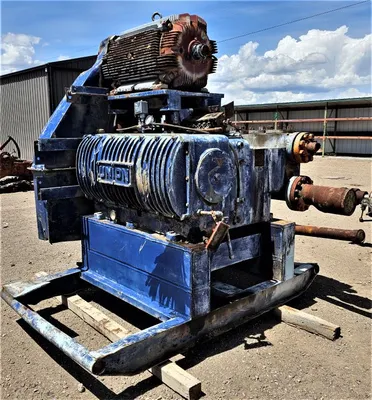

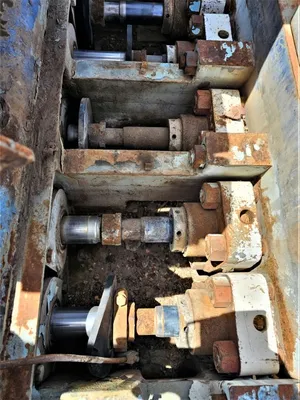

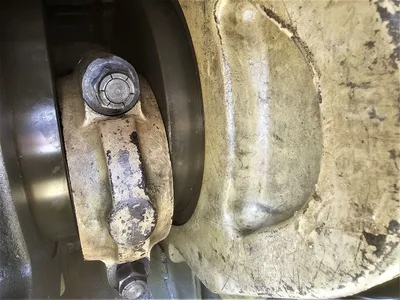

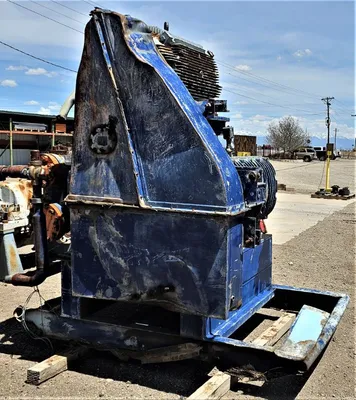

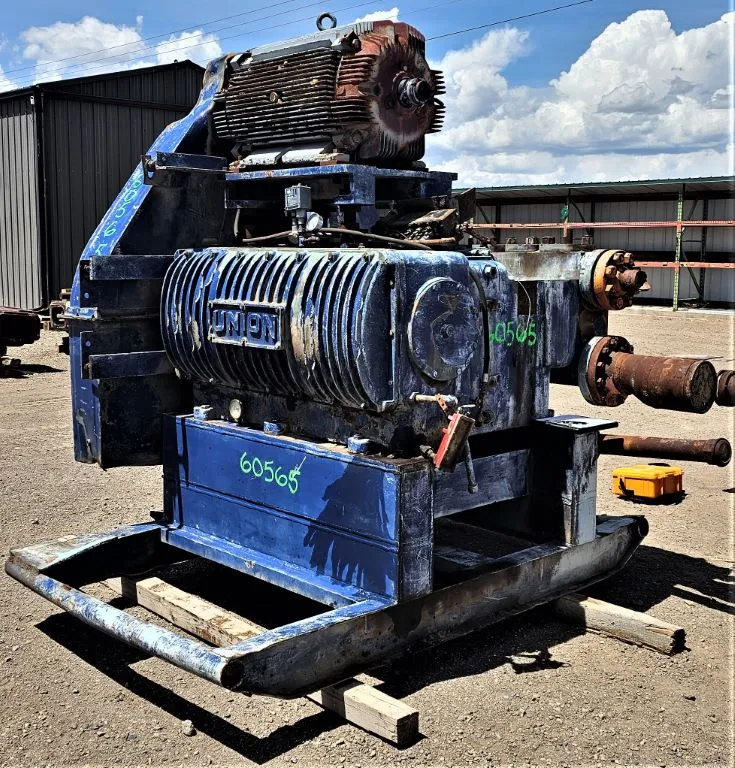

Used Union QX-300 Quintuplex Production Pump Package with the Following Features:
• 5.0" Stroke
• 300 HP
• Carbon Steel Fluid End
• 2.375" Plungers
• Suction 6" 300#
• Discharge 3" 1500#

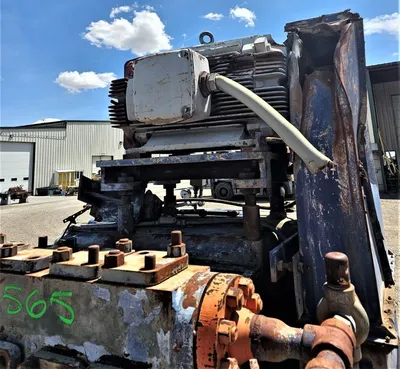

• Packaged as top mount with US Motors 250 HP Elec1tric Motor.
• 5.3:1 Belt ratio
• Weight; 14,600 lbs
• Dims: 97” l x 96” w x ” h (Package Size)
Applications: Pressure Testing Pump, Well Service Pump, Water Transfer Pump, Production Pump, Hydrotesting Pump, Hydrostatic Testing Pump, Mud Pump, Kill Truck Pump, Lift Station Pump, Condensate Pump, Cooling Tower Pump, Geothermal Pump, Gathering Pump

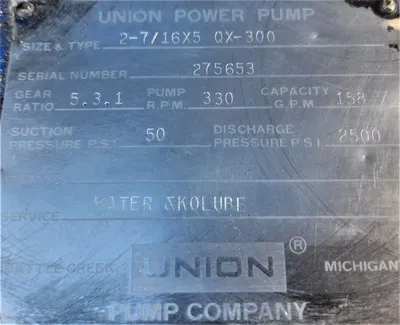

HP: 350
RPM: 330
PSI: 2500
GPM: 158
BPD: 5417
BPD: 5417
BPH: 225.7
BPM: 3.76
L/SEC: 9.97
L/MIN: 598
M3/SEC: 0.01
M3/HR: 35.89
M3/DAY: 861
