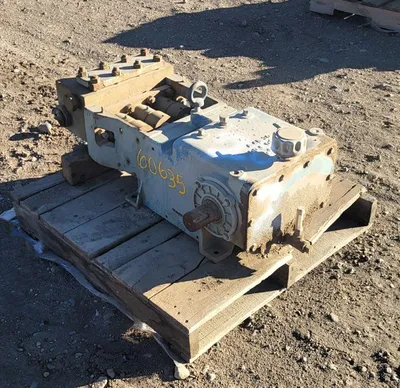

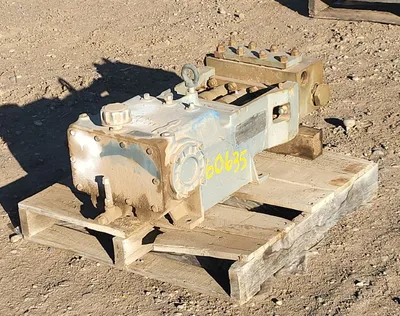

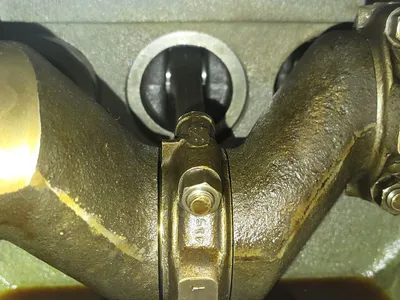

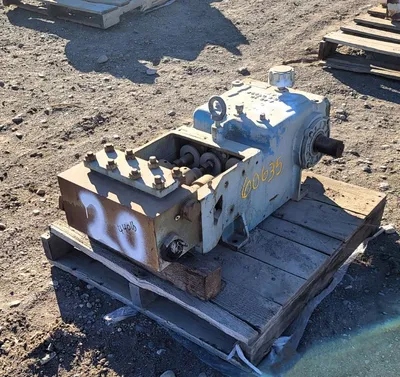

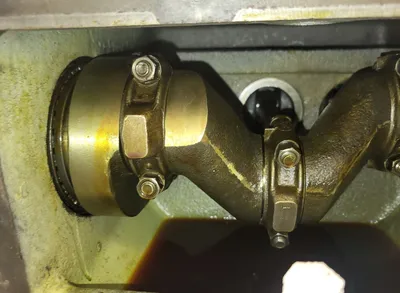

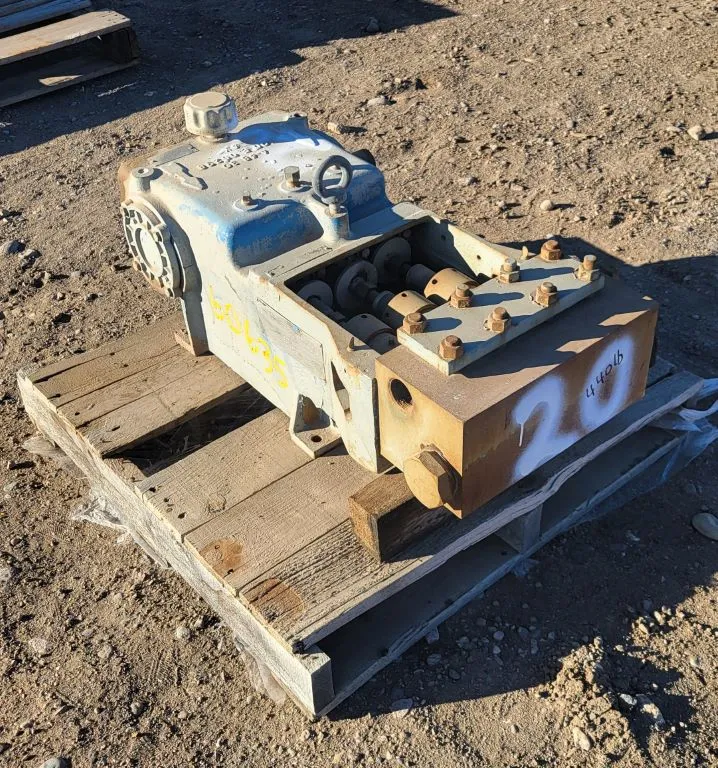

Used Union TX-10 triplex pump. with the following features:
• 2.25 stroke
• 10 HP
• Steel fluid end

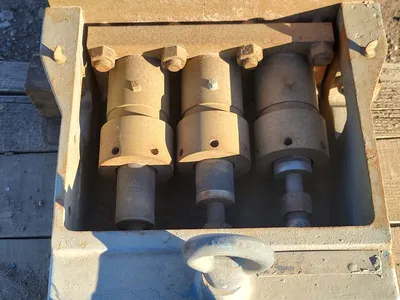

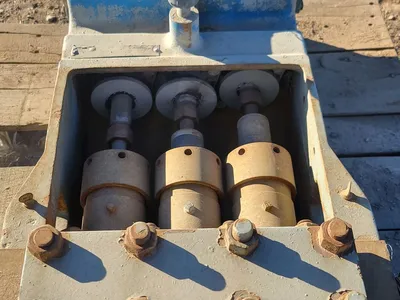

• 1.5" tungsten carbide plungers

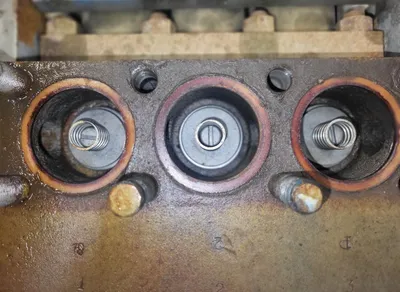

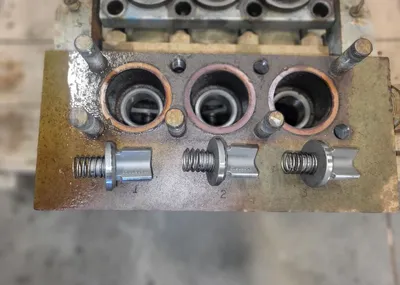

• Wing guided valves
• 2” NPT suction
• 1.25” NPT discharge
• Weight: 440 lbs.
• Dims: 31"(L)x 17"(W)x13"(H)
Applications: Water Transfer Pump, Oil Transfer Pump, Production Pump, Lift Station Pump, Condensate Pump, Cooling Tower Pump, Geothermal Pump, Barge Loading Pump, Loading Arm Pump, Gathering Pump
HP: 10
RPM: 400
PSI: 850
GPM: 20
BPD: 686
BPD: 686
BPH: 28.6
BPM: 0.48
L/SEC: 1.26
L/MIN: 76
M3/SEC: 0.0013
M3/HR: 4.54
M3/DAY: 109
