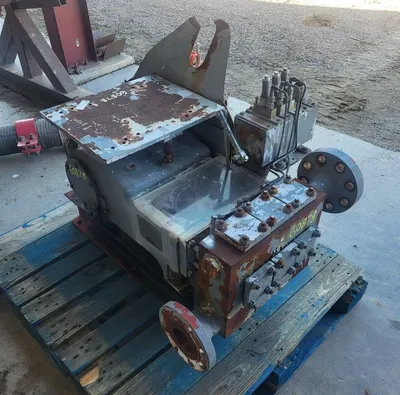

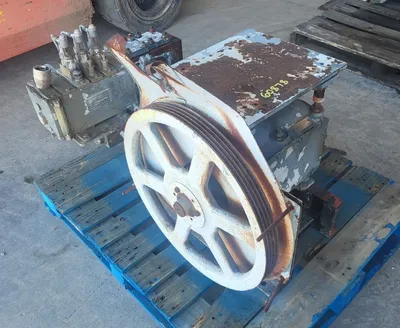

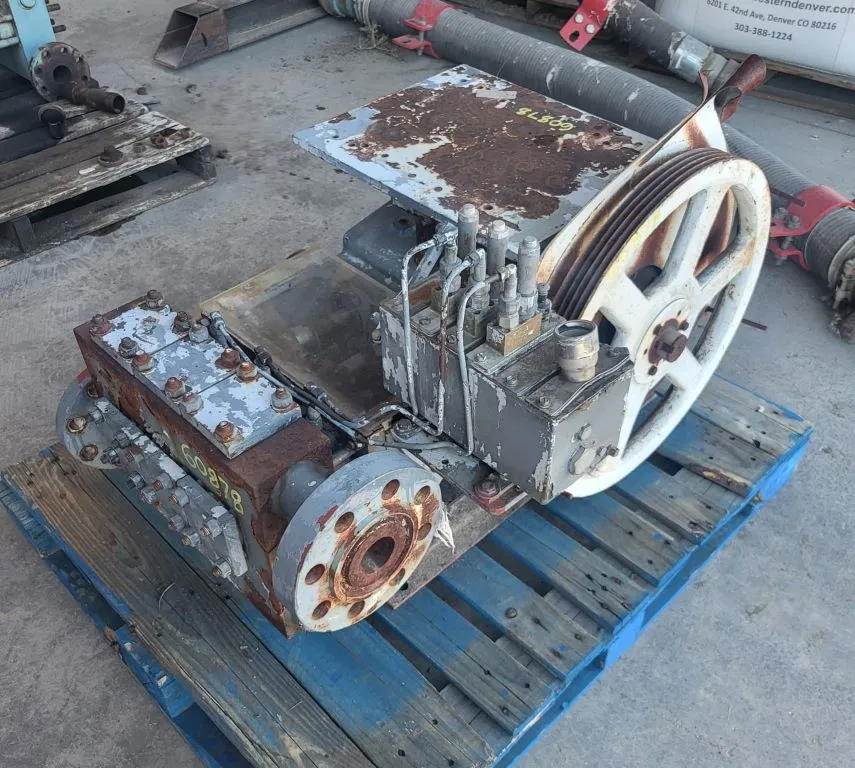

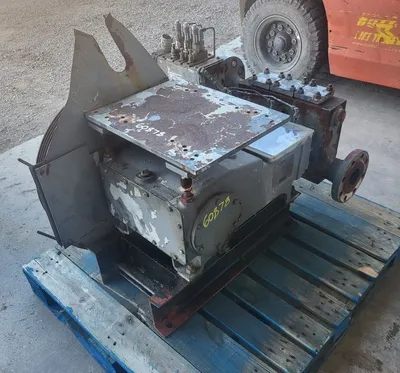

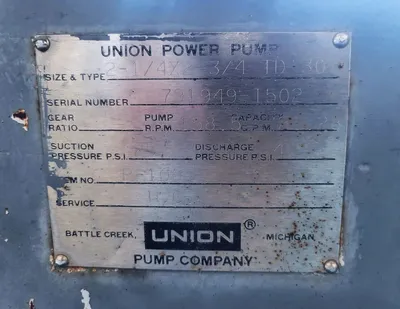

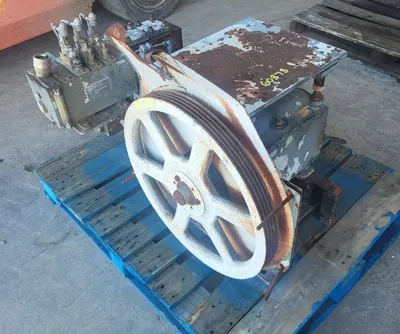

Used Union TD-30 pump, with the following features:
• 2.75” stroke
• 33 HP
• Steel fluid end

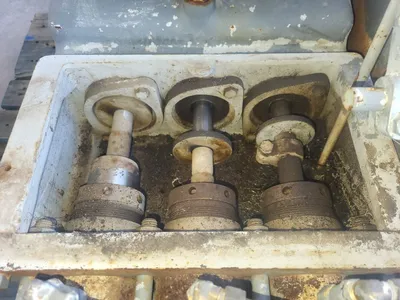

• 2.125” Steel plungers

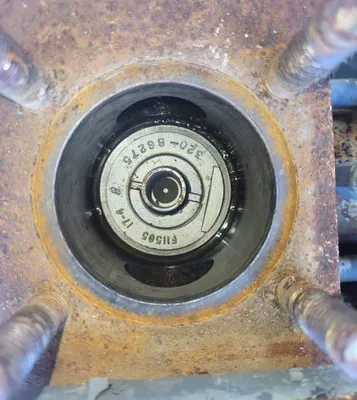

• Disc valves
• 3” NPT suction with welded 3” 300# Flange
• 2” NPT discharge with welded 2” 1500# Flange
• Weight: 860 lbs.
• Dims: 40"(L)x 31"(W)x 28"(H)
Applications: Well Service Pump, Water Transfer Pump, Oil Transfer Pump, Production Pump, Mud Pump, Kill Truck Pump, Lift Station Pump, Condensate Pump, Cooling Tower Pump, Geothermal Pump, Barge Loading Pump, Loading Arm Pump, Gathering Pump
HP: 33
RPM: 520
PSI: 705
GPM: 65
BPD: 2229
BPD: 2229
BPH: 92.9
BPM: 1.55
L/SEC: 4.1
L/MIN: 246
M3/SEC: 0.0041
M3/HR: 14.76
M3/DAY: 354
