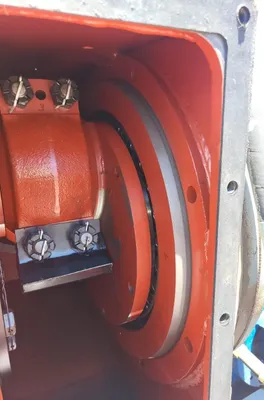

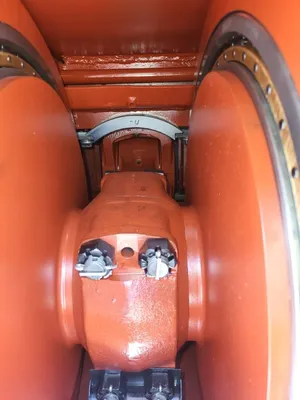

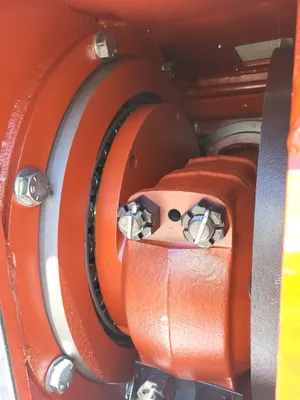

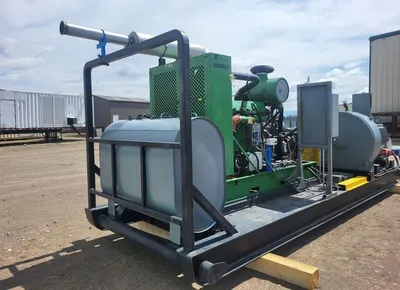

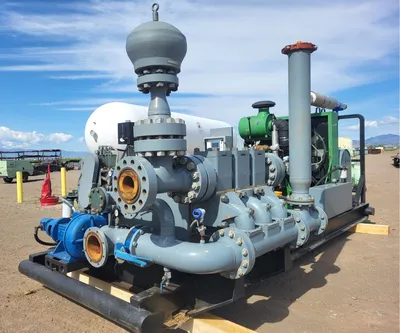

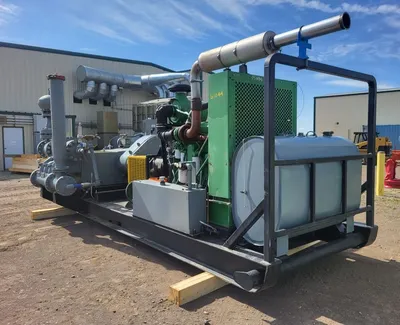

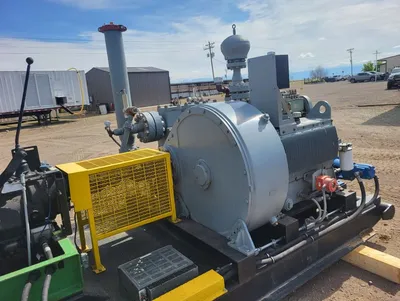

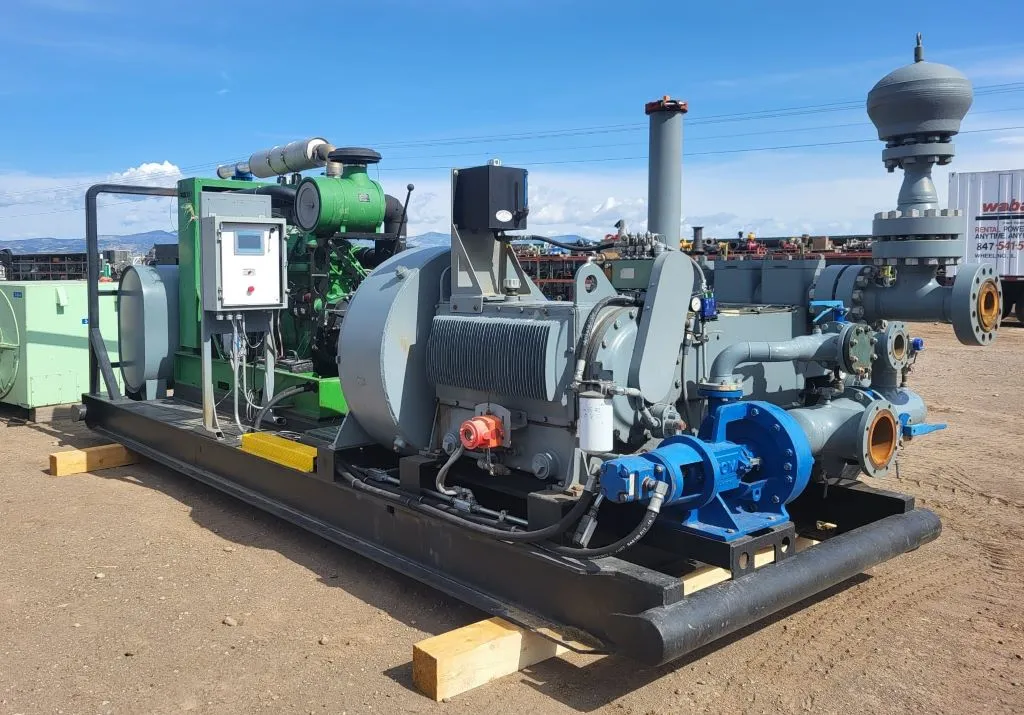

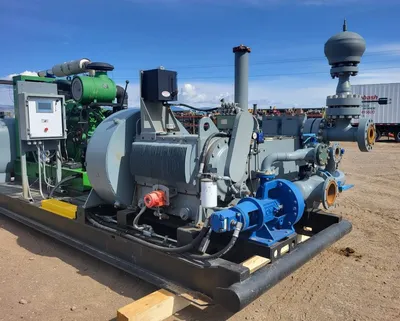

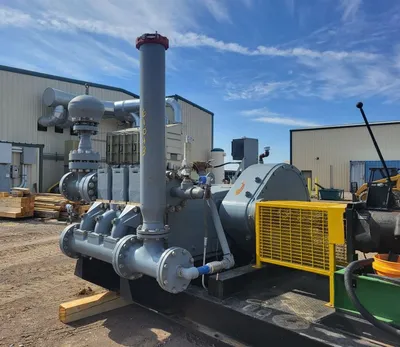

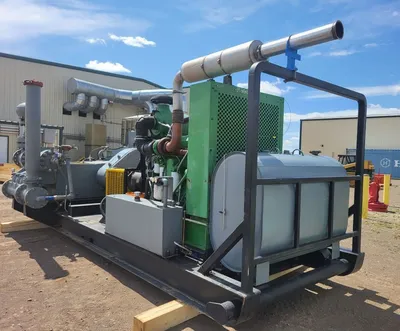

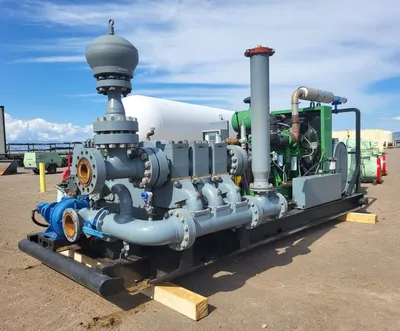

Used Oilwell A-348-5 pump with a Rebuilt John Deere Engine 6125HF001, following features below:
• 8" stroke
• 500 HP
• Aluminum Bronze fluid end material

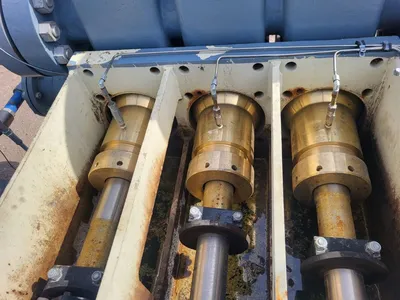

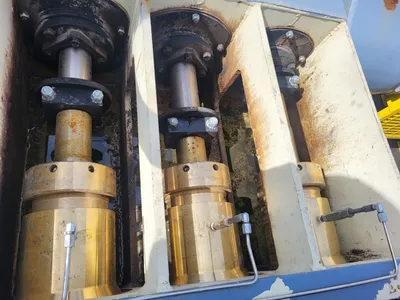

• 5" Steel Plungers
• 4.604:1 Standard 6.86:1 Optional Gear Ratio
• AR Valves
• 8" ANSI 300# suction
• 6" ANSI 1500# discharge
• Weight: 30,000 lbs. approx. whole skid
• Dims: 109"(L)x 41"(W)x 55"(H)- pump only

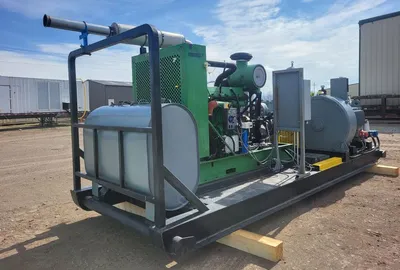

• Dims: 249"(L)x 110"(W)x 98"(H)- whole unit

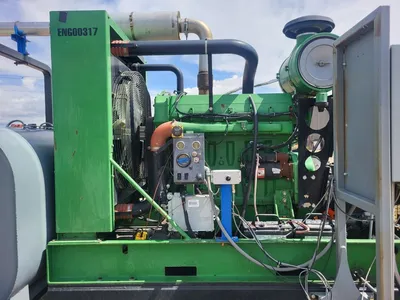

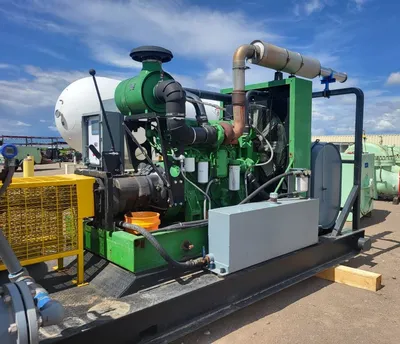

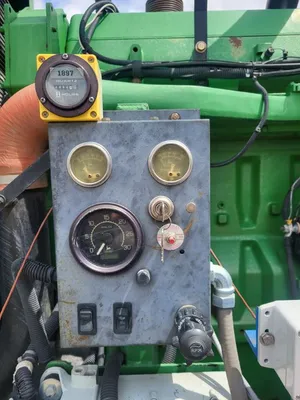

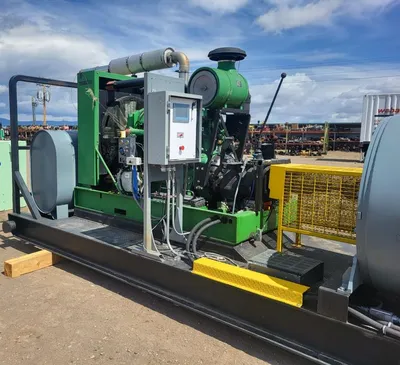

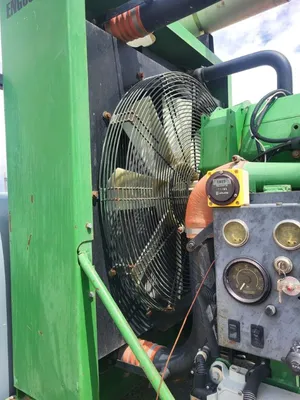

Used Rebuilt John Deere 6125HF001 Engine with following features:
• 469 HP
• 2000 RPM
• 6 Cylinder
• 118.4 mm (4.66 in) Bore
• 136.0 mm (5.35 in) Stroke
• 9 L Displacement
• Turbocharged and air-to-air aftercooled aspiration
• 14" Flywheel size
• Tier 3 Rating
• Weight: 30,000 lbs. approx. whole skid
• Dims: 116"(L)x 51"(W)x 69"(H)- engine only
• Dims: 249"(L)x 110"(W)x 98"(H)- whole unit
• Manufacture date: 10-06-1998
Applications: Well Service Pump, Water Transfer Pump, Production Pump, Mud Pump, Kill Truck Pump, Lift Station Pump, Condensate Pump, Cooling Tower Pump, Geothermal Pump, Gathering Pump
HP: 500
RPM: 260
PSI: 1455
GPM: 530
Ratio: 6.8600
BPD: 18171
BPD: 18171
BPH: 757.1
BPM: 12.62
L/SEC: 33.44
L/MIN: 2006
M3/SEC: 0.0334
M3/HR: 120.38
M3/DAY: 2889
