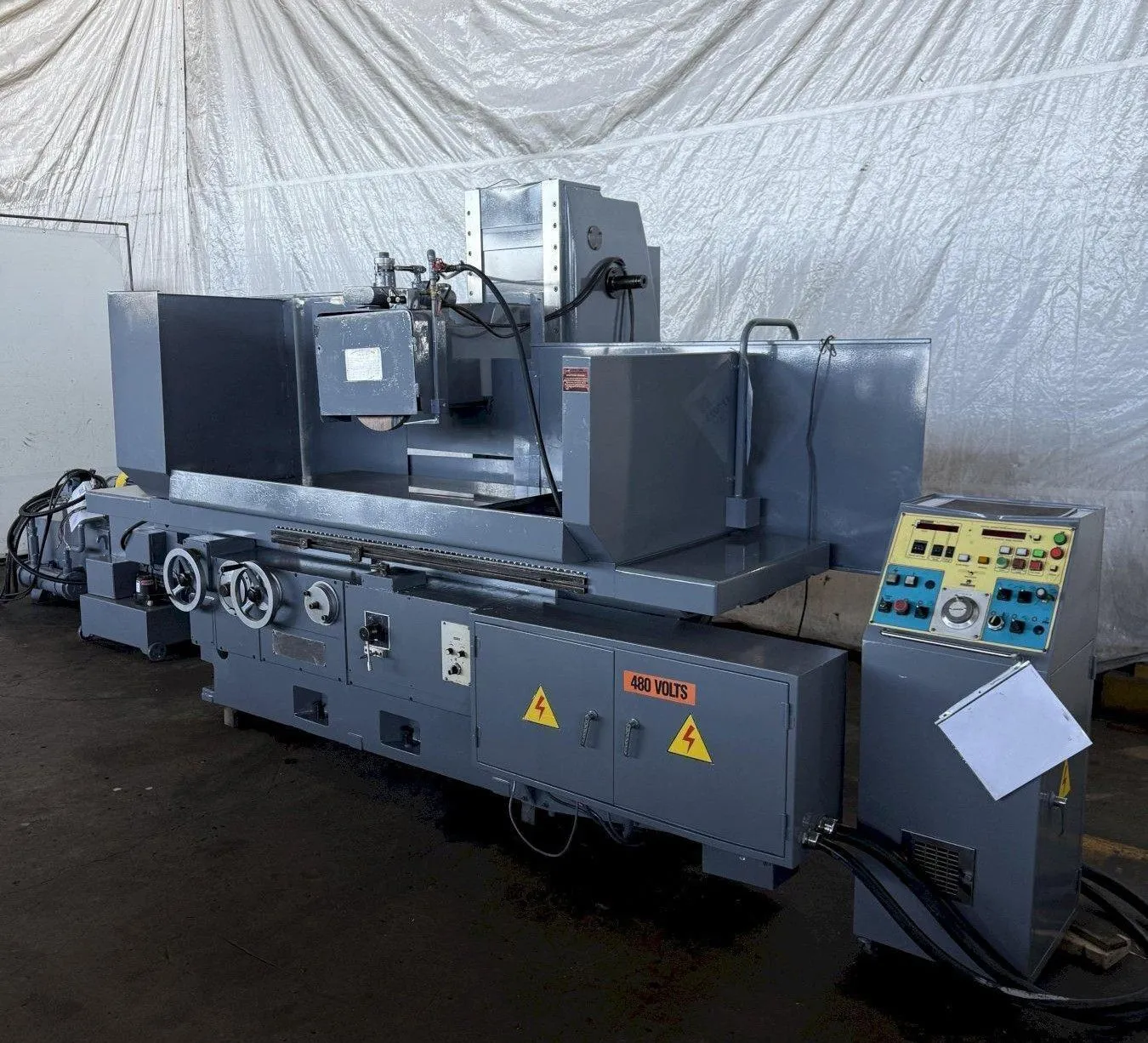

24" X 48" ACER MODEL 2448-AHD SEMI-AUTOMATIC HYDRAULIC SURFACE GRINDER
TABLE SIZE .......................... 24" X 48"
LONGITUDINAL TRAVEL ................. 52"
CROSS TRAVEL ........................ 24.5"
VERTICAL TRAVEL ..................... 33"
SPINDLE CENTER LINE TO TABLE TOP .... 33"
WHEEL SIZE .......................... 20" X 5" X 2"
SPINDLE SPEED ....................... 1,150 RPM
MOTOR HORSEPOWER .................... 15
DIMENSIONS .......................... 138" X 119" X 103"
WEIGHT .............................. 16,500 LBS.
EQUIPPED WITH:
2 SPEED RAPID ELEVATION TRAVEL
HYDRAULIC TABLE
AUTO INCREMENTAL DOWNFEED
ELECTRONIC CROSS FEED
CLASS 7 SPINDLE BEARINGS
AUTO LUBRICATION
COOLANT SYSTEM W/ FILTER
SPLASH GUARD
HALOGEN WORK LIGHT
GRINDING WHEEL
WHEEL BALANCING BASE & ARBOR
| Table-W | 24" | 609.6 mm |
| Table-L | 48" | 1,219.2 mm |
| Power | 15 hp | 11.2 kW |
| Grinding Wheel Width | 2" | 50.8 mm |
| Grinding Wheel Dia. | 20" | 508 mm |
