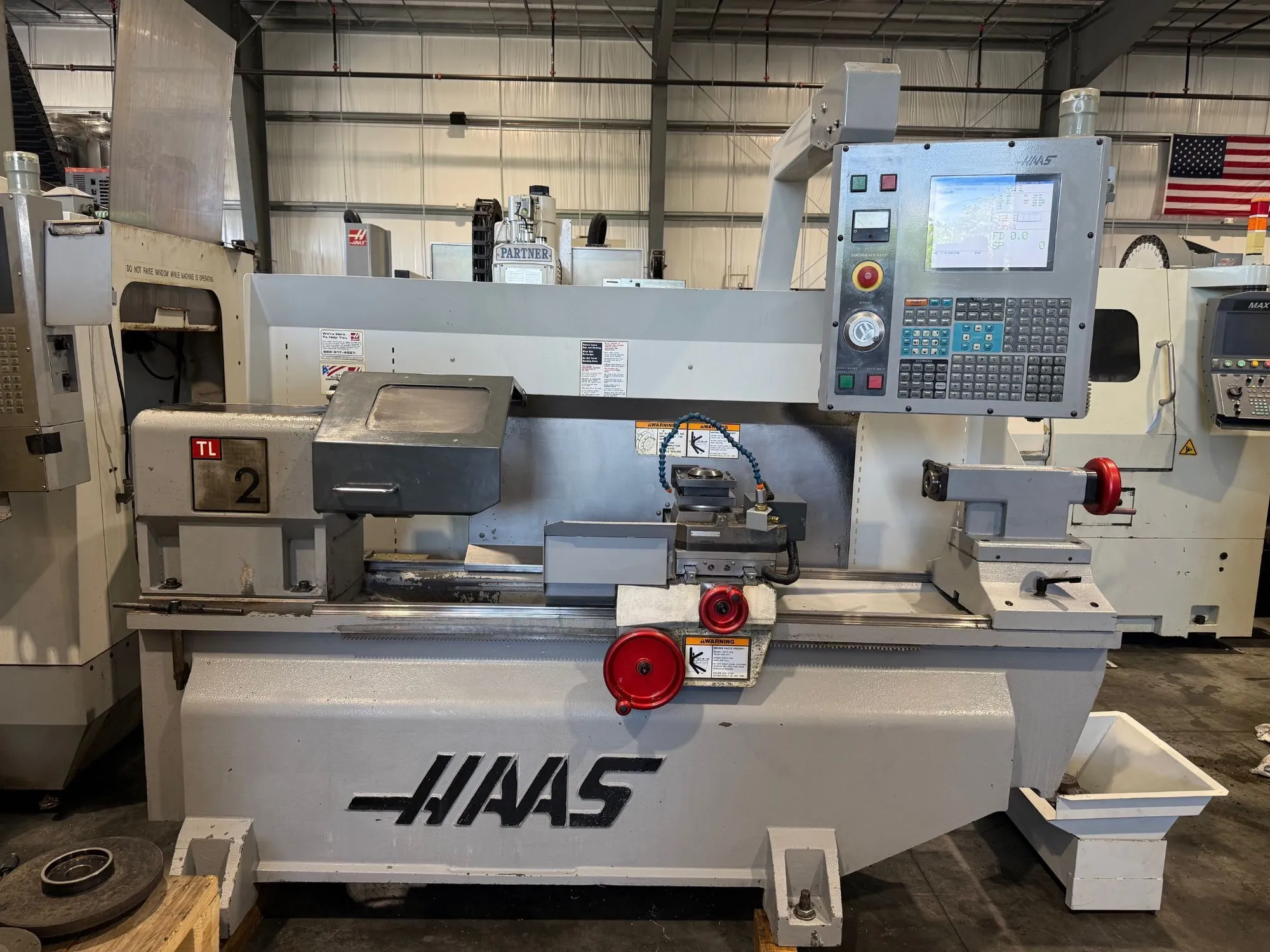

HAAS TL-2 CNC Toolroom Teach Style Lathe 2005’ USA #8266
| Swing | 20" | 508 mm |
| Machining Length | 48" | 1,219.2 mm |
| Chuck Size | 8" | 203.2 mm |
| Power | 12 hp | 8.9 kW |
| Max RPM | 2,000 RPM | 2,000 RPM |
| Turning Dia | 16" | 406.4 mm |
| Dimensions | 109” x 69” W x 83” H | 109” x 69” W x 83” H |
| Weight | 5000 Lbs. | 5000 Lbs. |
HAAS TL-2 CNC Toolroom Teach Style Lathe 2005’ USA #8266
Reference #8266
Model # TL-2
Serial # 70729
Year of manufacture- 7/2005’
Maximum swing- 20”
Swing over cross slide- 11”
Maximum cutting diameter- 16”
Maximum cutting length- 48”
Distance between centers- 48”
X axis travel- 8”
Z axis travel- 48”
Rapids on X axis- 450 I.P.M.
Rapids on Z axis- 450 I.P.M.
Spindle nose- A2-6
Max spindle speed- 1800 R.P.M.
Spindle bore- 3.00”
Control options-
Machine hours- Servo time 1,696 Motion time 4,926, Spindle time 3,877
4 position turret option
Larger spindle option A2-6
Tailstock
BTC 10” 3 Jaw Chuck
Coolant tank & pump
(4) Leveling pads
Chuck wrench
Splatter shield
Live center
Main spindle motor 10 H.P.
Machine can run on 208 volt 3 phase / 240 single phase
Machine is currently wired for 208 volt / 3 phase / 60 H.Z.
Machine weight- 5000 Lbs.
Machine dimensions- 109” x 69” W x 83” H
Machine location- F.O.B. Sarasota, Florida
