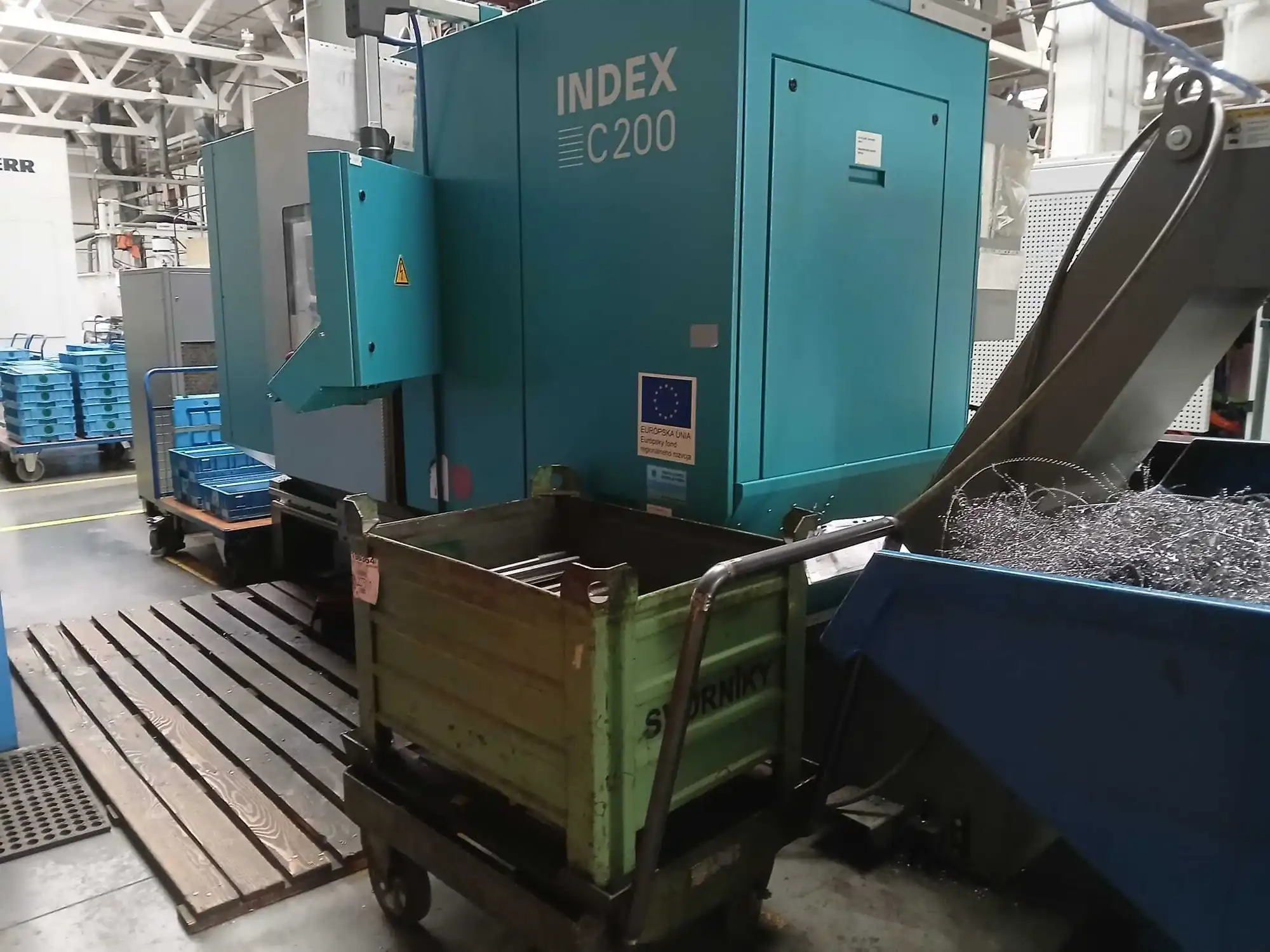

USED 2017 INDEX C200

INDEX C200
Mfd. 2017

Tooling in photos to be divided between 3 C200 machines available.

Power-on hours: ~49,960 h

Hydraulic hours: ~48,700 h

Main spindle hours: ~24,800 h

Counter spindle hours: ~24,000 h

Stroke mm 20

Clamping pressure min.Max. bar 8/80

Piston Area pressure cm^2 57

Area piston thrust cm^2 57

pressure Force Max. CN 45,6

Tensile force Max. CN 45,6

10350989 1 INDEX C200 CNC-turning machine with 3 revolvers

with Siemens-Based Index C200 control system

SINUMERIK 840D SolutionLine

- Rigid cast iron bed, perpendicular angle to the ground, excellent gradient

chips

- The kinematics of tool head movements guarantees maximum

damping, reducing tool wear

- Patented plate supports with excellent properties

damping and stiffness

The motion of the X-axis is derived through kinematics.

"double scissors" guaranteeing high dynamics

- Thermosymmetric spindle

Control system Index C200

Identical to SIEMENS SINUMERIK 840d SolutionLine

- Modular multiprocessor control system,

SINAMICS with 120 drives

- Siemens Operate control box, display in language

Germany

- language switching

WINDOWS and flat screen

- 2x USB 2.0 connection on the control panel, 2x USB connection

on the control panel

- NCU 720.3 B PN NCK

- Integrated PLC 317-3 PNDP and ET200S

- Security features implemented in software through SIEMENS

Safety-Integrated and ProfiSave

Extended machining cycles consisting of:

Einstechzyklus

Freistechzyklus

Gewindestrehlen with 4 point move

Lighting work. space in LED design

1 flat color TFT screen, 18.5"

PCT-Touch IP65 front panel

10142338 1 Main spindle dia 65

Spindle end AD140mm, ID 85mm

Material passage Max. mm 65

Speed max. 1 / min 5000

Front bearing diameter mm 110

Power 100% / 40% kW 31,5/32

Torque Max. 100%/40% Nm 125/170

Continuously synchronous variable speed drives

Main spindle with hollow clamping cylinder D65/20

for pincer clamping or Chuck clamping

Hydraulic control with clamp metering

C axis of main spindle

Drive: hollow spindle motor clamping cylinder, metering

system directly on the spindle

Resolution 0.00014 degrees

Positionsstreubreite (VDI/DGQ 3441)

Psmax = 0.01 degree

11040430 pressure clamping device

Clamping pressure 8-75 bar adjustable

For anti-spindle clamping cylinder

10038475 1 tool carrier 1

X-axis work vehicle

mm

110

X-axis quick shift m / min 30

X-axis acceleration m / s^2 9

X-axis shear force N 5000

Z-axis work vehicle

mm

320

Z-axis quick feed m / min 50

Z-axis acceleration m / s^2 9

Z-axis shear force N 5000

Y-axis working vehicle

mm

100

Y-axis quick feed m / min 15

Y-axis acceleration m / s^2 9

Y-axis shear force N 5000

Offer: 1702114 - 02 / 30.3.2017

CNC-lathe INDEX C200 (GP3790. 0000F)

Revolver 1:

14 stations with cylindrical shank clamping D25x48 (DIN 69880),

W-grooves on the revolver-higher repeated accuracy

when replacing the tool. Centering plate set, V-strips, not

content of delivery, must be ordered separately.

Gearshift revolver AC motor, hydraulic locking

A driven tool is possible in each station of the revolver 1 .

Power 25% kW 10

Torque 25% Nm 16

Speed max. 1 / min 8000

10720950 1 tool carrier 2

X-axis working vehicle mm 110

X-axis quick shift m / min 30

X-axis acceleration m / s^2 9

X-axis shear force N 5000

Z-axis working vehicle mm 550

Z-axis quick feed m / min 50

Z-axis acceleration m / s^2 9

Z-axis shear force N 5000

Y-axis working vehicle mm 100

Y-axis quick feed m / min 15

Y-axis acceleration m / s^2 9

Y-axis shear force N 5000

Revolver 2:

14 stations with cylindrical shank clamping D25x48 (DIN 69880),

W-grooves on the revolver-higher repeated accuracy

when replacing the tool. Centering plate set, V-strips, not

content of delivery, must be ordered separately.

Gearshift revolver AC motor, hydraulic locking

A powered tool is possible in each station of the revolver 2.

Power 25% kW 10

Torque 25% Nm 16

Speed max. 1 / min 8000

10549080 1 high pressure coolant valve for tool carrier 1 and 2

11021423

Tool carrier 3

X-axis working vehicle mm 180

X-axis quick shift m / min 30

X-axis acceleration m / s^2 9

X-axis shear force N 5000

Revolver 3 :

14 stations with cylindrical shank clamping D25x48 (DIN 69880),

W-grooves on the revolver - all repeated accuracy

when replacing the tool. Centering plate set, V-strips, not

content of delivery, must be ordered separately.

Gearshift revolver AC motor, hydraulic locking

A powered tool is possible in any revolver Station 3 .

Power 25% kW 10

Torque 25% Nm 16

Speed max. 1 / min 8000

10669074 1 high pressure coolant valve for tool carrier 3

10080468 1 coolant through the main spindle, connected to the pump

cold. liquids 8 bar, with magnetic valve
