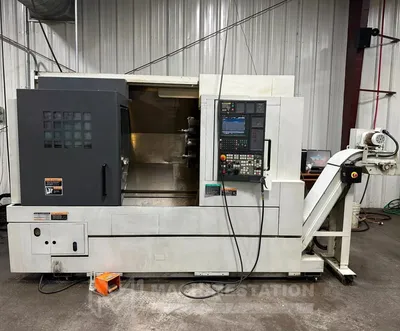

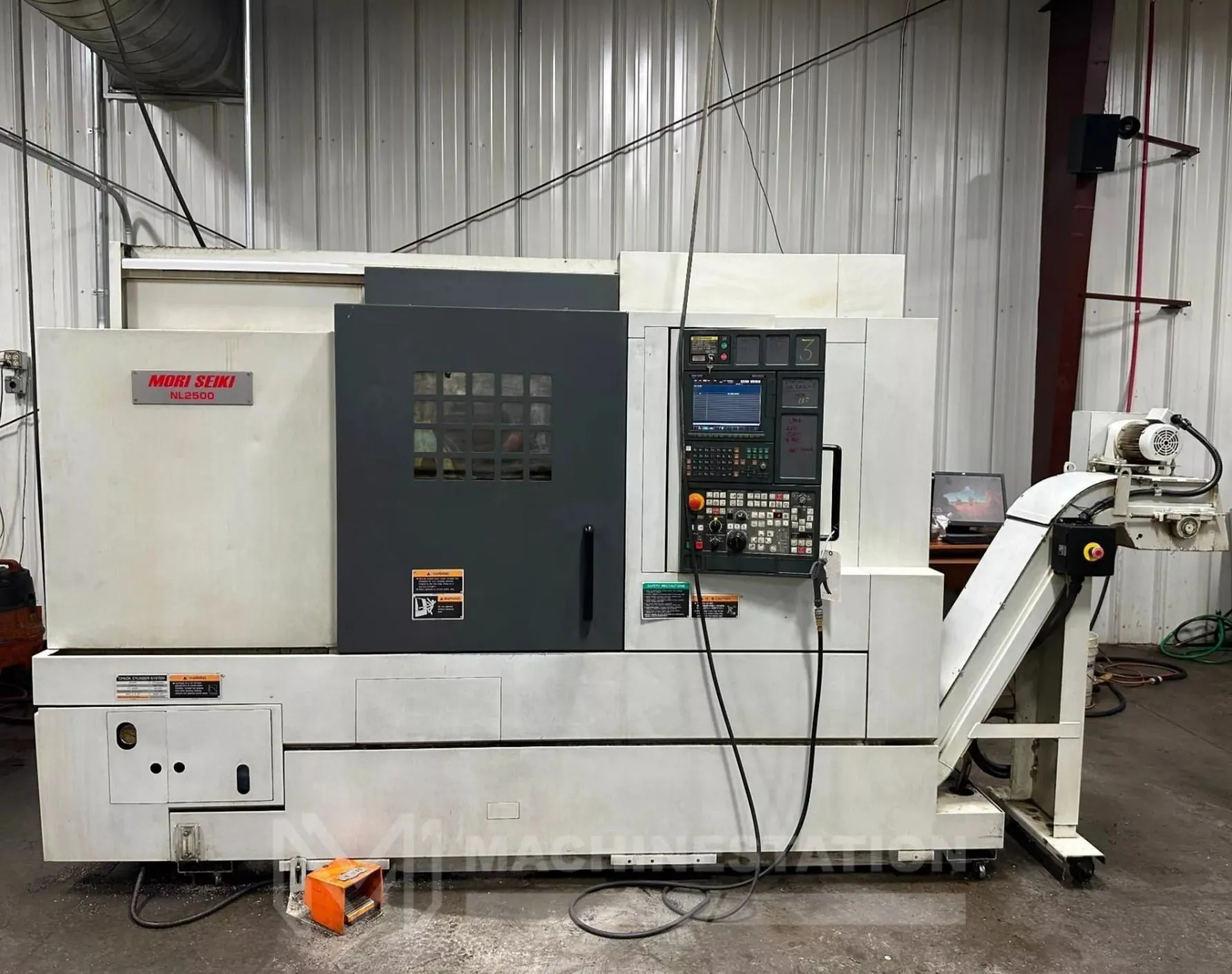

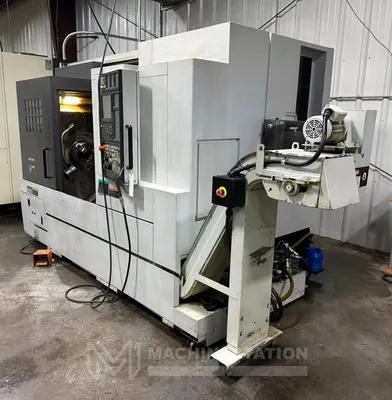

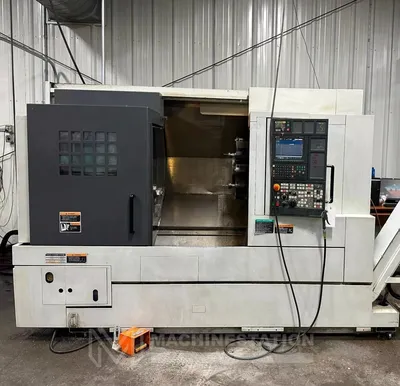

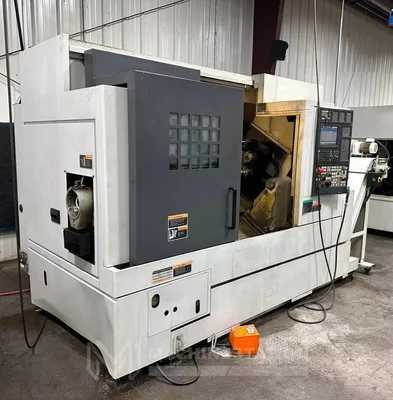

USED 2008 MORI SEIKI NL2500MC/700

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

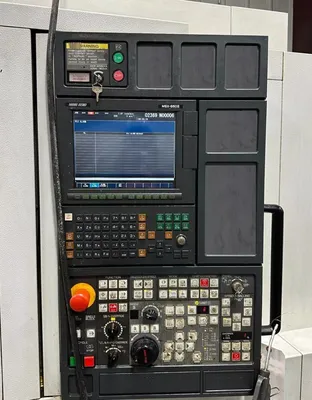

Mori Seiki MSX-850III CNC Control

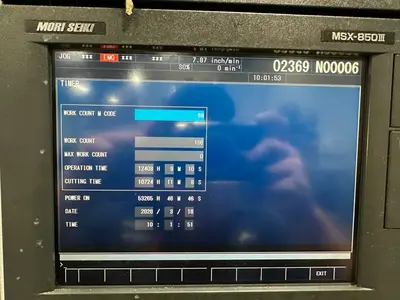

10,724 Hours Cutting Time
Heavy Duty Box Way Construction
Rigid Tapping
Coolant Tank
Note: Tool holders mounted on the turret are not included with the machine

Capacity:
Max Turning Diameter: 14.0″
Max Turning Length: 27.7″
Swing Over Cross Slide: 29.7″
Max Bar Capacity: 3.1″

Travels:
X Axis Travel: 10.2″
Z Axis Travel: 31.3″
C Axis: 360 Degree (0.001)
Rapid Traverse Rate X & Z Axis: 1181 IPM

Spindle:
Spindle Nose: A2-8
Spindle Bore: 3.6″
Spindle Speed: 4000 RPM
Spindle Motor: 25 HP

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.25 Second
Rotary Tool Speed: 6000 RPM
Rotary Tool Motor: 7.5 HP
Tool Holders Type: Bolt Mounted

Tailstock:
Tailstock Tapper: MT-5
Tailstock Body Travel: 28.9″
Tailstock Quill Diameter: 3.1″

General:

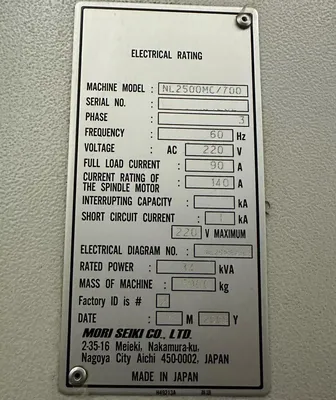

Power Source: AC 220 V Three Phase 60 Hz
Power Requirement: 34 kva
Overall Dimensions: 122″ x 76 ″ x 83″ High Apporx.
Weight : 13,000 lbs Approx.

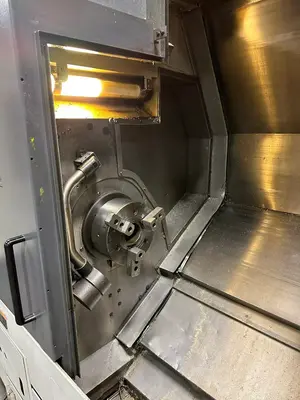

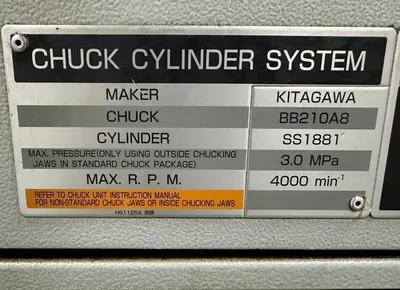

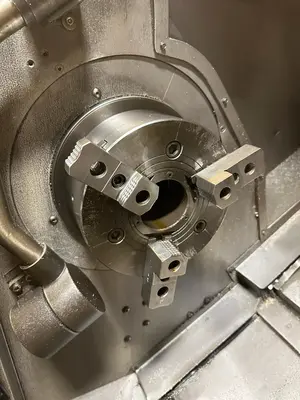

10″ 3-Jaw Kitagawa BB210 Hydraulic Chuck
Servo Controlled Full C Axis On Spindle
A2-8 Spindle Nose, 4000 RPM Spindle

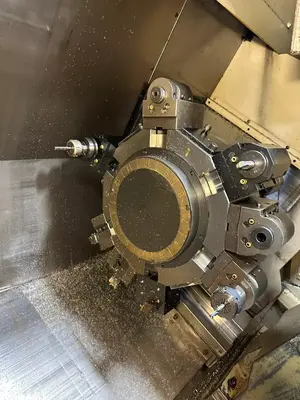

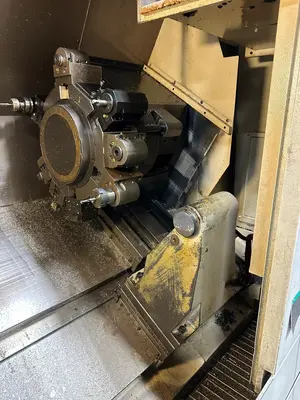

12 Station Live Tool Turret
Tool Presetter
Tailstock

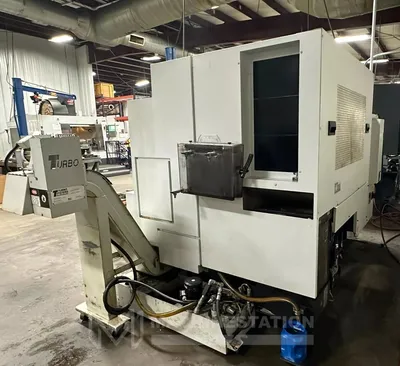

Chip Conveyor
Foot Switch
