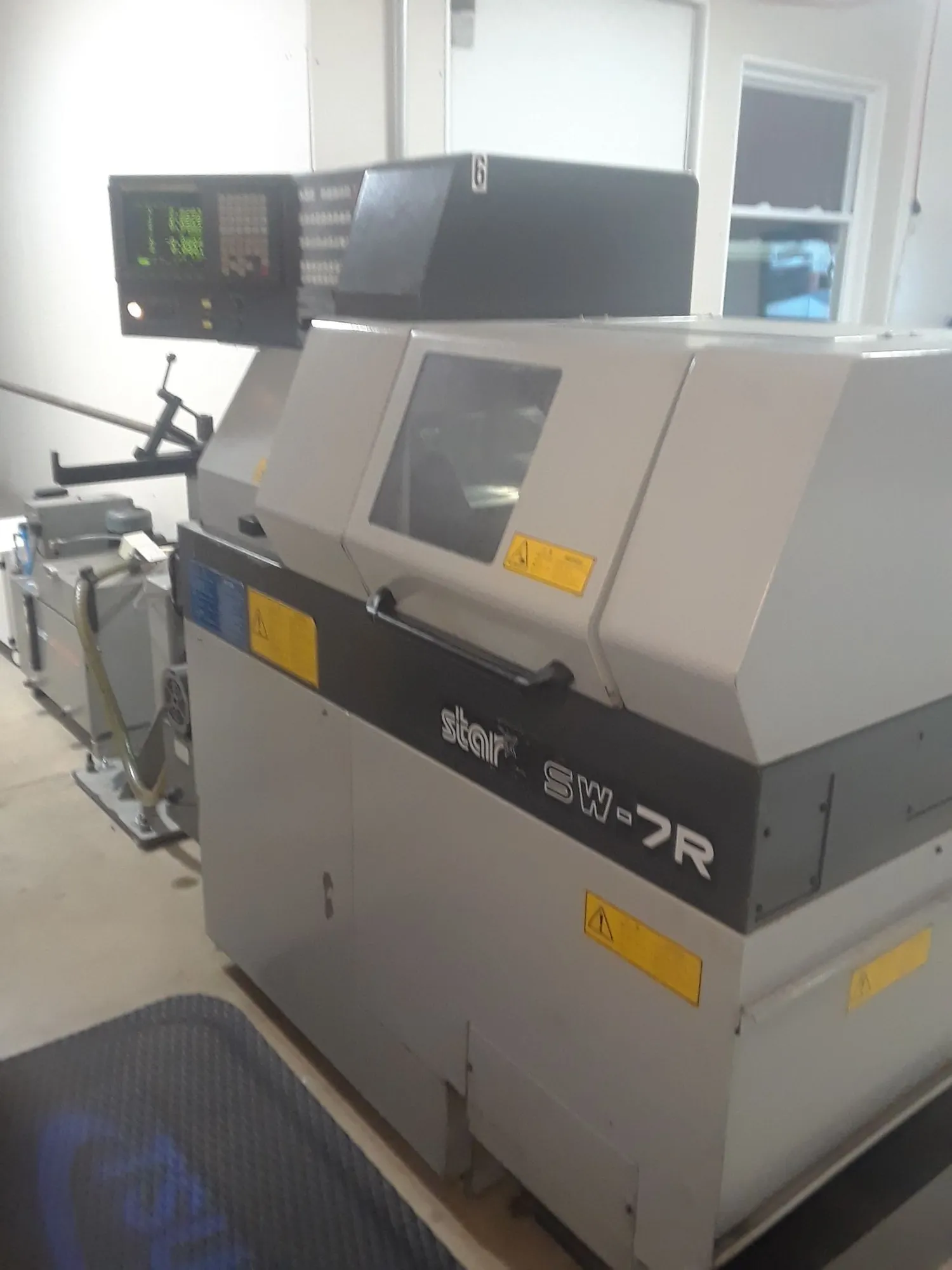

Star SW-7R CNC Swiss Lathe, New in 2001
| Capacity | 0.27" | 6.858 mm |
| Power | 2.2 kW | 3 hp |
| RPM | 15,000 RPM | 15,000 RPM |
| Swiss, Chucker or Convertible? | Swiss | Swiss |
| Main Spindle Indexing | Full C | Full C |
| Sub-Spindle Indexing | 1 Degree | 1 Degree |
| Control | CNC (Fanuc 16-T) | CNC (Fanuc 16-T) |
| Dimensions | 6.5' x 4' x 5.5' | 6.5' x 4' x 5.5' |
| Weight | 3,100 lbs | 3,100 lbs |
General Specifications:
Maximum Turning Diameter: 7 mm (0.27″)
Maximum Headstock Stroke: 70 mm (2.75″)
Maximum Drilling Capacity:
Stationary Tool: 4 mm (0.15″)
Power-Driven Attachment: 3 mm (0.11″)
Maximum Tapping Capacity:
Stationary Tool: M4 x P0.7
Power-Driven Attachment: M2.5 x P0.45
Maximum Milling Capacity: 6 mm (0.23″)
Maximum Die Cutting Capacity: M4 x P0.7
Maximum Slotting Capacity: 1.0mm x 2.0mm
Main Spindle:
Spindle Speed: 500 – 15,000 RPM
Minimum Indexing Angle: 0.01° (C- Axis Control)
Main Spindle Bore: 11mm (0.43″)
Tool Post Specs:
Type: Twin Gang Tool Post
Tool: 6
Power Driven Tools: 4
Sub Spindle Specs:
Maximum Chucking Diameter: 7mm (0.27″)
Maximum Part Length for Parts Ejection: 70 mm (2.75″)
Maximum Part Projection Length: 20mm (0.78″)
Spindle Speed: 500 – 10,000 RPM
Maximum Indexing Angle: 1 degree standard
4 Spindle Endworking Attachment:
Number of Tools: 4
Maximum Drilling Capacity: 4mm (0.15″)
Maximum Tapping Capacity: M4 x P0.7
Maximum Die Cutting Capacity: M4 x P0.7
Machine Dimensions: 6.5' x 4' x 5.5'
Machine Weight: 3,100 lbs
Fanuc 16-T Control
LNS Mono Bar Loader
