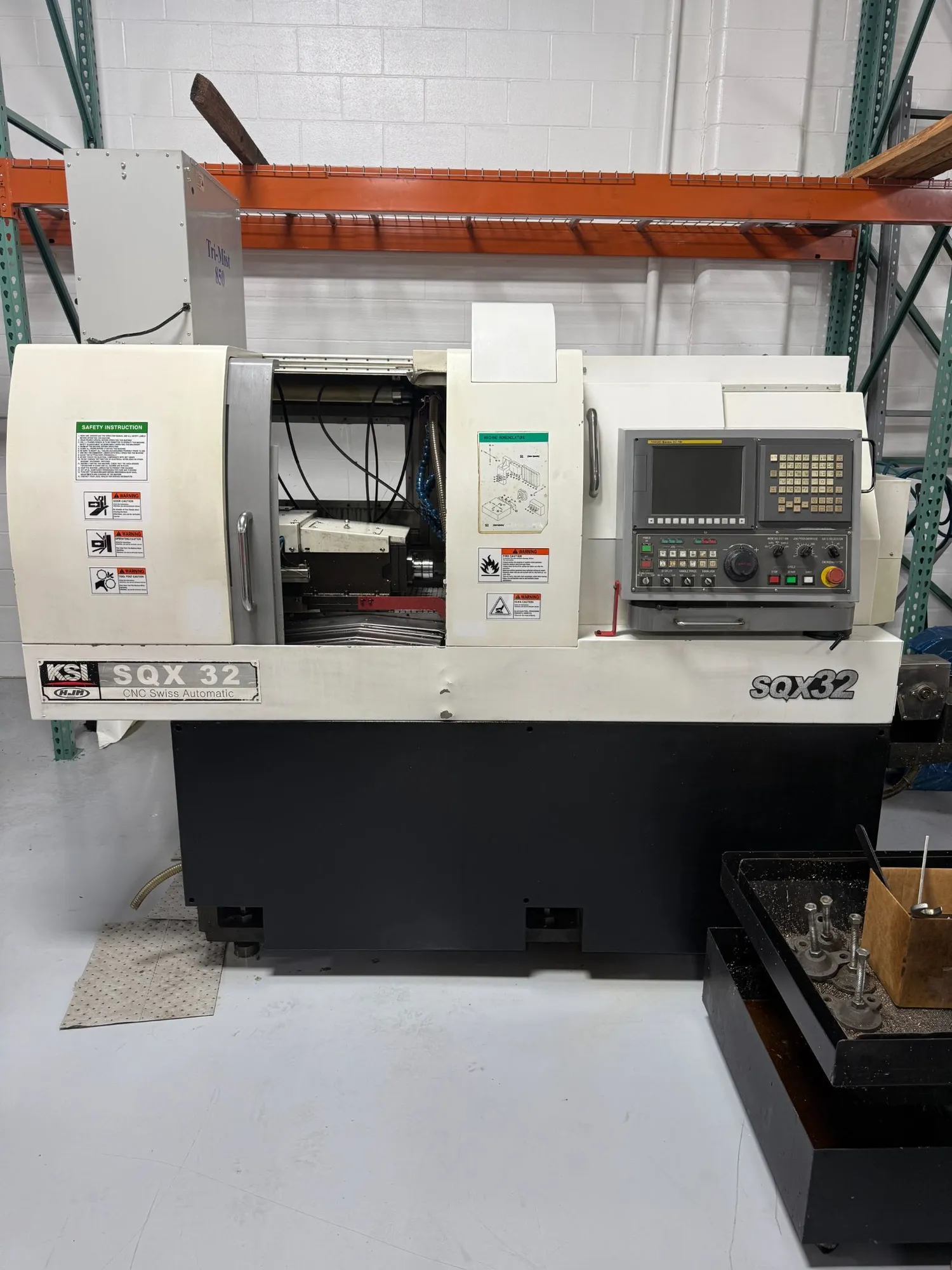

KSI SQX-32 CNC Swiss Lathe
| Capacity | 32 mm | 1.2598" |
| Power | 10 hp | 7.5 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # Axis | 7 | 7 |
| Swiss, Chucker or Convertible? | Swiss | Swiss |
| Main Spindle Indexing | Full C | Full C |
| Sub-Spindle Indexing | Full C | Full C |
| Live Back Working Tools | Yes | Yes |
| B-Axis? | No | No |
| Control | CNC (Fanuc 18i-TB) | CNC (Fanuc 18i-TB) |
| Weight | 7,716 lbs | 7,716 lbs |
General Specifications:
Turning Diameter: 1.25" (32mm)
Stroke: 11" (280mm)
Main Spindle Speed: 10,000 RPM
Sub-Spindle Speed: 8,000 RPM
Additional Positive Brake: 1/1,000 Degrees
Rapid Traverse Rate: 1259 IPM
Tooling
OD Tools: 6
Front Work Tools: 5
Cross Driven Tools: 4
Back Work Tools: 4
Eccentricity Tools: 3
Main Spindle Motor: 10 HP
Sub-Spindle Motor: 3 HP
Cross Drill: 1.5 HP
Machin Weight: 7,716 lbs
Fanuc 18iTB CNC Control
12' Magazine Barfeed
MP Systems High Pressure Coolant System
