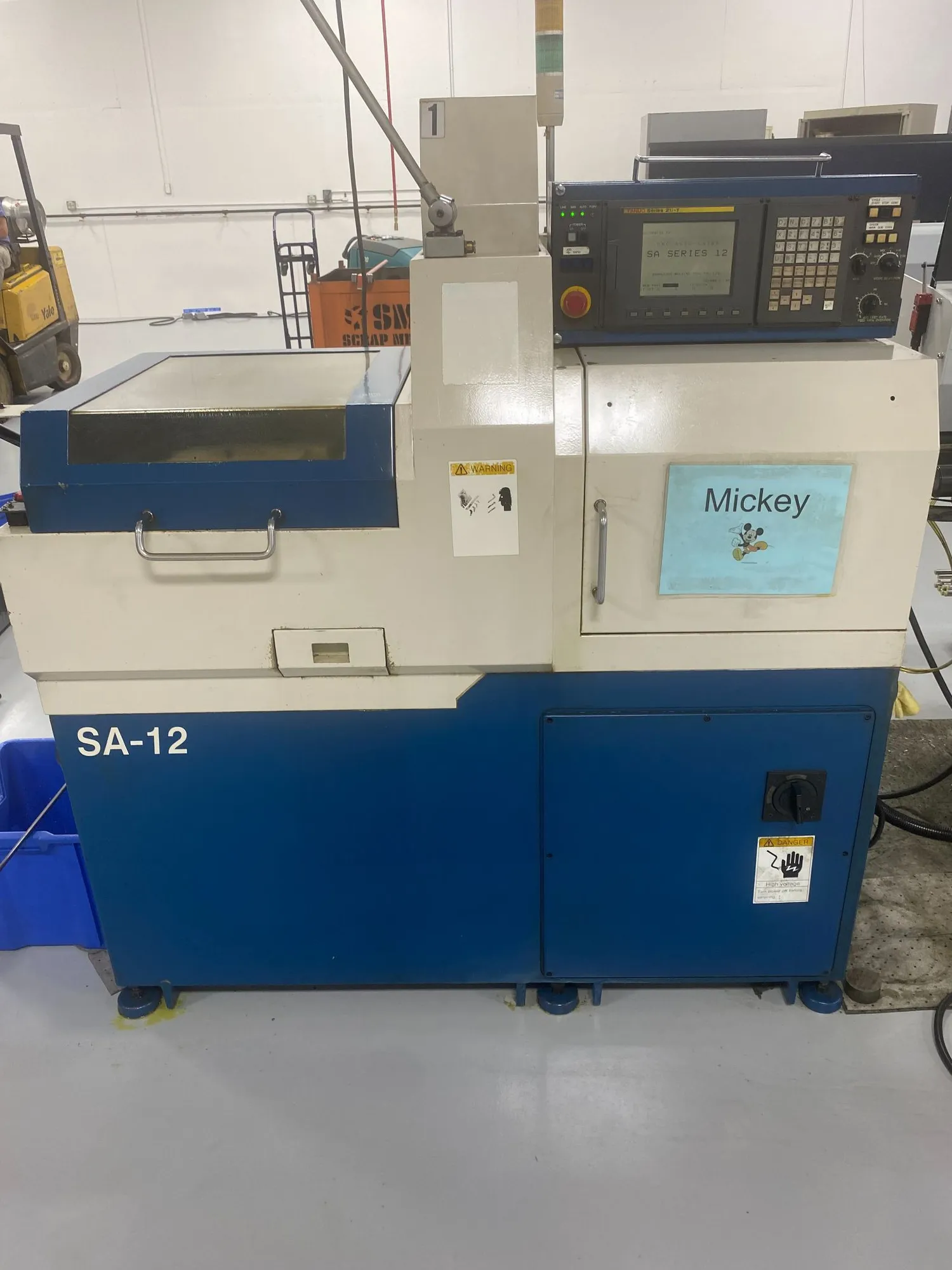

Nexturn SA-12 CNC Swiss Lathe, New in 2002
| Capacity | 0.47" | 11.938 mm |
| Power | 3 hp | 2.2 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # Axis | 4 | 4 |
| Swiss, Chucker or Convertible? | Swiss | Swiss |
| Live Back Working Tools | No | No |
| Control | CNC (Fanuc 21i-T) | CNC (Fanuc 21i-T) |
| Dimensions | 62" x 39" x 65" | 62" x 39" x 65" |
| Weight | 3,100 lbs | 3,100 lbs |
General Specifications:
Bar Diameter: 0.47" (12mm)
Bar Length: 6.2" (160mm)
Main Spindle Drilling/Tapping: 0.27" (7mm) / M6
Sub-Spindle Chucking Diameter: 0.47" (12mm)
Back-End Face Drilling/Tapping: 0.27" (7mm) / M6
Cross Drilling/Tapping: 0.27" (7mm) / M5
Cross Disc-Mill Diameter: 1.18" (30mm)
Main Spindle Speed: 10,000 RPM
Sub-Spindle Speed: 8,000 RPM
Cross Spindle Speed: 5,000 RPM
Number of Tools: 18
OD Bite / Cross Live Tool: 5 / 3
Front-End Face Tools: 5 Fixed
Back-End Face Tools: 5 Fixed
Bite Shank Size: 0.39" x 4.72" (10mm x 120mm)
Rapid Traverse: 1259 IPM
Main Spindle Positioning Angle: 1/1,000 Degree
Main Spindle Motor: 3 HP
Sub-Spindle Motor: 1.5 HP
Cross Drill/Mill Motor: 1.34 HP
Machine Dimensions: 62" x 39" x 65"
Machine Weight: 3,100 lbs
Fanuc 21i-T CNC Control
KSI BWG Bar Loader
