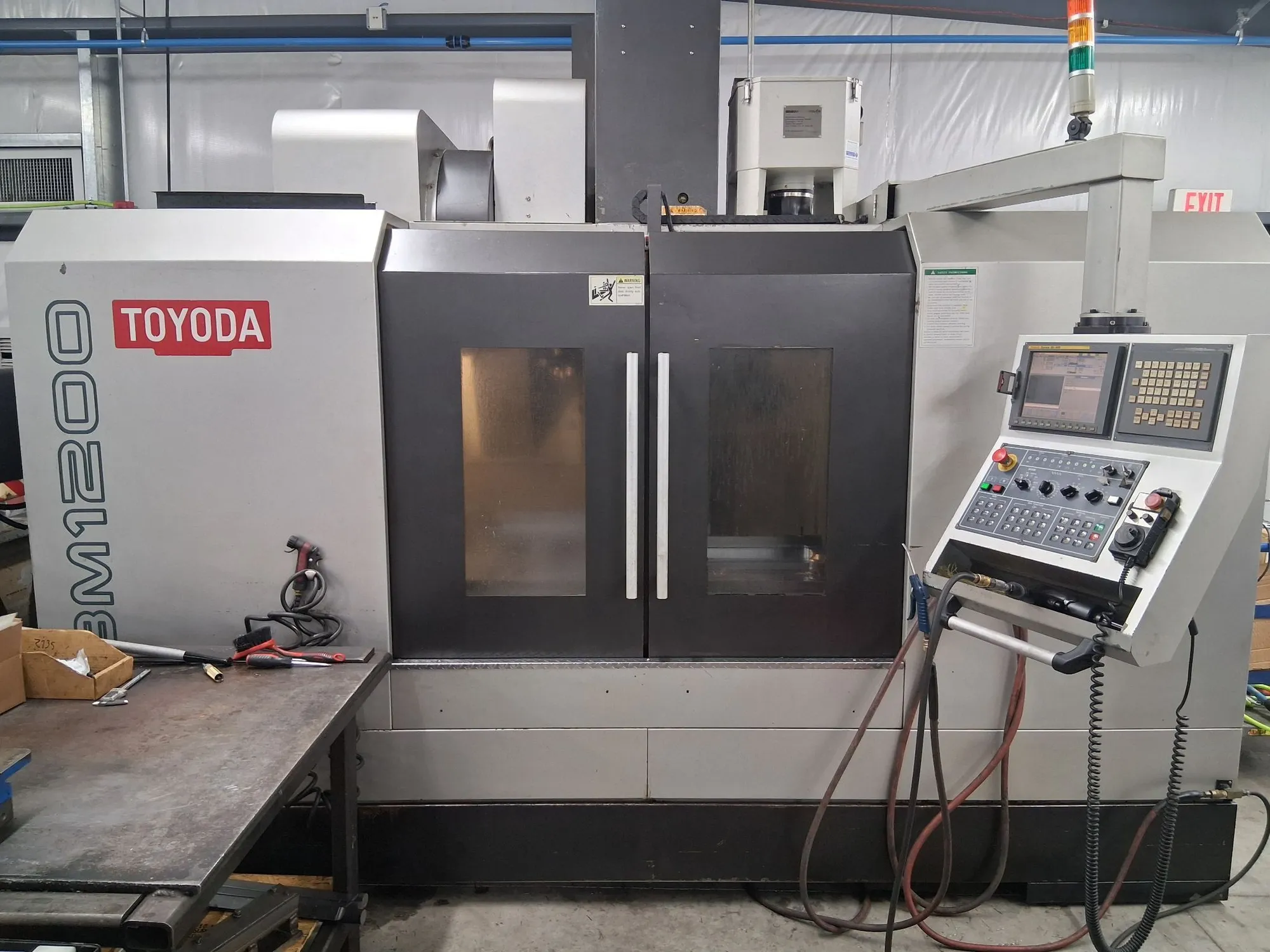

USED 2007 TOYODA BM1200

Travels
• X‑axis: 47.24 in
• Y‑axis: 23.62 in
• Z‑axis: 23.62 in
• Spindle‑to‑table: 4.92 – 28.54 in
Table
• Size: 51.18 × 23.62 in
• Max table load: 2,645 lb
Spindle
• Speed: 6,000 RPM
• Taper: CAT/BT‑50
• Motor: 25 HP
• Gear ranges: 2‑speed gearbox (high torque)
Feedrates
• Rapid (X/Y/Z): 944 / 944 / 787 IPM
• Cutting feed: 900 IPM
Tool Changer
• Capacity: 30 tools
• Machine weight: 16,093 lb

Fanuc Series 18iMB Control
Box‑way construction
50‑taper geared spindle
High‑rigidity frame for heavy cutting

The BM1200 is the mid‑large model, optimized for mold work, heavy hogging, and large plate machining.
