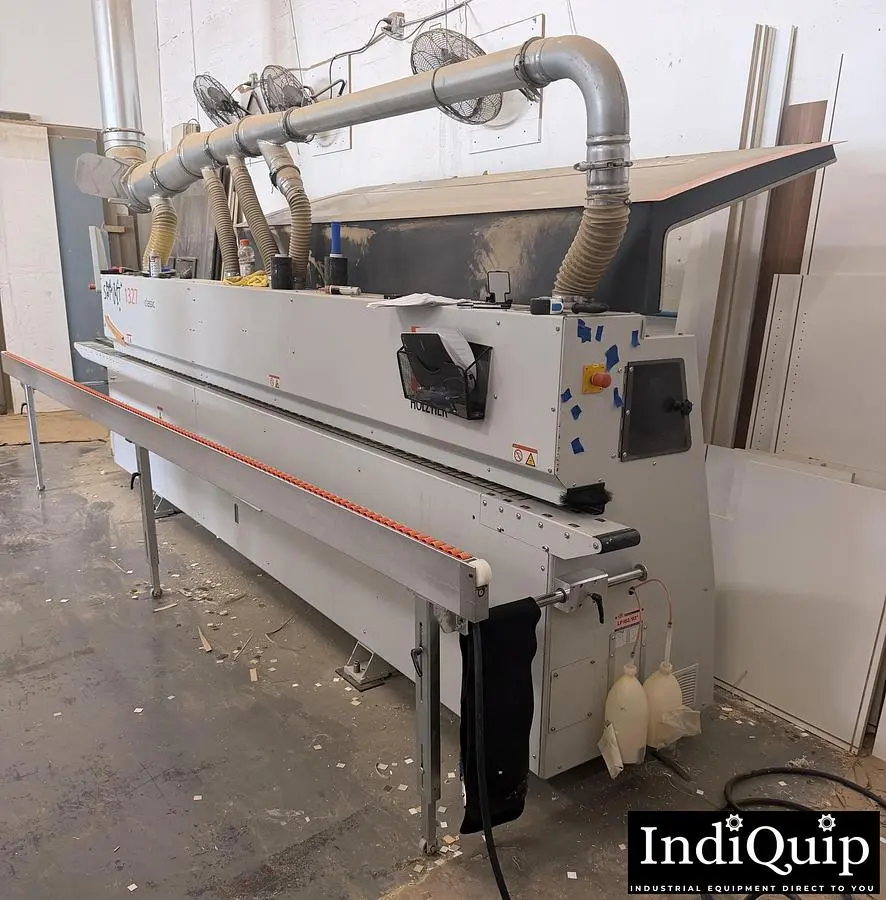

USED 2019 HOLZ-HER SPRINT 1327 CLASSIC

The 2019 HOLZ-HER Sprint 1327 Classic is a fully automatic edgebander engineered to deliver industrial-grade edge quality in a compact, professional format. Built on a torsionally stiff welded machine column for long-term precision, this machine is equally at home in a high-volume cabinet shop or a custom millwork operation.
At the heart of the Sprint 1327 Classic is HOLZ-HER's patented Glu Jet thin-film gluing system — a technology that processes both EVA and PUR adhesives with a 3-minute heat-up time and 3-minute glue change, making adhesive transitions fast and practical. PUR capability means waterproof, high-strength bonds ideal for kitchen and bath cabinetry, all without the need for a separate glue basin or nitrogen tanks. The result is a visually seamless zero joint fully equivalent to industrial laser edging.
The machine's SYNCHRO 6-fold edge magazine with synchronized drive minimizes intervals between workpieces and optimizes edge protrusions automatically, directly improving throughput. Feed rates are adjustable from 10 to 18 m/min, and the machine accepts workpieces from 160 mm in length, 60 mm in width, and between 8 and 60 mm in thickness — covering the full range of typical panel processing demands.

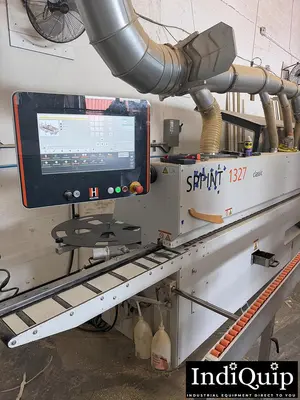

Setup and operation are managed through the HOLZ-HER Edge Control Touch — a 18.5-inch touchscreen control panel with rotating and swiveling mount, self-explanatory graphic pictograms, and comprehensive program memory. NC servo-axes enable fully automatic, repeatable positioning at the touch of a button, eliminating manual adjustment errors. Network connectivity, USB data backup, and barcode interface support integration into modern production environments.

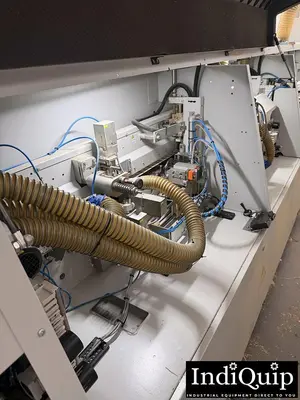

Standard equipment includes a two-motor end trimming unit, 60 mm pre-milling, application-controlled glue scraper with pre and post tracing, and a 5-degree pivoting buffing unit for a complete, finished edge in a single pass.
The Sprint 1327 Classic represents a proven investment for shops demanding consistent, professional edgebanding results with minimal operator intervention.

Feed Rate: 10 – 18 m/min
Min. Workpiece Length: 160 mm
Min. Workpiece Width: 60 mm
Workpiece Thickness: 8 – 60 mm
Edge Width: 0.4 – 8 mm
Control: PPC 315 with Touchscreen (18.5" touch screen, 16:9)
Glue System: Glu Jet (Thin Film Technology) – EVA & PUR capable
Magazine: SYNCHRO 6-fold edge magazine
Pre-Milling: 60 mm diameter
End Trimming: Two-motor
Glue Scraper: Application-controlled, with pre and post tracing
Buffing Unit: Pivoting 5°
