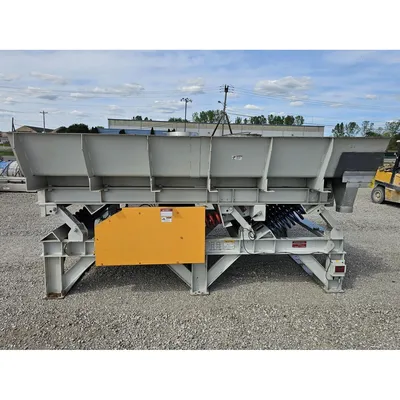

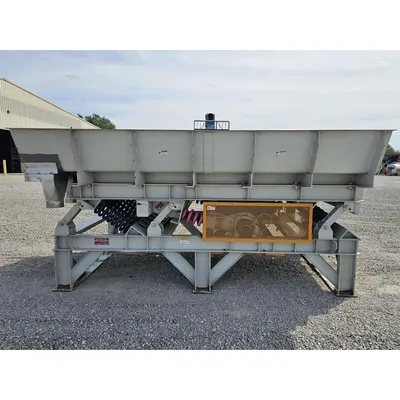

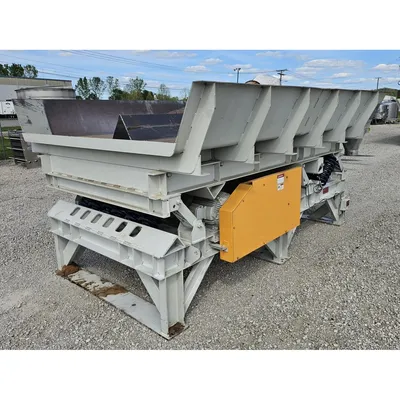

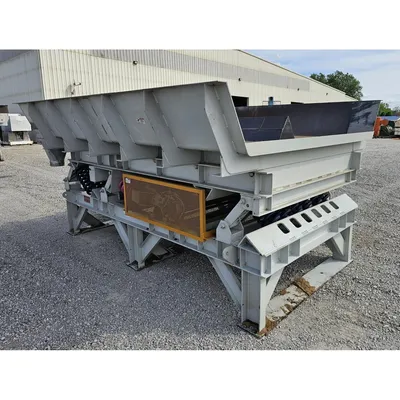

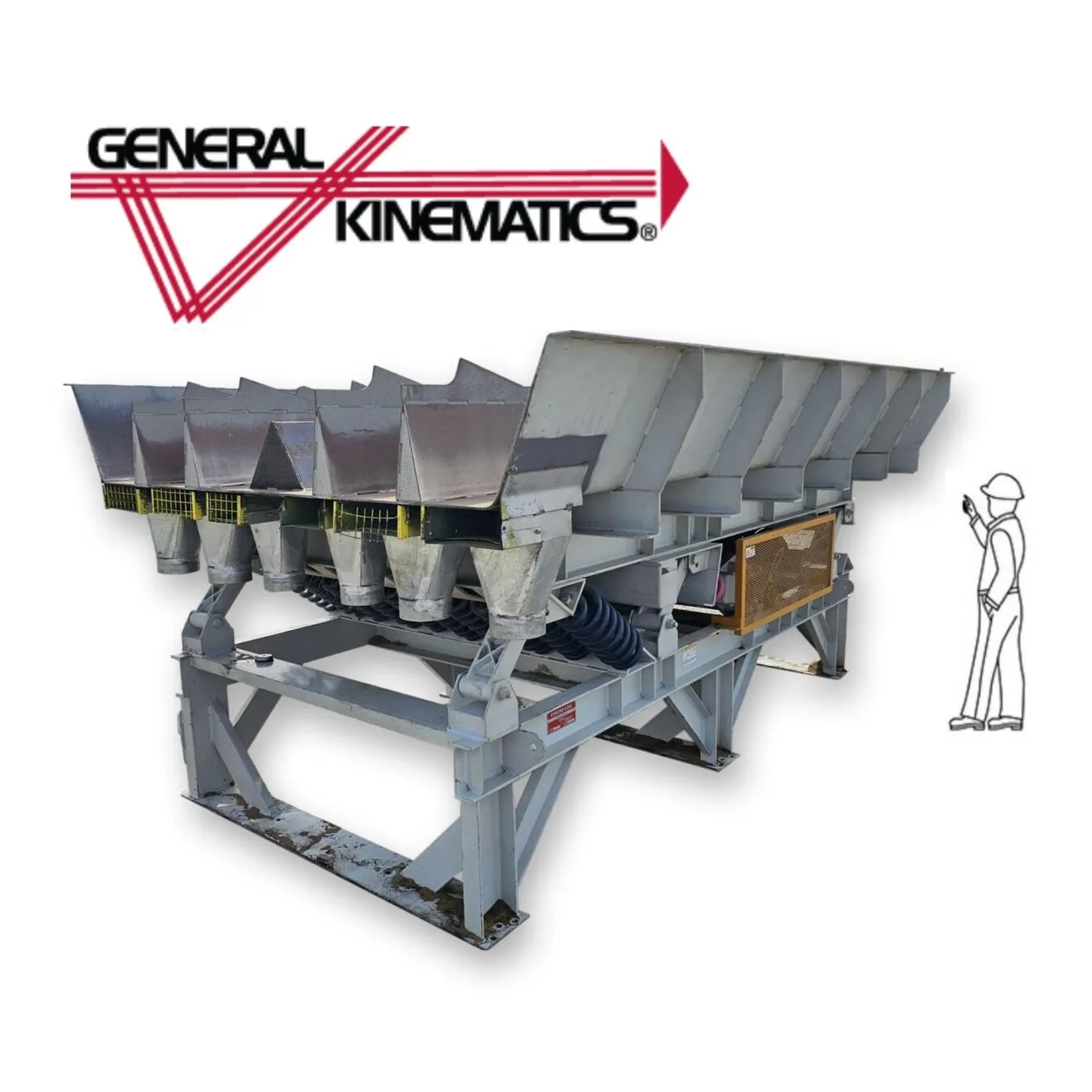

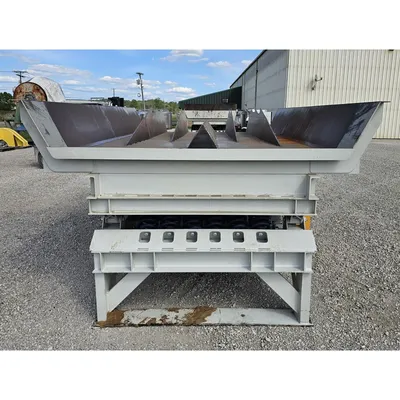

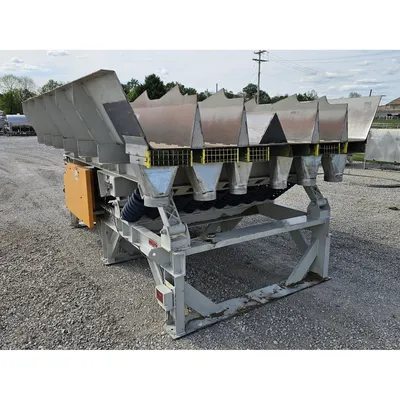

USED GENERAL KINEMATICS SCRT 96/114X18X13.5

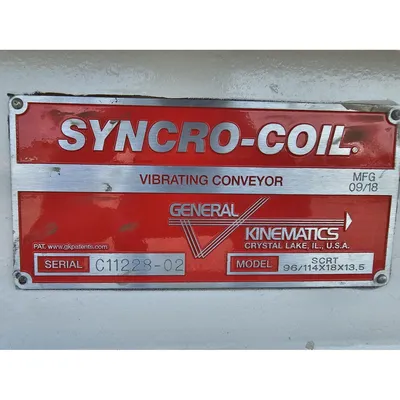

Serial No: C11228-02
For medium to heavy duty conveying applications.
Designed for length-wise orienting and conveying 3"-2"W X 3'L X 1.25" thk. barrel staves.
Design Capacity: 60 staves/minute @ 50LBS per cubic feet
Conveyor Deck: 9'-6" wide X 13'-6" long, 18" sidewall

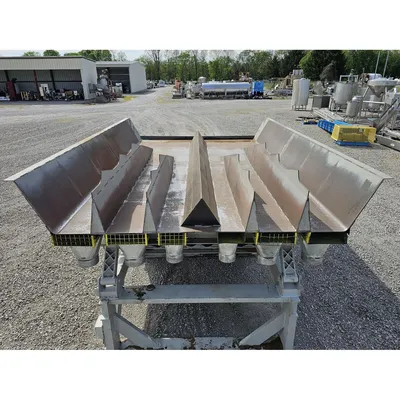

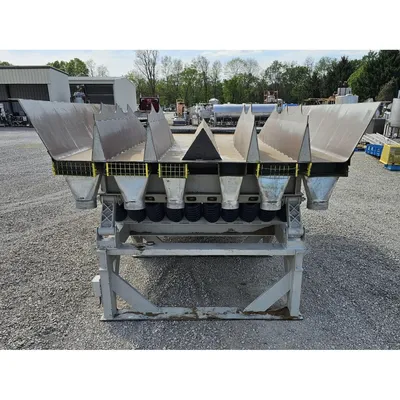

Deck Pan and Orienting Flighting constructed of abrasion resistant steel.
Height at discharge: 5'-2 ¼"

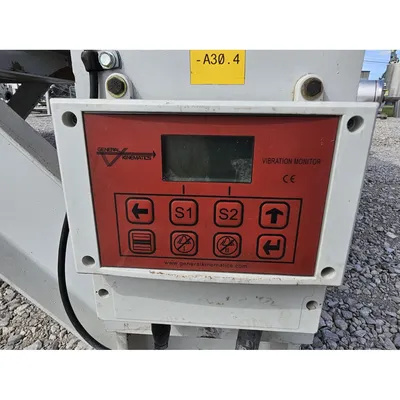

Installed with vibration monitor, accelerometer, and dust collection nozzles.
15HP V-belt drive, for hazardous duty (230/460V, 60Hz, 3ph, 36.4/18.2FLA)
General Arrangement Drawings on file.
Estimated weight ~ 9,500 LBS.

FOB: Millwood, WV 25262

Item: 21631      Model :   SCRT 96/114X18X13.5
 MFG: General Kinematics
 Width (inches): 114
