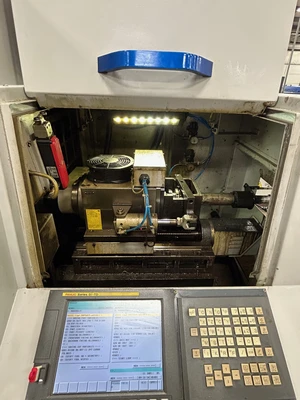

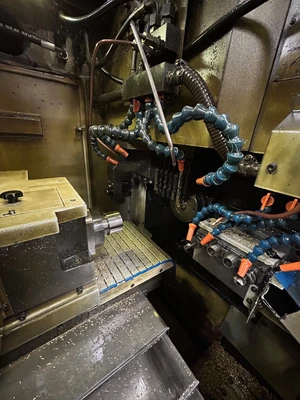

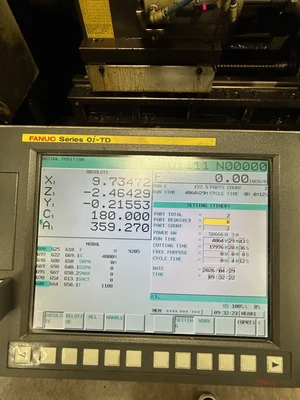

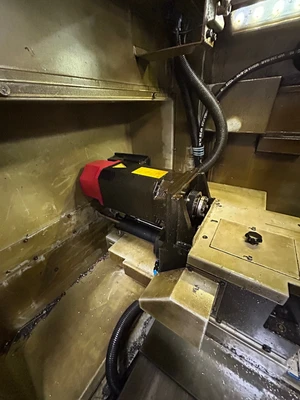

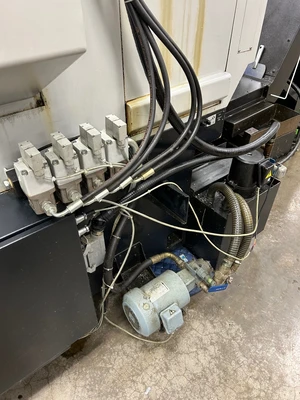

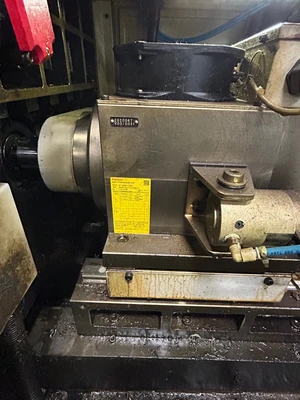

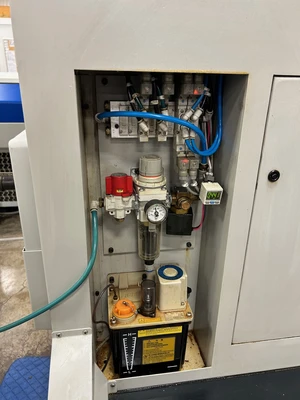

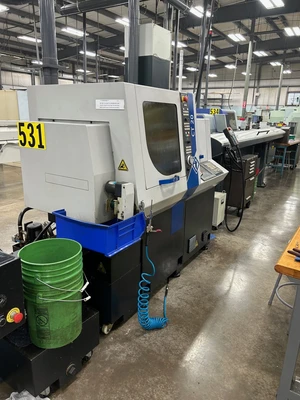

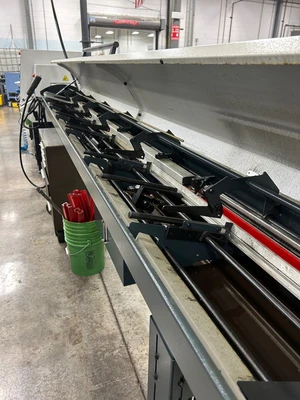

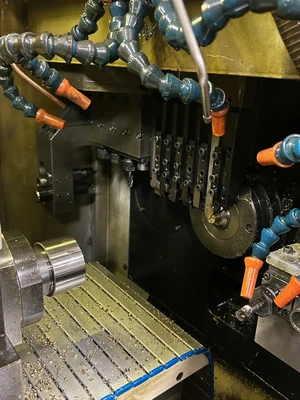

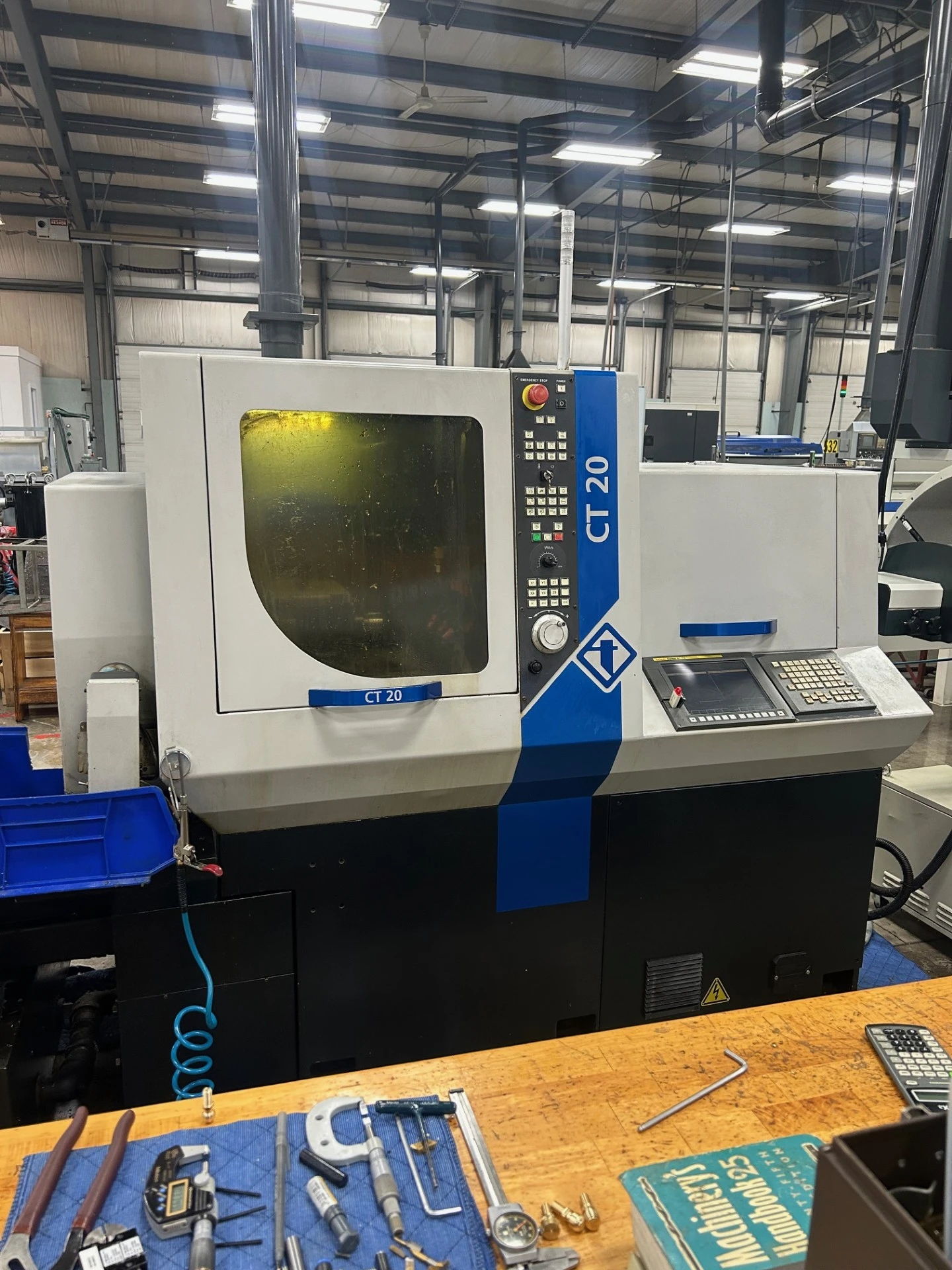

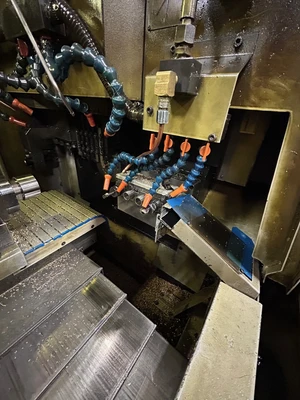

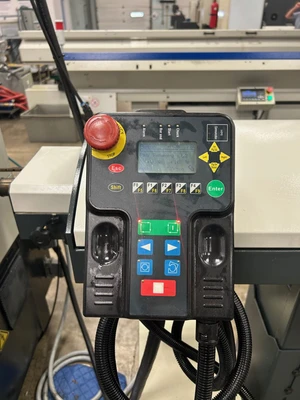

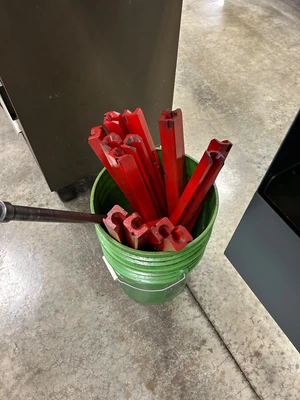

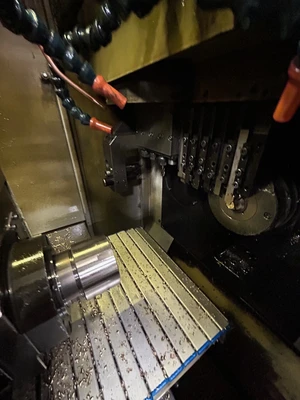

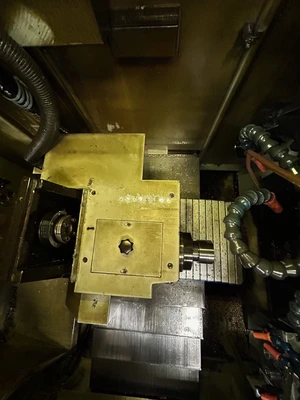

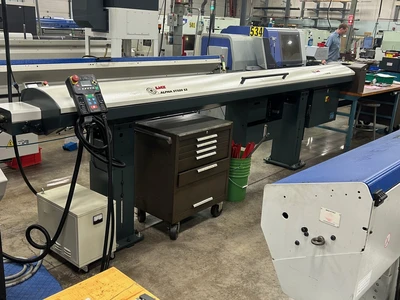

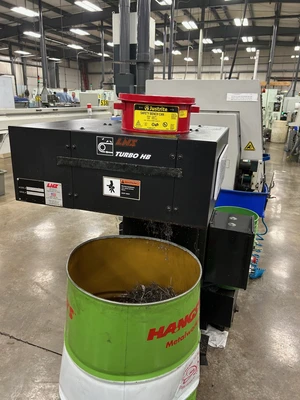

2017 Tornos CT20 CNC Swiss Machine

Main spindle
Max. bar diameter mm 20
Maximum spindle speed rpm 8,000
Spindle drive power kW 2.2 (3.7)
C-axis yes
Standard workpiece length with guide bush mm 210
Main operation (base equipment)
Max number of turning tools 6
Turning tool section 12×12
Max. drilling diameter (front/rear cutting tool) Ø 10 mm (ER 16)
Max. tapping diameter (front/rear cutting tool) M8 (ER16)
Max. radial drilling diameter Ø 7
Max. number of front tools (op/cop) 5 /(5)
Cross-rotating tools 4 max. (in base)
Cross-rotating tool speed rpm 8,000
Cross drive power capacity kW 1
Counter spindle
Max. bar diameter mm 20
Max. parts length (without rear discharge) mm 80
Ejector stroke mm 80
Maximum counter spindle speed rpm 8,000
Spindle drive power kW 1.5 (2.2)
C-axis yes
Counter operation
Max. number of tools 5
Rotating tools 5
Rotating tool speed rpm 4,000
Drive power capacity kW 0.75
TECHNICAL SPECIFICATIONS CT 20/5
Machining for main operation with back slide
Rotating tools (next to the counter spindle) 2 maximum (option)
Rotating tool speed rpm 8,000
Drive power capacity Counter spindle motor
Max. number of tools 27
Tooling breakdown in operation/ counter operation (with options) 17 /10
General specifications
Max. length mm 2,050
Max. width mm 1,270
Height mm 1,670
Weight kg 2,400
Electrical mains HZ 50/60
Power supply kVA 15
Coolant tank capacity L 210
Standard coolant pump power W 250
Subject to verification.
