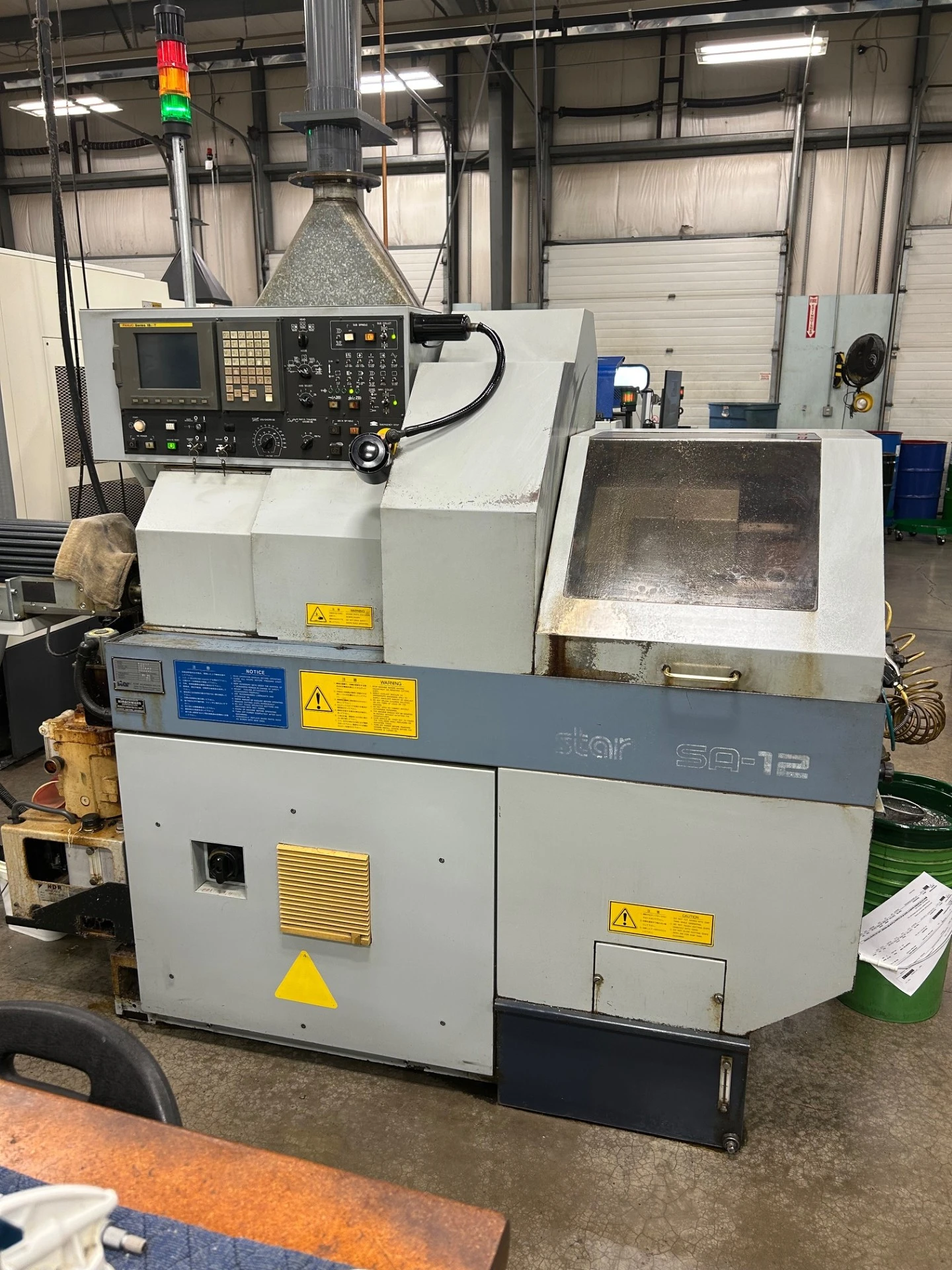

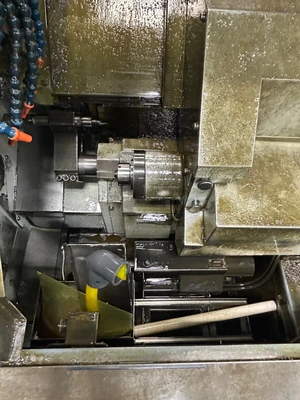

1997 Star SA-12 CNC Swiss Machine

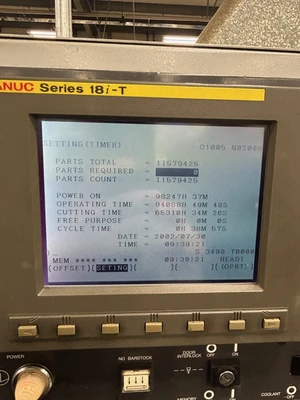

ControlFANUC Series 18i-T
Number of axis total4
Number of spindles2
Max. turning diameter16 mm
Max. drilling diameter7 mm
Max. threading diameter6 M
From500 t/min
Up to8000 t/min
Spindle power2.2 kW
C axis (spindle,resolution)15 °
Max. tapping length85 mm
Thread drill diameter3 M
Back machining workpiece length max.85 mm
Turning tools6 pce
Drilling tools2 pce
Spindle speeds (turning tools)4000 t/min
Number of tools4
Rapid traverse18 m/min
Cutting speed10000 mm/min
Voltage 50 hz 3×400 Volt
Spindle motor2.2 / 3.7 kW
Power of back spindle0.5 kW
Air connect5 bar
Total power required6 kVA
Machine’s weight about1700 kg
Length2090 mm
Width770 mm
Height1660 mm
