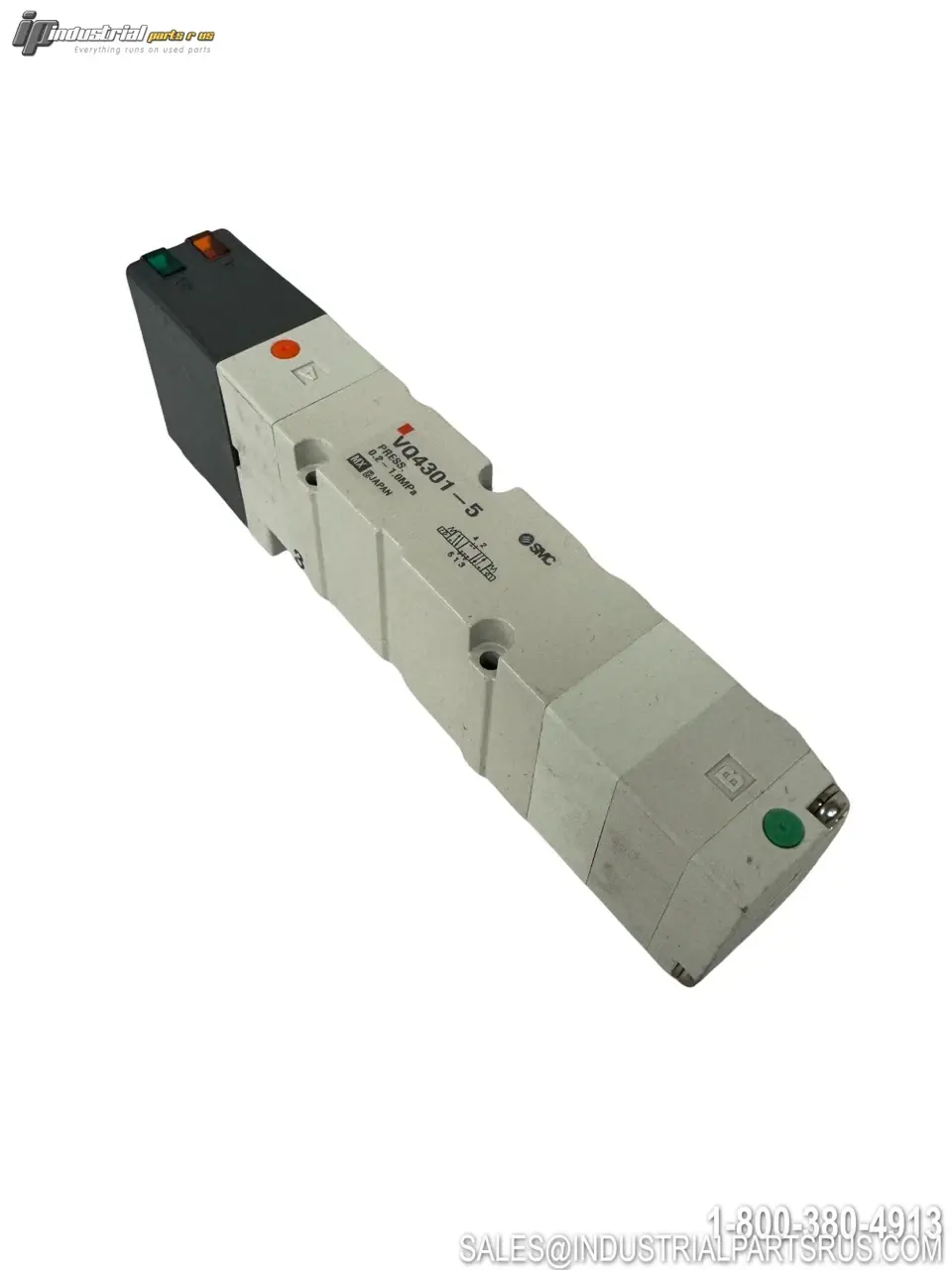

USED SMC VQ4301-5

The SMC VQ4301-5 is a 5-port solenoid valve from the VQ4000 series, designed for pneumatic applications requiring high speed, frequent operation, stable response time and long service life. This valve features innovative mounting methods that allow valves to be changed without entirely disassembling the manifold. Built-in one-touch fittings save piping time and labor during installation.
Specification
Value
Brand
SMC
Model/Part Number
VQ4301-5
Series
VQ4000
Product Family
VQ4000 Valve, SOL 4/5-Port
Valve Type
5-Port Solenoid Valve
Port Configuration
5-Port, 3-Position
Actuation Type
3-Position Closed Center
Mounting Type
Base Mounted Plug-in
Fluid Media
Air/Inert Gas
Operating Pressure Range
0.15 - 1.0 MPa
Coil Voltage Options
12VDC, 24VDC, 100VAC, 110VAC, 200VAC, 220VAC
Protection Rating
IP65
Response Time (Standard 1W)
Metal Seal: 12ms or less to 55ms or less; Rubber Seal: 15ms or less to 62ms or less
Operating Temperature
Metal Seal: -10°C to 50°C; Rubber Seal: -5°C to 50°C
Effective Area (Cv)
2-Position Metal: 36.0mm² (2.0); 2-Position Rubber: 39.6mm² (2.2); 3-Position Metal: 19.8-36.0mm² (1.1-2.0); 3-Position Rubber: 21.6-39.6mm² (1.2-2.2)
Manual Override
Non-locking Push Style
Piping Specification
Side Ported
Features
Built-in One-Touch Fittings, Light & Surge Suppressor
We warranty all items for 30 days from date of purchase.

SKU: AI1427
UPC: 679523686185
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Manufacturer: SMC
Part Number: VQ4301-5
Shelf: K-62 tub 3
Model: VQ4301-5
MPN: VQ4301-5
Type: Solenoid Valve
