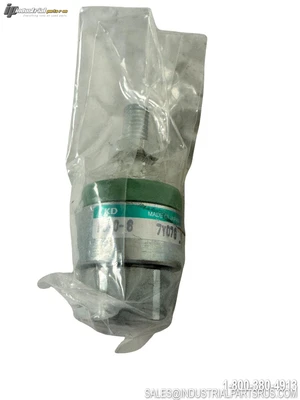

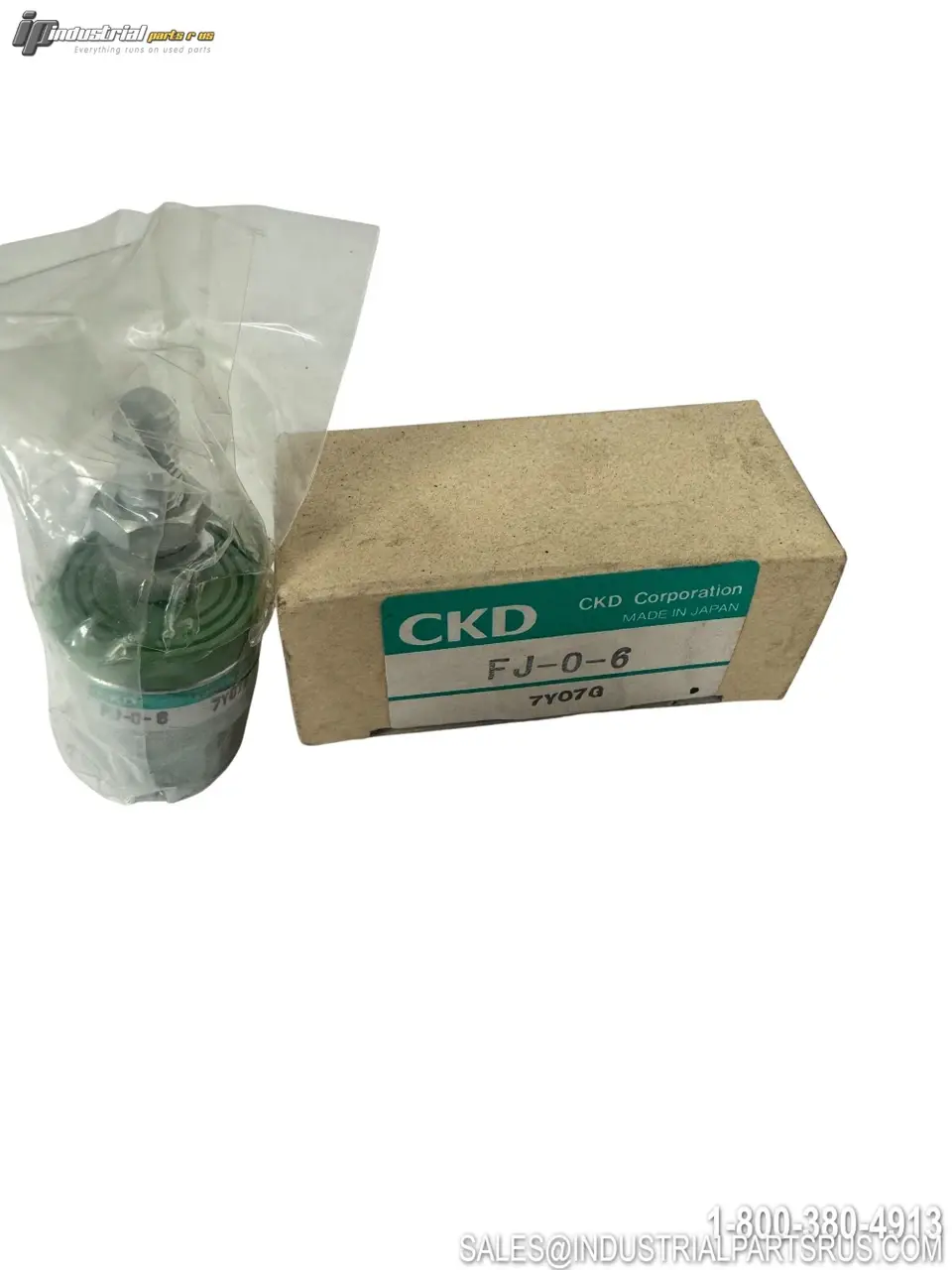

USED CKD FJ-0-6
Overview
Description
The CKD FJ-0-6 is a basic mount floating joint designed to eliminate misalignment and parallelism defects during pneumatic cylinder mounting, ensuring smooth rod actuation. This compact component features pre-filled lubrication requiring no maintenance and includes a dust cover for protection in industrial environments.
Specification
Value
Brand
CKD
Model/Part Number
FJ-0-6
Product Type
Floating Joint
Mount Type
Basic Mount
Thread Specification
M6 x 1.0
Maximum Tensile/Compression Force
1.08 kN
Allowable Eccentricity
0.75 mm
Oscillating Angle
±5 degrees
Operating Temperature Range
-10°C to +60°C
Case Material
Steel (Trivalent Chromate Treated)
Lubrication
Pre-filled, Maintenance Free
Dust Cover
Included
Application
Pneumatic Cylinder Mounting
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 1.00 LBS | 1.00 LBS |
|---|
SKU: AI1431
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: CKD
Part Number: FJ-0-6
Shelf: GS-12
Model: FJ-0-6
MPN: FJ-0-6
Type: Pneumatic Valve
