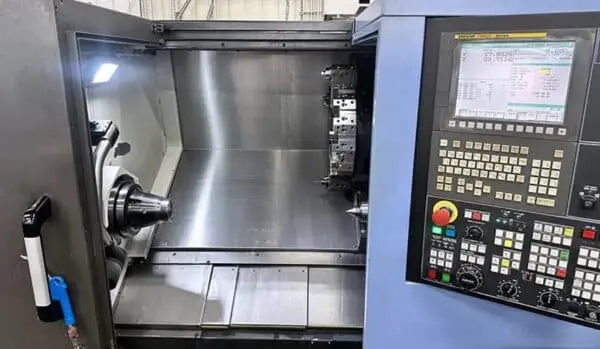

Doosan Puma GT2600 – 2015

Doosan Puma GT2600 CNC Lathe
Specification

SWING OVER BED 24.8″

SWING OVER CARRIAGE 18.1″

MAX TURNING DIAMETER 18.1″

MAX TURNING LENGTH 25.9″

DISTANCE BETWEEN CENTERS 33.2″

SPEED RANGE 35 – 3,500 RPM

SPINDLE NOSE A2-8

SPINDLE BORE 3.58″

BAR CAPACITY ~3.23″

CHUCK SIZE 10″

SPINDLE MOTOR 30 HP

MAX TORQUE ~459 ft-lbs

X-AXIS TRAVEL 10.43″

Z-AXIS TRAVEL 26.8″

RAPID RATES X 945 ipm

RAPID RATES Z 1,181 ipm

POWER REQUIREMENT ~39 kVA

WEIGHT ~10,364 lbs
Option / equipped with

Fanuc i-Series

LNS Turbo HB chip conveyor

Programmable hydraulic tailstock

10″ Samchully 3-jaw chuck

Tool setter

Enclosed guarding

Standard coolant system

12-station turret

Collet Chuck
